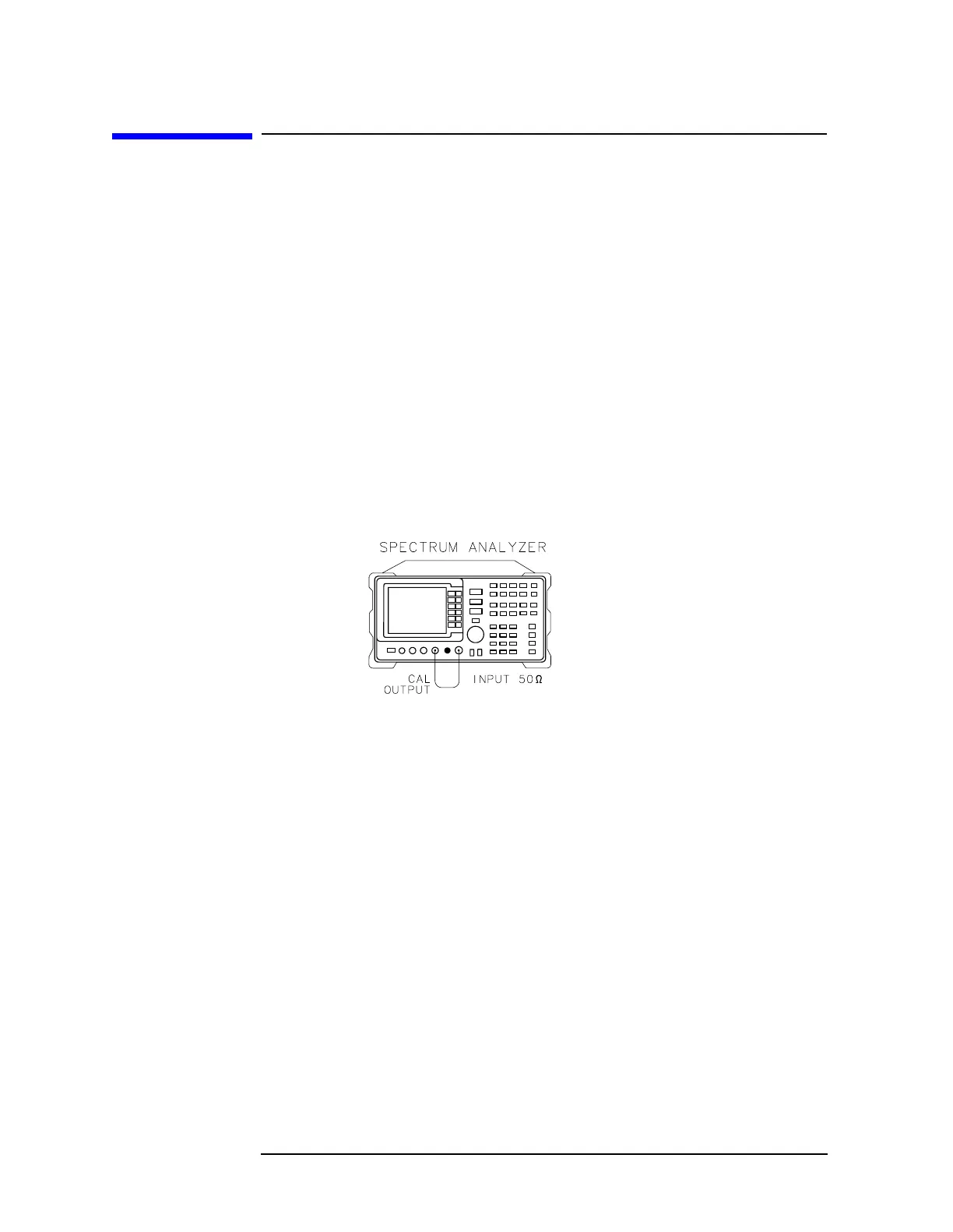

Recommended Test Equipment
Power sensor Frequency range: 50 MHz to 50 GHz 8487A P,V
Maximum SWR:
1.15 (50 to 100 MHz)
1.10 (100 MHz to 2 GHz)
1.15 (2.0 to 12.4 GHz)
1.20 (12.4 to 18 GHz)
1.25 (18 to 26.5 GHz)
1.30 (26.5 to 40 GHz)
1.50 (40 to 50 GHz)
Other Equipment
Controller Required to run operation verification
software and adjustment/diagnostic software
(8564EC and 8565EC)
9816A, V
9836A/C,
310, 320
332, 360
Oscilloscope Bandwidth (3 dB): dc to 100 MHz 54501A* P,A,T
Two channels
Minimum vertical deflection factor: ≤5 mV/div
Minimum timebase setting: <100 ns
Digitizing display with time cursors
Delta-t cursor accuracy in 500 ns/Div: <0.1 µs
Amplifier Frequency range: 11975 P
8564EC, 2.0 to 8.0 GHz
8565EC, 2.0 to 8.0 GHz
Minimum output power (leveled)
2.0 to 8.0 GHz: +16 dBm
Output SWR (leveled): <1.7
Power supply Output voltage: ≥24 Vdc 6114A A
Output voltage accuracy: <±0.2 V
Signature multimeter Clock frequency >10 MHz 5005A/B T
Time interval function
Table 1-4 Recommended Test Equipment
