4-14
Printing, Plotting, and Saving Measurement Results
Configuring a Plot Function

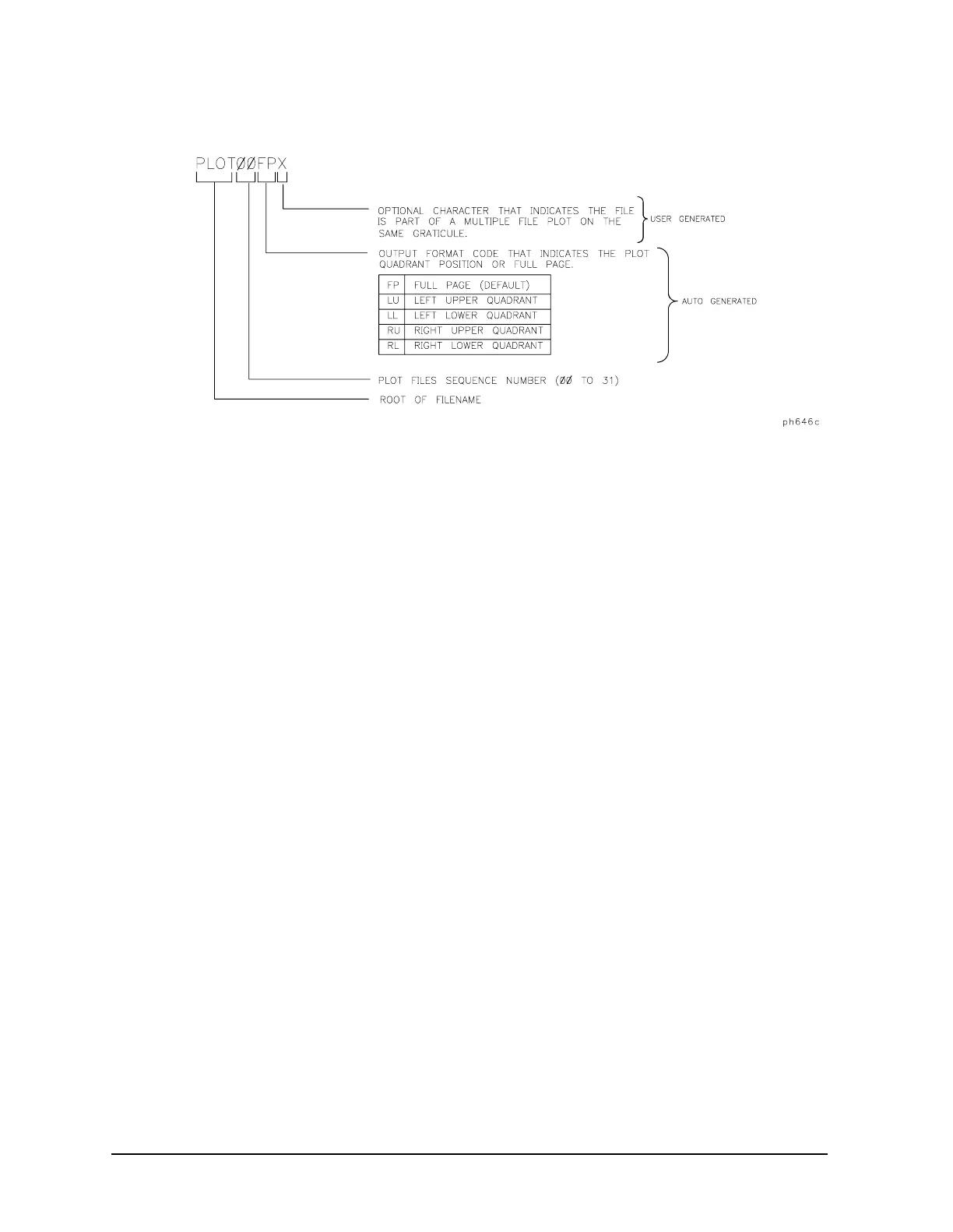

Figure 4-4 Automatic File Naming Convention for LIF Format
To Output the Plot Files
• You can plot the files to a plotter from a personal computer.
• You can output your plot files to an HPGL compatible printer, by following the sequence
in "Outputting Plot Files from a PC to an HPGL Compatible Printer" on page 4-25.
• You can run a program that plots all of the files, with the root filename of PLOT, to an
HPGL compatible printer. This program is provided on the CD-ROM of example
programs that is included in the programmer’s guide. However, this program is for use
with LIF formatted disks and is written in HP BASIC.
