Agilent Technologies 8719ES

7-25
Operating Concepts
Analyzer Display Formats

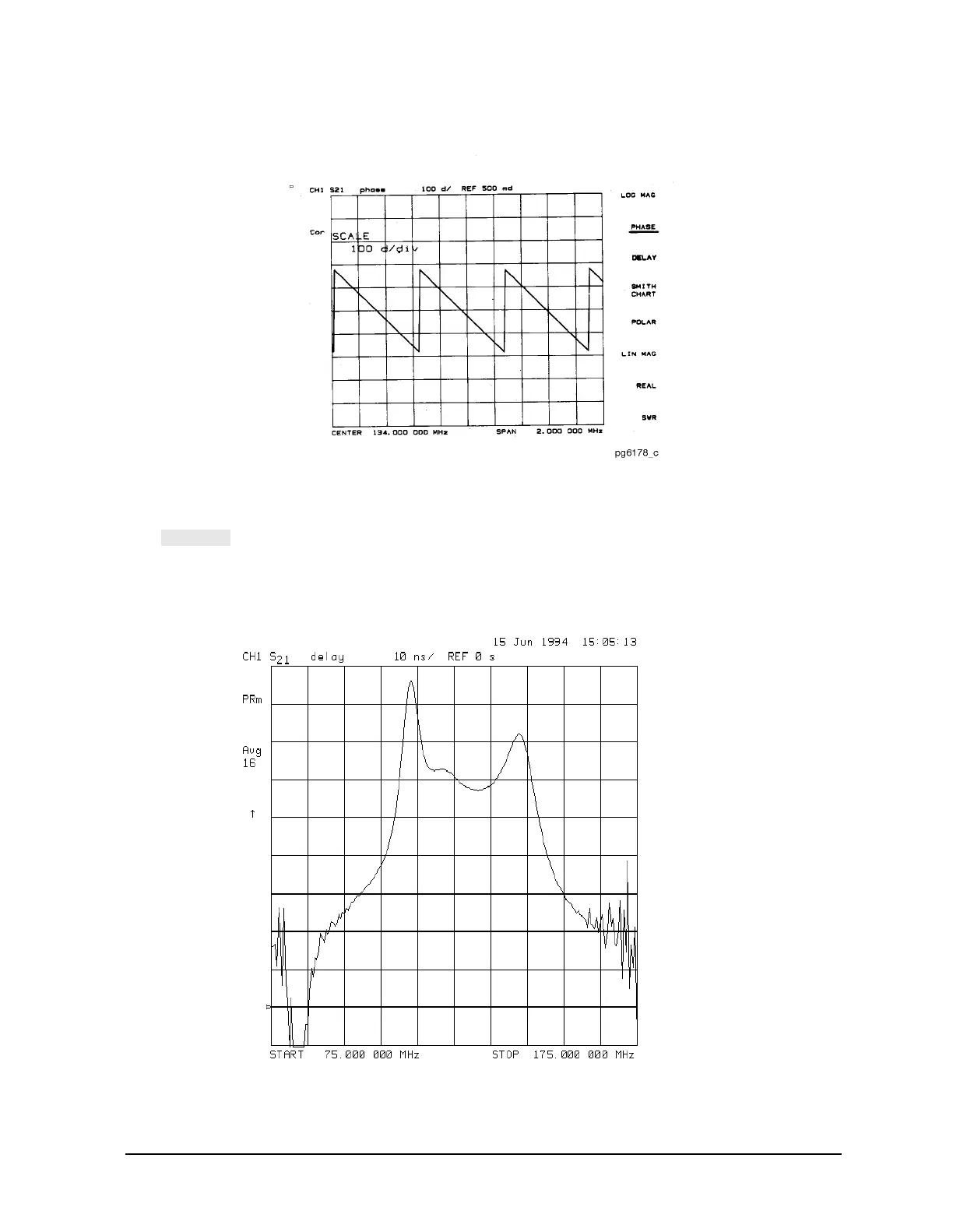

Figure 7-7 Phase Format
Group Delay Format
The softkey selects the group delay format, with marker values given in seconds.
The bandpass filter response formatted as group delay is shown in Figure 7-8. Group delay
principles are described in the next few pages.
Figure 7-8 Group Delay Format
DELAY
