Agilent Technologies 8720ES Manual Supplement

1-29
Supplement for the User’s Guide (Firmware Version 7.66)
Conversion Loss Using the Frequency Offset Mode
Performing the R-Channel Measurement
1. Connect the equipment as shown in Figure 1-22 (or Figure 1-23).

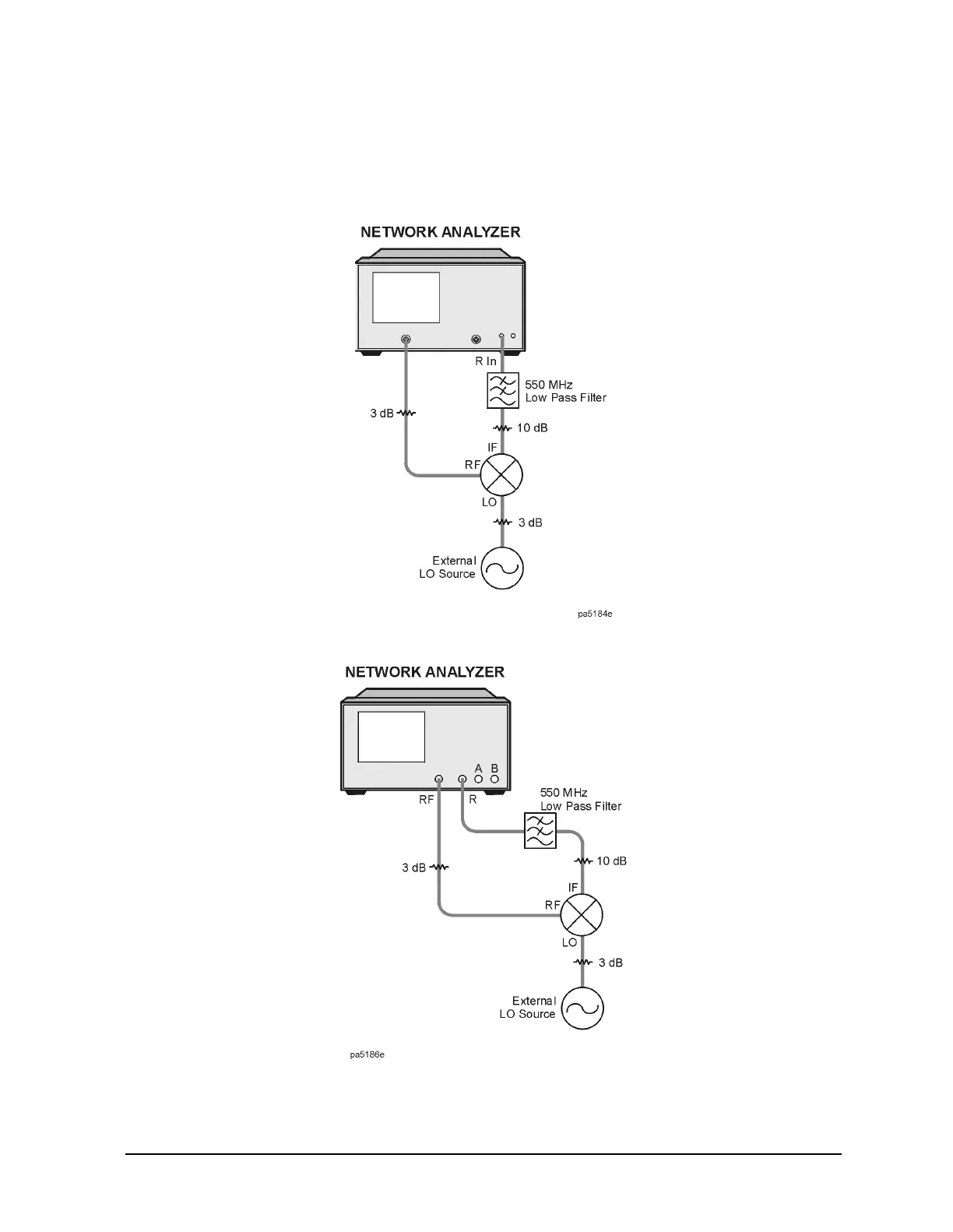

Figure 1-22 8753ET/ES R-Channel Mixer Measurement Equipment Setup
Figure 1-23 8753ES Option 011 R-Channel Mixer Measurement Equipment Setup
The analyzer is now displaying the conversion loss of the mixer calibrated with power
meter accuracy.
