Chapter 1 1-5

Installing Your Analyzer

STEP 2. Familiarize Yourself with the Analyzer Front and Rear Panels

STEP 2. Familiarize Yourself with the Analyzer Front and

Rear Panels

Analyzer Front Panel

CAUTION Do not mistake the line switch for the disk eject button. See the ﬁgure below. If the

line switch is mistakenly pushed, the instrument will be turned off, losing all settings

and data that have not been saved.

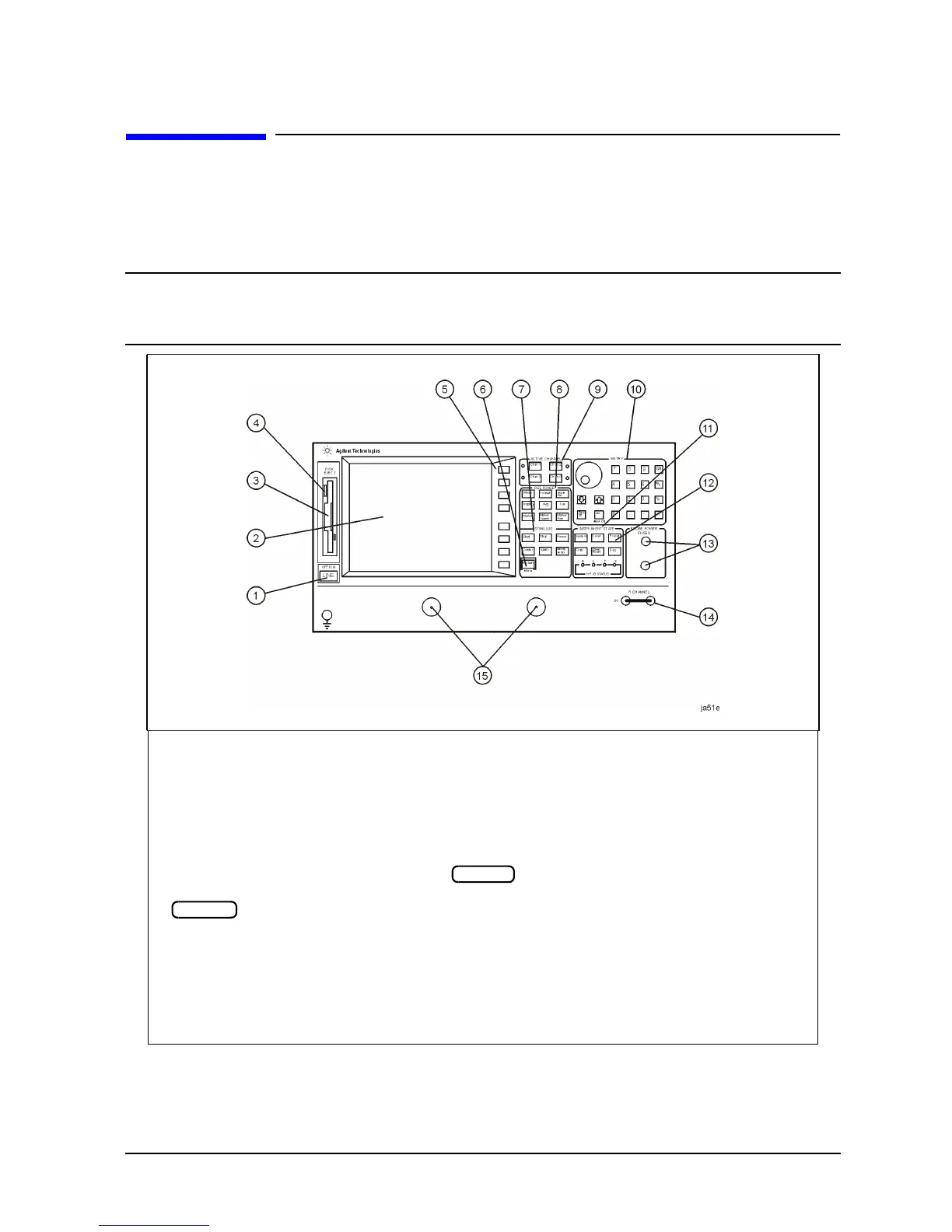

1 LINE (power on/off) switch 8 RESPONSE function block

2 Display 9 ACTIVE CHANNEL keys

3 Disk drive 10 ENTRY block

4 Disk eject button 11 INSTRUMENT STATE function block

5 Softkeys

12 key

6 key

13 PROBE POWER connectors

7 STIMULUS function block 14 R CHANNEL connectors

15 ES models only:

PORT 1

and

PORT 2

ET models only:

REFLECTION

and

TRANSMISSION

Preset

Return
