Agilent Technologies 8753ET Installation And Quick Start Guide

Chapter 1 1-25
Installing Your Analyzer
STEP 5. Verify the Analyzer Operation
To Test the Reflection Mode

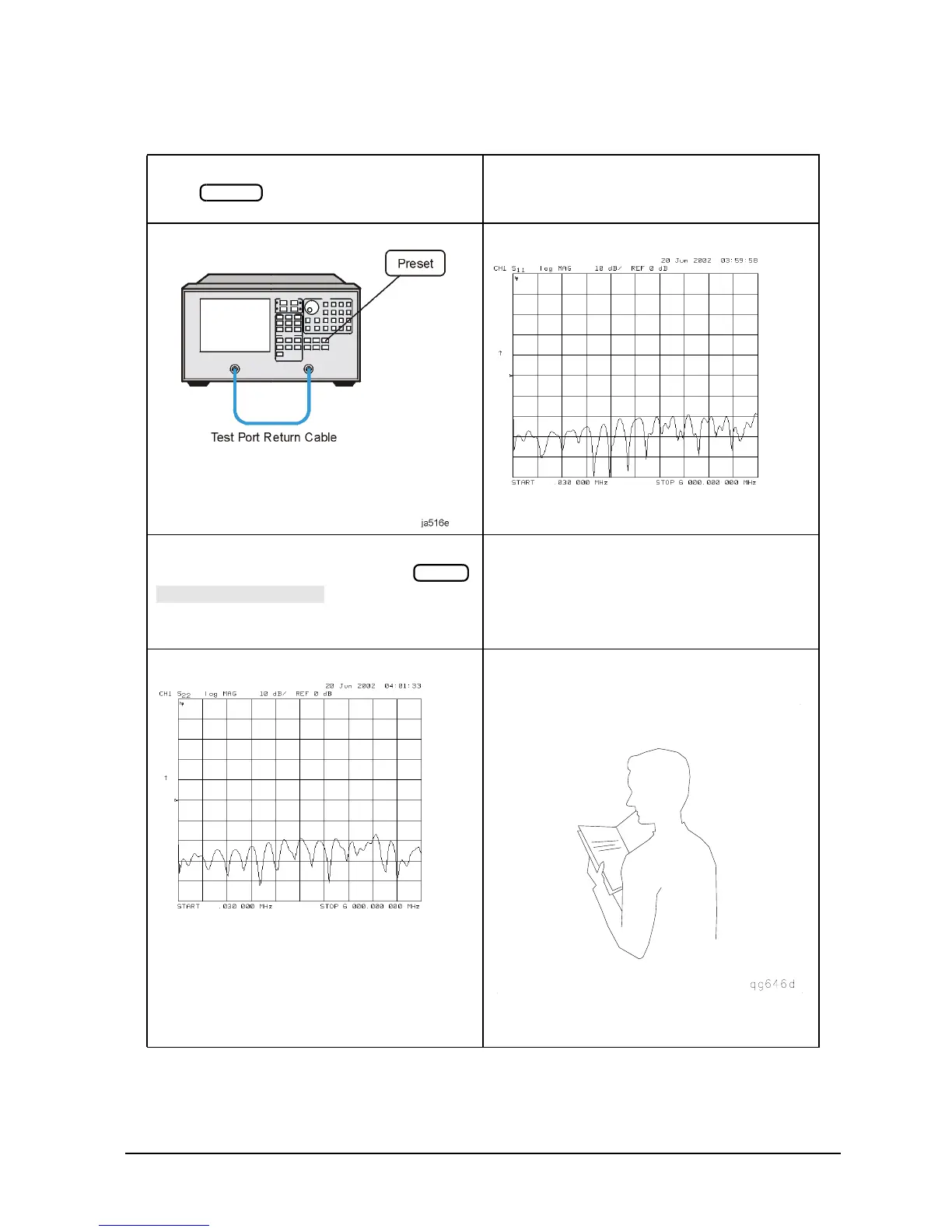

1. Connect the equipment as shown and
press .
2. Look at the measurement trace displayed
on the analyzer. It should be similar to the
trace below.
3. ES models only: To check the reverse
reflection mode for channel 1, press
. The measurement
trace should be similar to the trace shown
below.
4. If you are ready to start making
measurements, continue with the next
chapter, “Quick Start: Learning How to
Make Measurements.”
Preset
Meas
Refl: REV S22 (B/R)
