STEP 3. Meet Electrical and Environmental Requirements
STEP 3. Meet Electrical and Environmental Requirements

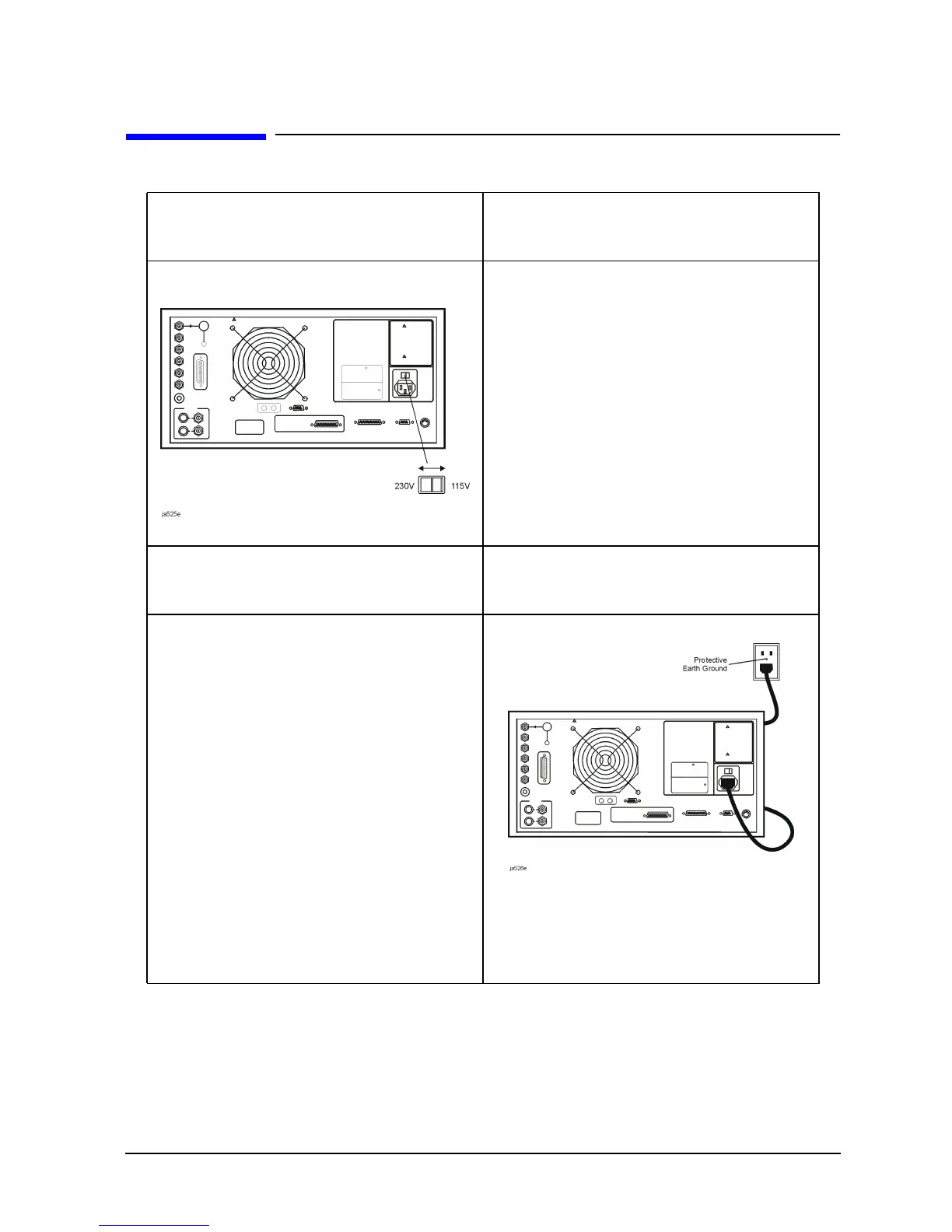

1. Set the line-voltage selector to the
position that corresponds to the AC power
source.
2. Ensure the available AC power source
meets the following requirements:
• 90–132 VAC
• 47–66 Hz / 400 Hz (single phase)
OR
• 198–265 VAC
• 47–66 Hz (single phase)
The analyzer power consumption is 350 VA
maximum.
3. Ensure the operating environment meets
the following requirements:
4. Verify that the power cable is not
damaged, and that the power-source outlet
provides a protective earth contact.
• 0 to 55 °C
• < 95% relative humidity at 40 °C
(non-condensing)
• < 15,000 feet (≈ 4,500 meters) altitude
Some analyzer performance parameters are
specified for 25 °C ±5 °C. Refer to the
Reference Guide for information on the
environmental compatibility of warranted
performance.
WARNING: Any interruption of the
protective (grounding) conductor or
disconnection of the protective earth
terminal, can result in personal injury,
or may damage the analyzer.
