1-6 Chapter1
Installing Your Analyzer
STEP 2. Familiarize Yourself with the Analyzer Front and Rear Panels

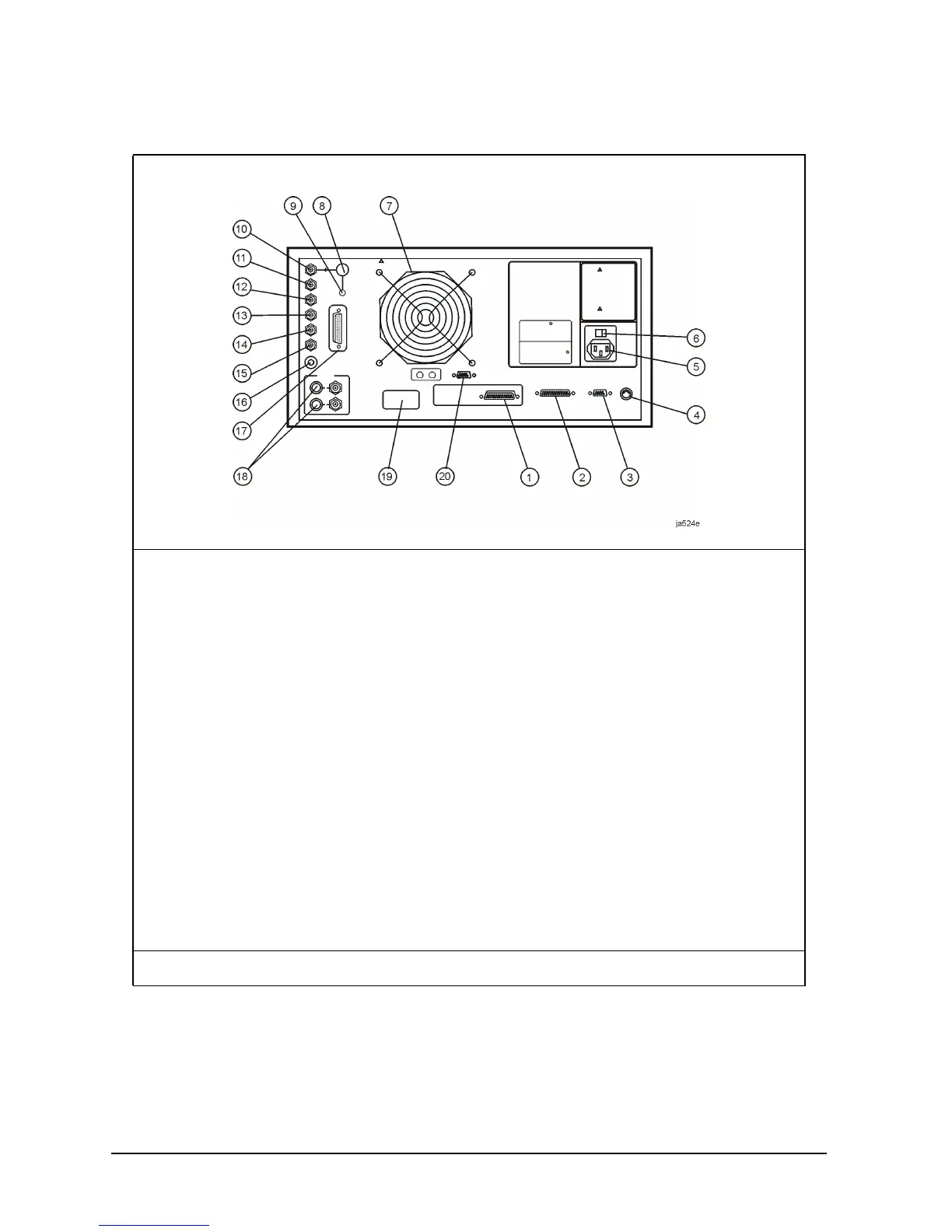

Analyzer Rear Panel
1 GPIB connector 11 AUXILIARY INPUT connector
2 PARALLEL interface 12 EXTERNAL AM connector
3 RS-232 interface 13 EXTERNAL TRIGGER connector
4 KEYBOARD input
(mini-DIN) 14 TEST SEQUENCE
5 Power cord receptacle,
with fuse 15 LIMIT TEST
6 Line voltage selector switch 16 MEASURE RESTART
7 Fan 17 TEST SET I/O INTERCONNECT
8 10 MHZ PRECISION
REFERENCE OUTPUT* 18 BIAS INPUTS AND FUSES
9 10 MHZ REFERENCE
ADJUST* 19 Serial number plate
10 EXTERNAL REFERENCE
INPUT connector 20 EXTERNAL MONITOR: VGA
*
Option 1D5 only.
