Module 8
Capacitance Measurement
8-7

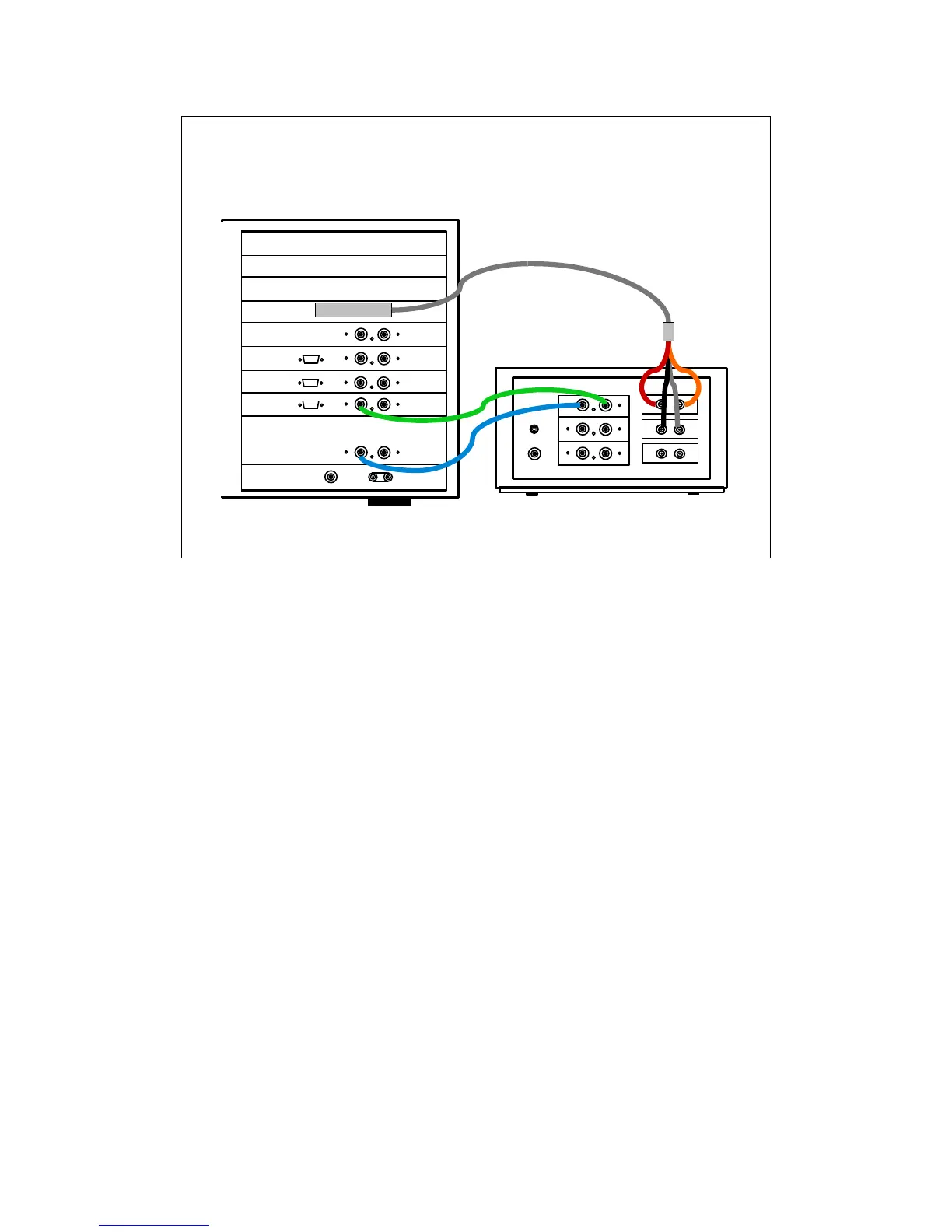

16442A/B Fixture
B1500A Rear View
SMU4
SMU3
SMU2
SMU1
CMU
GNDU
Cable Connections
The following cables are required to perform this class exercise.
CMU cable (Agilent N1300A-001/002), 1 ea.
Triax cable (Agilent 16494A-001/002), 2 ea.
One side of the CMU cable forms the attachment used to join and fix it to the CMU. And the other
side provides four BNC connectors used to connect the fixture as shown.
Connect the cables between the B1500A and the test fixture as follows.
SMU1 : SMU1
SMU2 : SMU2
Hcur : PGU1 (red)
Hpot : PGU2 (orange)
Lcur : VSU1 (black)
Lpot : VSU2 (gray)
To Next Page
