Installation
Cary 100/300/4000/5000/6000i/7000 Spectrophotometers User’s Guide 33

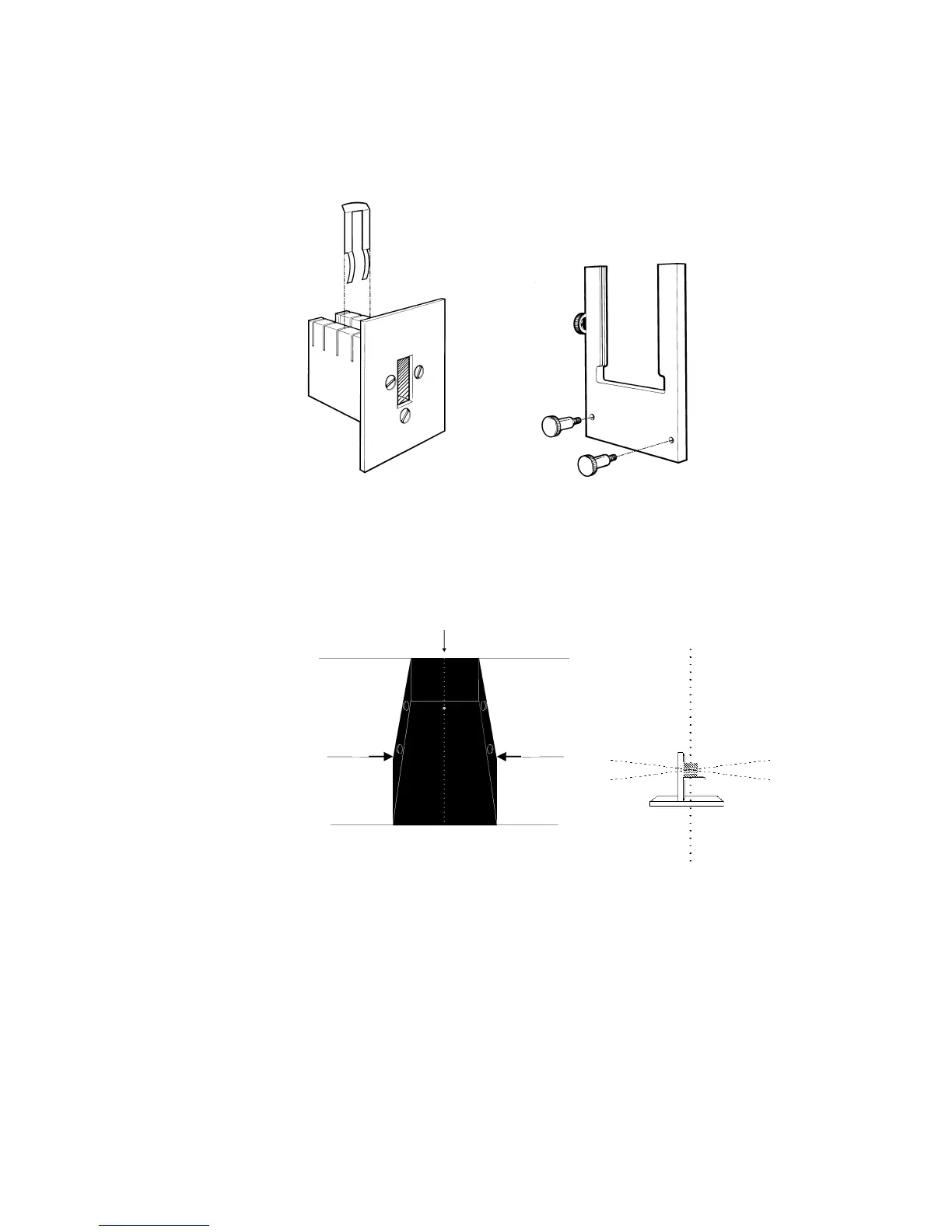

Figure 9. Optional accessories for the solid sample holder. Variable pathlength
cell holder (left) and side mounted slide (right)
Position the sample so that the center of the sample sits in the center
of the sample compartment (see Figure 10). The sample should be
horizontally and vertically centered.
Figure 10. Aligning the sample in the sample compartment. Left: Sample
compartment from above. The dotted line indicates the middle of the
compartment. Right: Middle of the sample compartment when viewed from the
side
