Agilent Technologies Cary 600 Series User Manual

Unpacking and Installation
Agilent Cary 600 Series FTIR Spectrometers and Microscopes User’s Guide 33

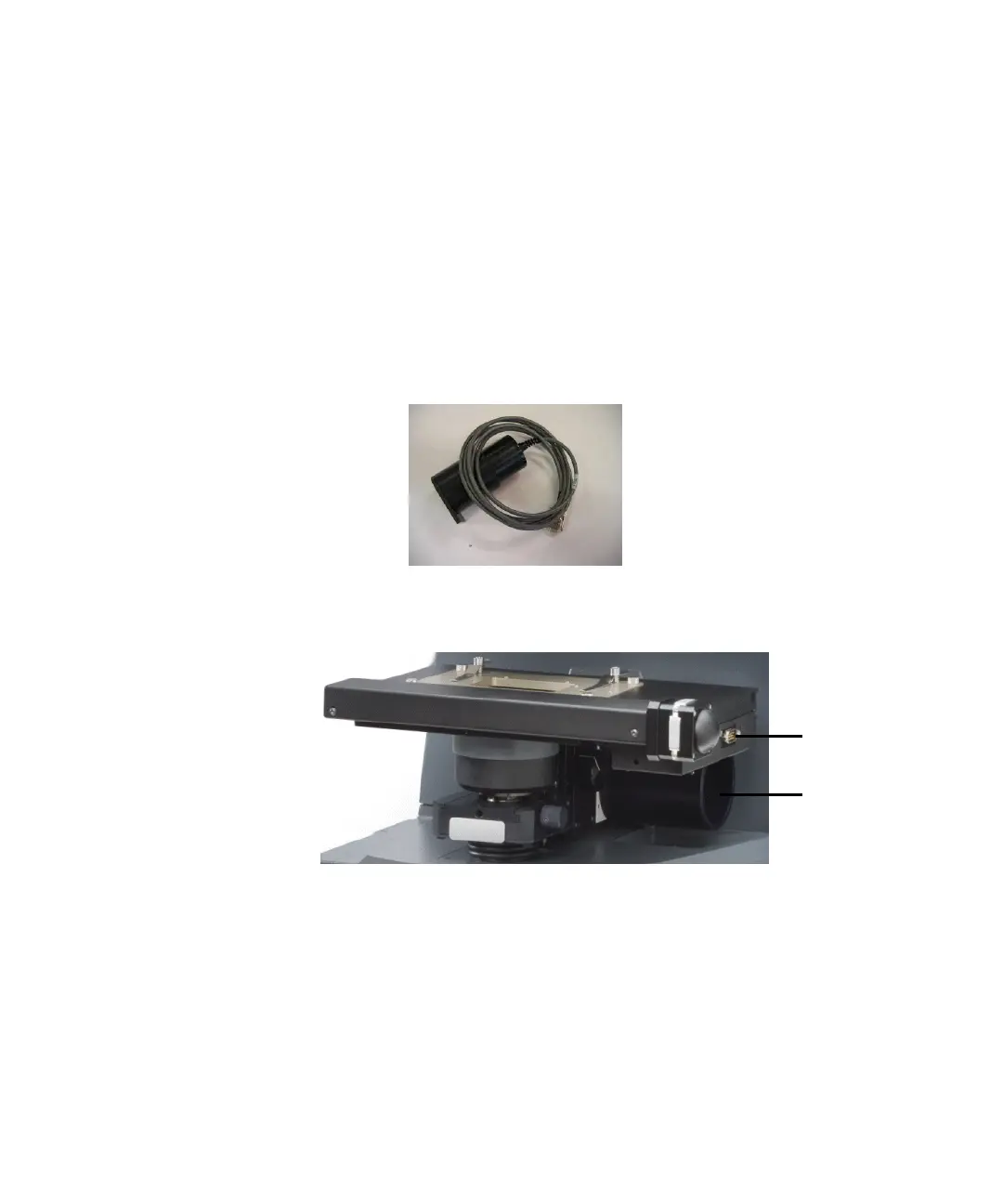

The connectors are, from left to right:
RS-232 Connect to a RS-232A serial port on the computer using a RS-232 serial
cable
Power Connects to the power transformer
USB Currently not used
Joystick Connects to the joystick.
Z Connects to the Z-axis motor used to control the stage height (see 2 on
Figure 12) using the cable shown below
Stage Connects to the X/Y stepping motors on the right side of the stage (see 1
on Figure 12)
Figure 12. Motorized stage connections
Where:
1 X/Y stage control
2 Z stage control
1
2
