Unpacking and Installation
32 Agilent Cary 600 Series FTIR Spectrometers and Microscopes User’s Guide

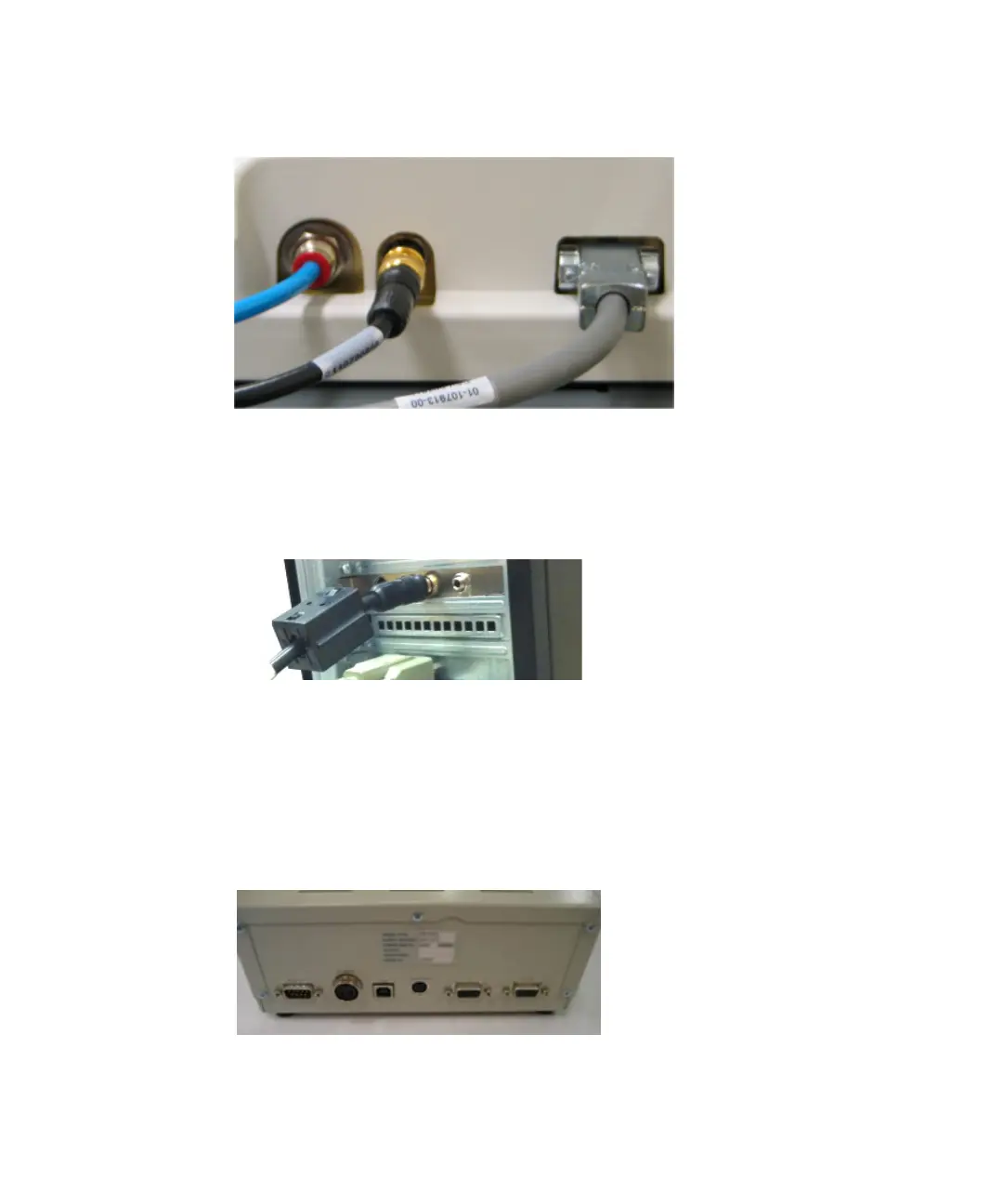

Figure 9. Upper rear connectors on the microscope. Left to right: Purge fitting to
gas supply; Video out to video capture card installed in the computer;
Microscope to spectrometer EXT DET 1 or EXT DET 2 connection (see Figure 8).
5 Connect the ‘Video out’ connector to the back of the microscope
and then to the video capture card installed in the computer.
Figure 10. Video capture card (installed in PC) with ‘Video out’ cable connected
6 Connect the ‘Detector out’ cable to the back of the microscope
and then to the EXT DET 1 or EXT DET 2 spectrometer
penthouse connector.
Connecting the motorized stage cables
There are six connectors on the rear of the stage controller.
Figure 11. Motorized stage controller connections
