Operation
Agilent Cary 600 Series FTIR Spectrometers and Microscopes User’s Guide 41
To open or close the microscope shutter:
1 Look directly at the front of the microscope.
2 Gently pull the black handle between the right side of the
microscope and spectrometer towards you.

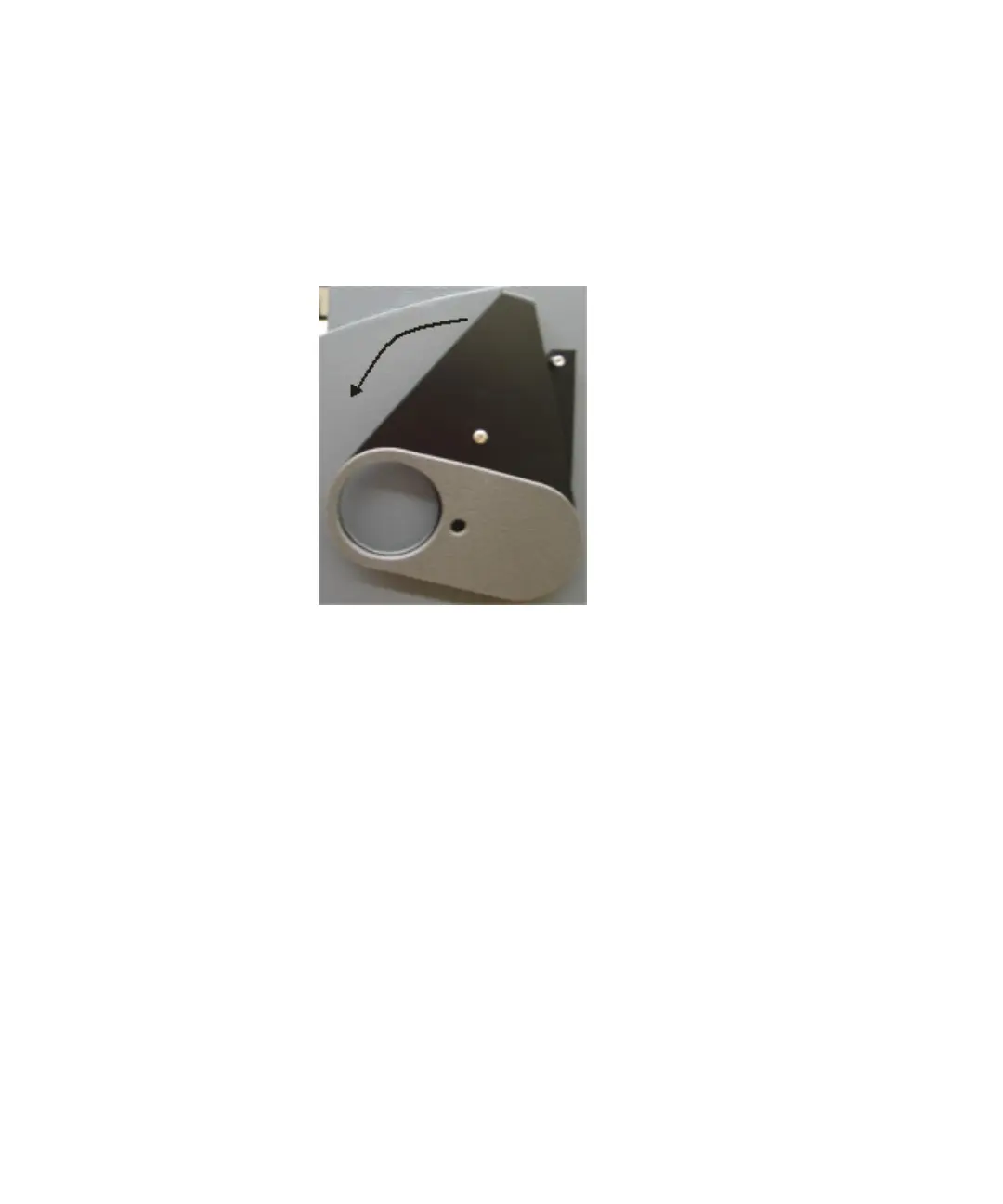

Figure 15. Side view of closed shutter and handle
3 To close the shutter, gently push the black lever away from you.
Accessing the Help
To access the Resolutions Pro Help:
1 Start the Resolutions Pro software.
2 Press F1 on the keyboard to display the Help.
3 Click the Contents tab if necessary.
4 Click the plus (+) icon next to ‘Software’ to expand it.
5 Click the plus (+) icon next to ‘Software How To’ to expand it.
6 For collect information, highlight ‘Perform a Collect’ and click
the links for the required information or highlight ‘Collecting
Microscope Data’ or ‘Microscope Mapping Data’ for information
on using the microscope to collect data.
