Installation Note E4406-90278 5
Installation Procedure
Installation Procedure
Step 1. Remove the Outer Case
CAUTION If the instrument is placed on its face during any of the following procedures, be
sure to use a soft surface or soft cloth to avoid damage to the front panel, keys, or
input connector.
1. Disconnect the instrument from ac power.
2. There are two handles on the sides of the instrument that must be taken off. Refer to Figure 2.
Using the T-20 driver, loosen the screws that attach each handle (1). Remove the handles.
3. Remove the four bottom feet (2). This is done by lifting up on the tabs on the feet, and sliding the
feet in the direction indicated by the arrows.
4. Using the T-20 driver, remove the four screws (3) that hold the rear feet (4) in place.
5. Pull the instrument cover (5) off toward the rear of the instrument.

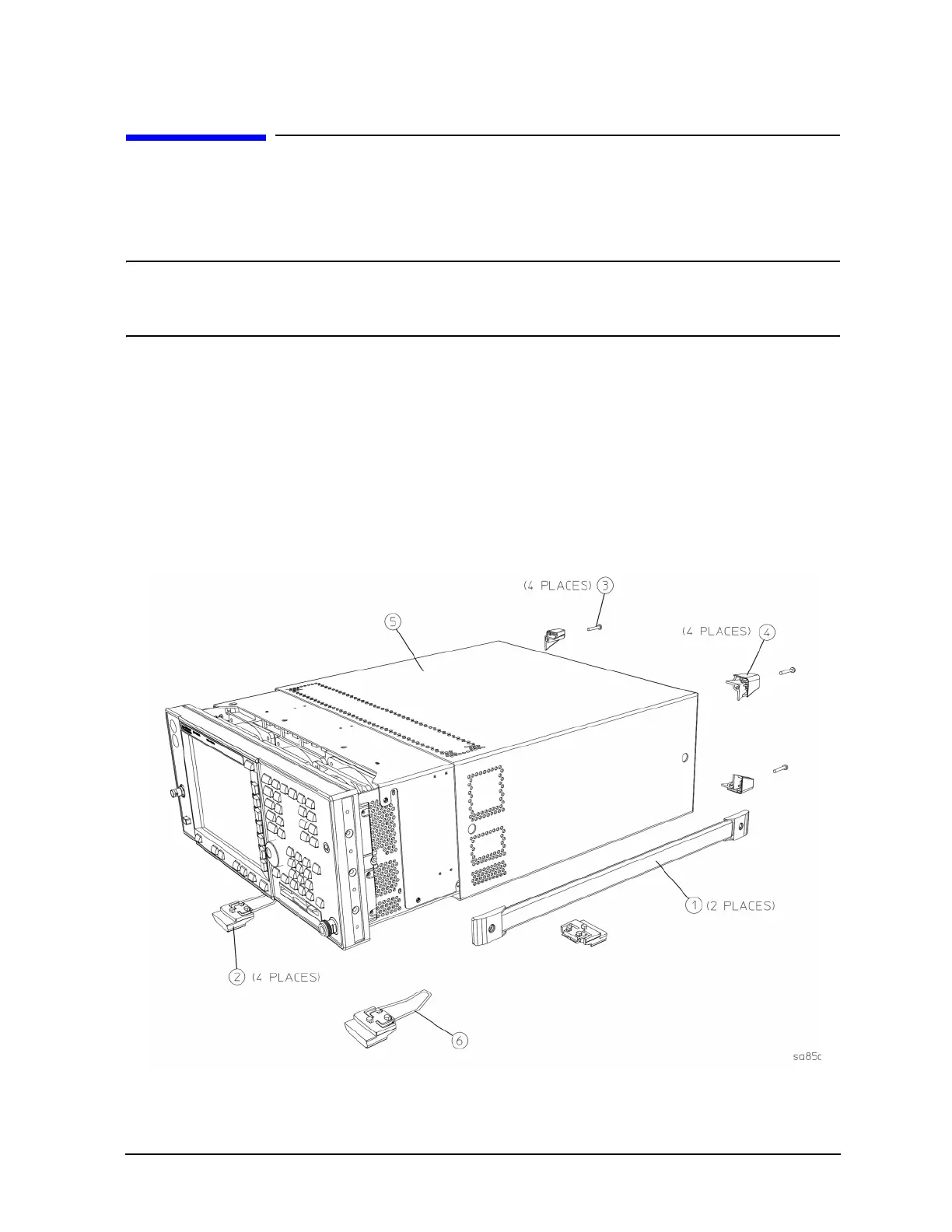

Figure 2 Instrument Outer Case Removal
