30
www.agilent.com/find/esg
Step 3 Configure the ESG

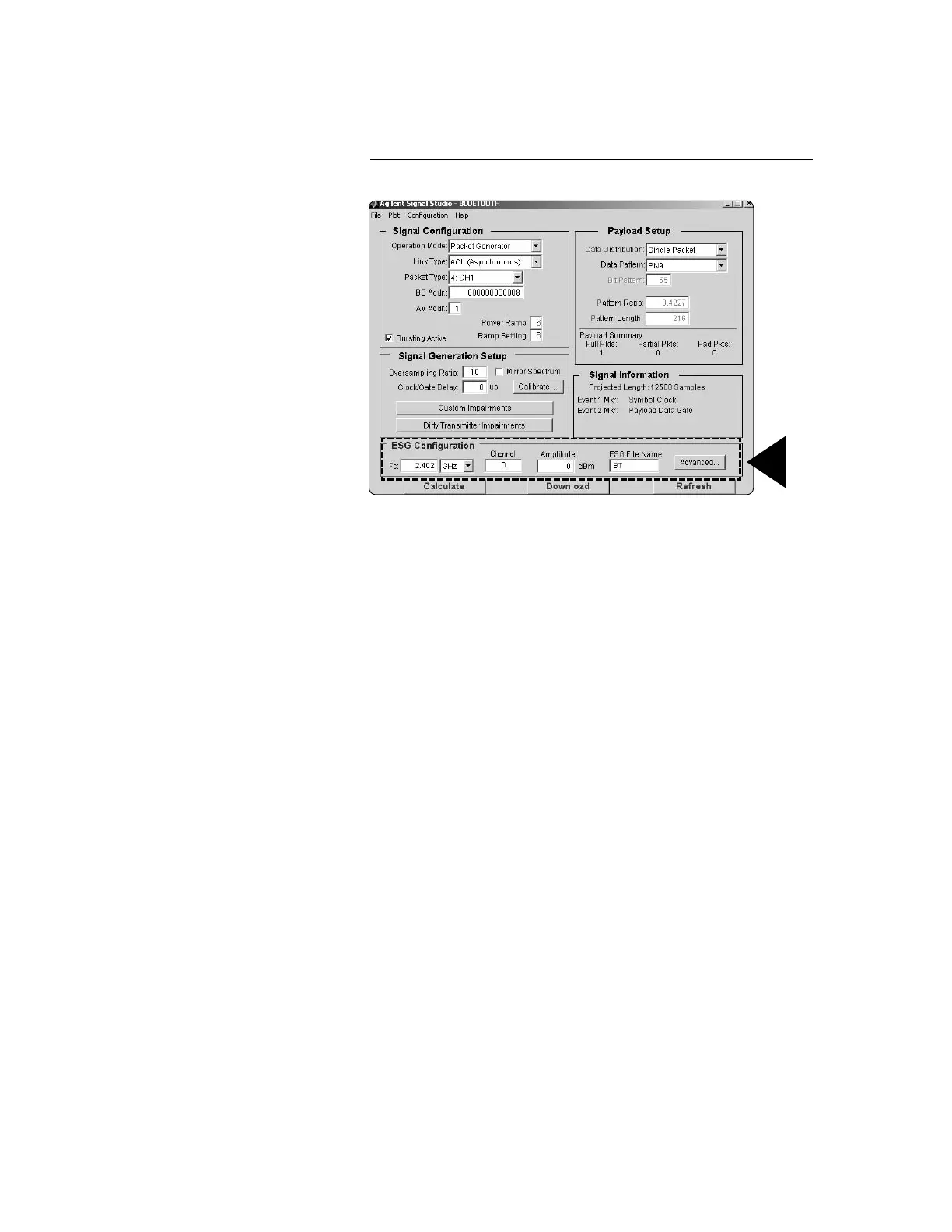

Figure 34. ESG Configuration menu.
In addition to the configured Bluetooth waveform, the Signal Studio software passes
instrument settings to the ESG. These are defined in the ESG Configuration menu, boxed
in Figure 34.
Basic settings
There are three fundamental ESG settings that must be defined prior to downloading the
waveform to the instrument.
Frequency
This field is used to set the frequency at which the ESG will generate the signal.
Amplitude
This field is used to set the power at which the ESG will generate the signal.
Channel
Selects RF carrier frequency from the channel number.
Waveform name
The alphanumeric text entered in the name field will appear in the ESG user interface
after the waveform file is downloaded to the instrument. The ESG only recognizes
waveforms that are named using the following alphanumeric characters:
• A thru Z
• 0 thru 9
• $ & _ # + - [ ]
If un-supported alphanumeric characters are used to name the waveform, the ESG will
generate a file name not found error (Error: -256) when the waveform is downloaded to
the instrument. There is a 20-character maximum name length for waveform files.
