Chapter 2 39
Instrument Functions: A - L
AMPLITUDE / Y Scale
Instrument Functions: A - L
Key Path: AMPLITUDE / Y Scale
Dependencies/

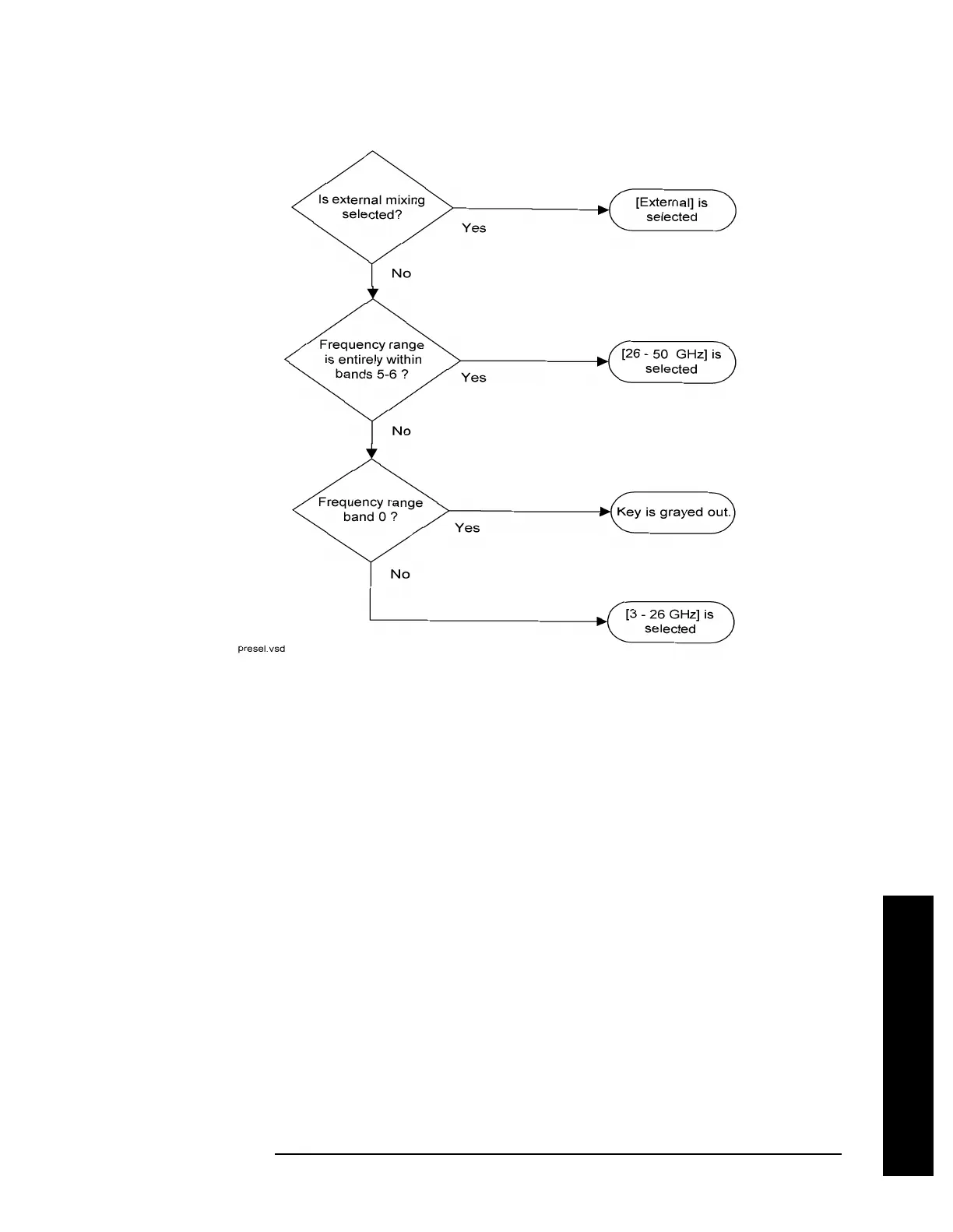

Couplings: This function is not available (grayed out) if:
• the microwave preselector is off. (See Input/Output, Microwave
Preselector
.)
• external mixing is selected and Mixer Type is unpreselected.
• the frequency range is entirely within band 0 (0 Hz to ~3.05 GHz).
State Saved: Saved in Instrument State
Factory Preset: 3 - 26 GHz, 0.0 Hz
Range: –500 MHz to 500 MHz
History:
Updated in revision A.06.00.
