9 Identifying Cables
Analog Cables
Analog Cables
One end of these cables provides a BNC connector to be connected to
Agilent 1100/1200 Series modules. The other end depends on the instrument
to which connection is being made.

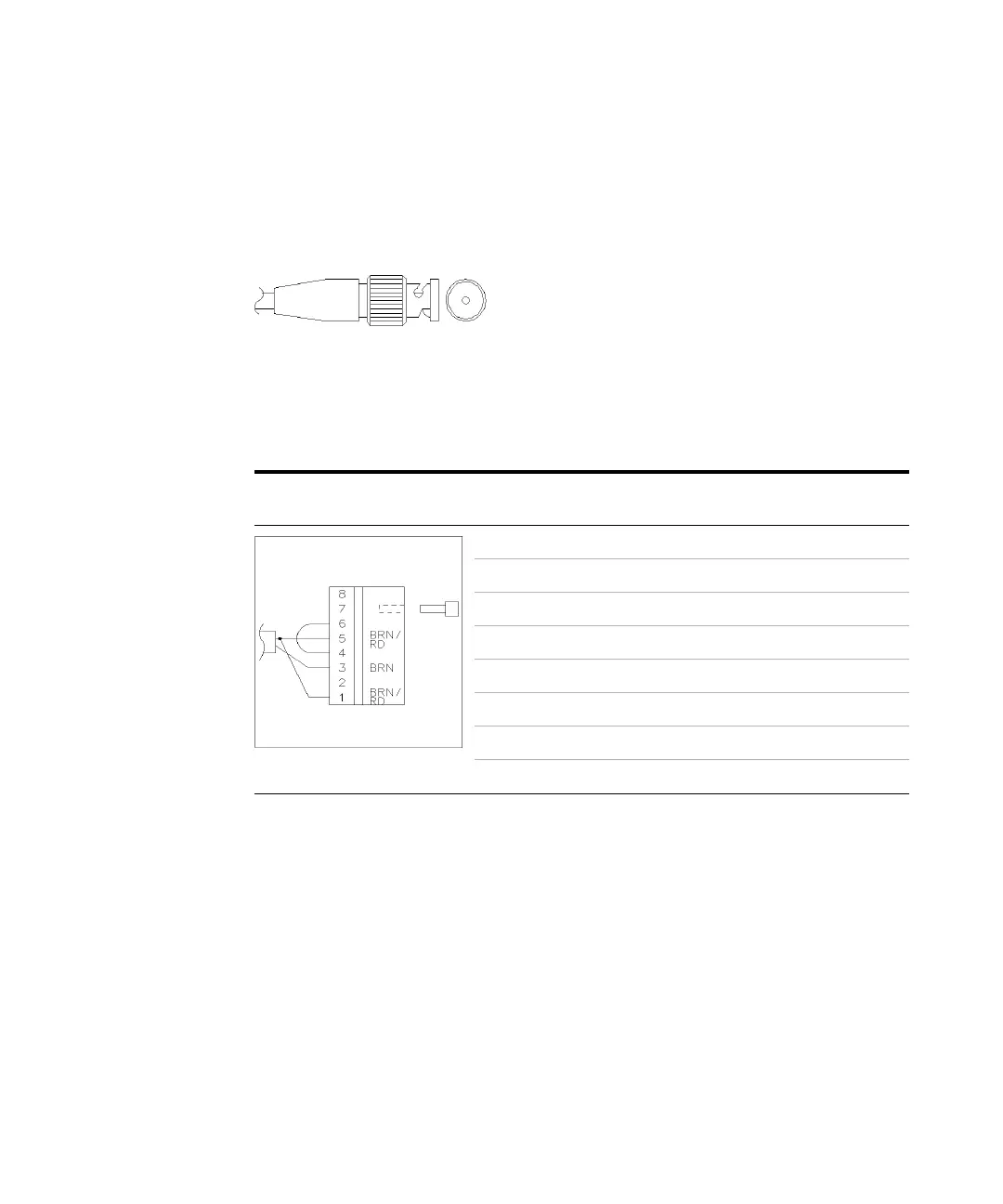

Agilent 1100/1200 to 3390/2/3 Integrators
Connector 01040-60101 Pin 3390/2/3 Pin Agilent
1100/1200
Signal Name
1ShieldGround
2 Not connected
3CenterSignal +
4 Connected to pin 6
5 Shield Analog -
6 Connected to pin 4
7Key
8 Not connected
