126 1200 Series Quarternary Pump User Manual
9 Identifying Cables
Remote Cables

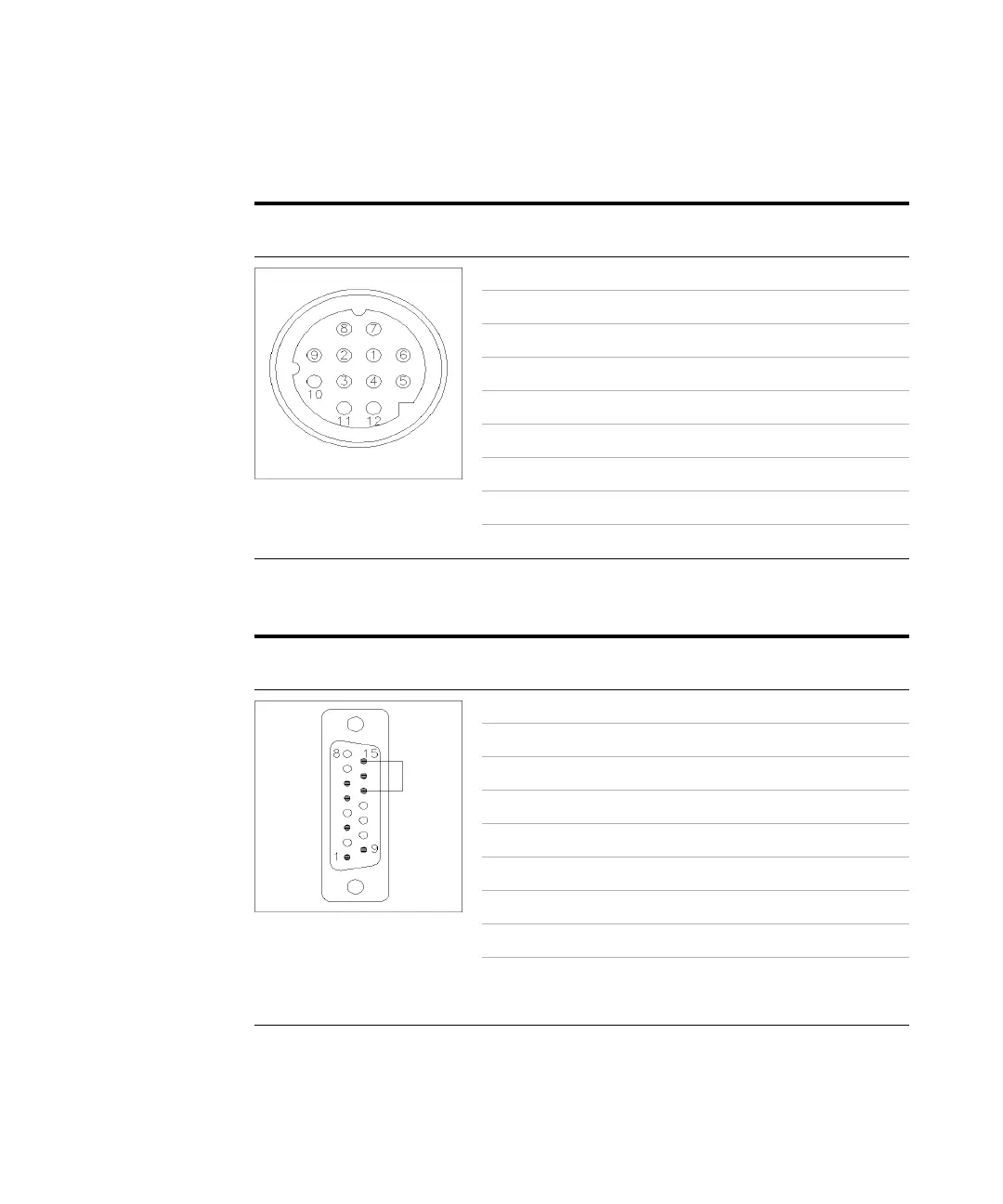

Agilent 1100/1200 to 3392/3 Integrators
Agilent 1100/1200 to 3394 Integrators
Connector01046-60206 Pin 3392/3 Pin Agilent
1100/1200
Signal Name Active
(TTL)
3 1 - White Digital ground
NC 2 - Brown Prepare run Low
11 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not connected
NC 6 - Yellow Power on High
9 7 - Red Ready High
1 8 - Green Stop Low
NC 9 - Black Start request Low
Connector01046-60210 Pin 3394 Pin Agilent
1100/1200
Signal Name Active
(TTL)
9 1 - White Digital ground
NC 2 - Brown Prepare run Low
3 3 - Gray Start Low
NC 4 - Blue Shut down Low
NC 5 - Pink Not connected
NC 6 - Yellow Power on High
5,14 7 - Red Ready High
6 8 - Green Stop Low
1 9 - Black Start request Low
13, 15 Not connected
