Agilent N5161A/62A/81A/82A/83A MXG Signal Generators Service Guide

Troubleshooting

The Signal Generator Does Not Power On

1-53

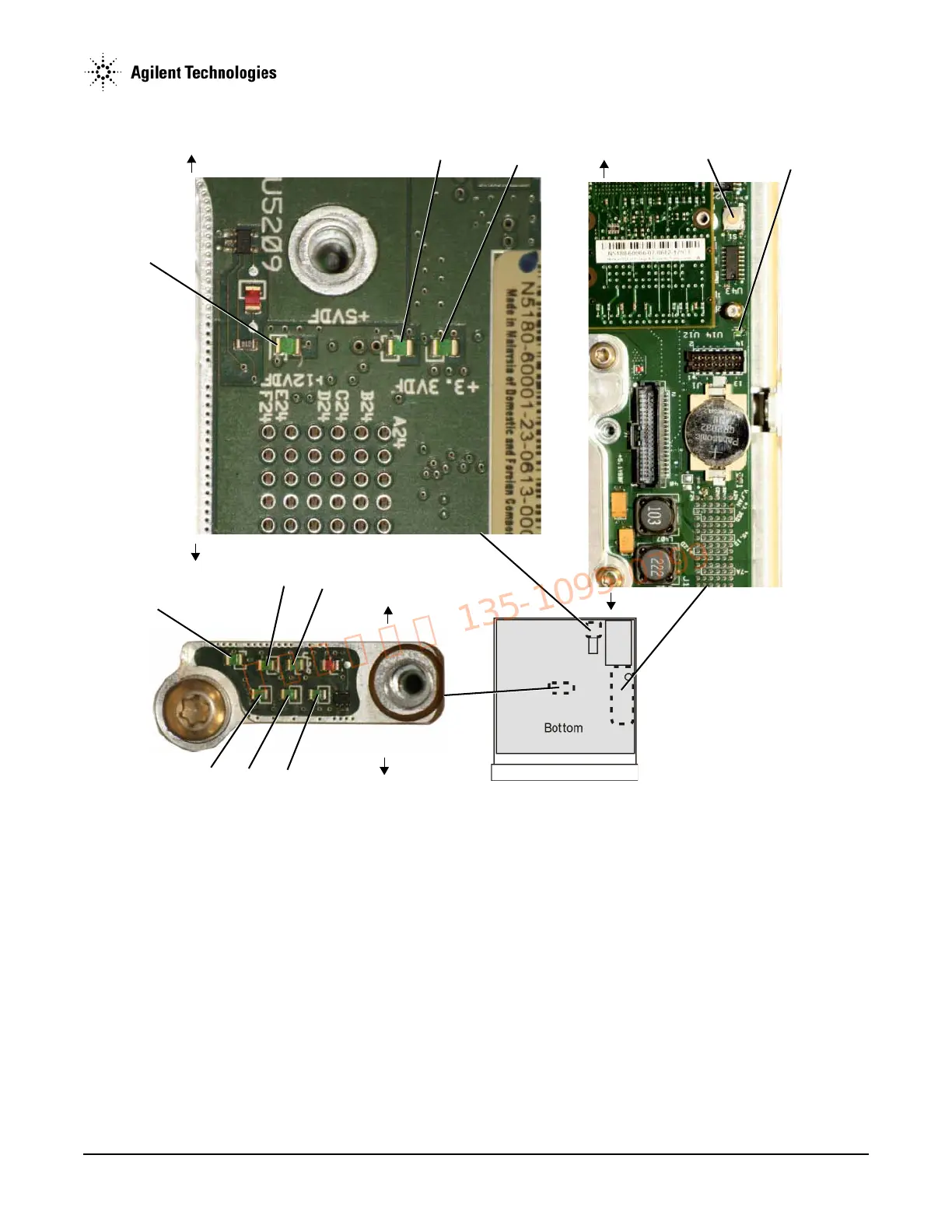

Figure 1-22 Power Supply LEDs

6. Refer to Figure 1-22. Press line switch S1 on the A3 RF assembly.

7. Using Figure 1-22, verify the following A1 Power Supply voltage LEDs are on.

• +3.3VDF, DS1

• +5VDF, DS2

• +5.1VSBF, DS3

• +12VDF, DS4

• +32VAF, DS5

• +5VAF, DS6

• +9VAF, DS7

• +15VAF, DS8

• -7VAF, DS9

• 15VAF, DS10

Front Panel

Rear Panel

Front Panel

Rear Panel

DS8

DS3

DS1

Rear Panel

DS2

DS4

DS9

DS7

DS6

DS10

DS5
