20 Installation Note E8364-90024
Step 9. Lower and Secure the Receiver Deck
Refer to Figure 15 for this procedure.
1. Pull the latch pin (item
②) towards the other side of the analyzer to release the receiver
deck.
2. Lift the receiver deck to partially lower it, then release the latch pin (item
②). Lower the
receiver deck to its fully lowered position and ensure that the latch pin latches in the
lowered position.
3. With a T-10 TORX driver, install the four screws (item
①) to secure the receiver deck.

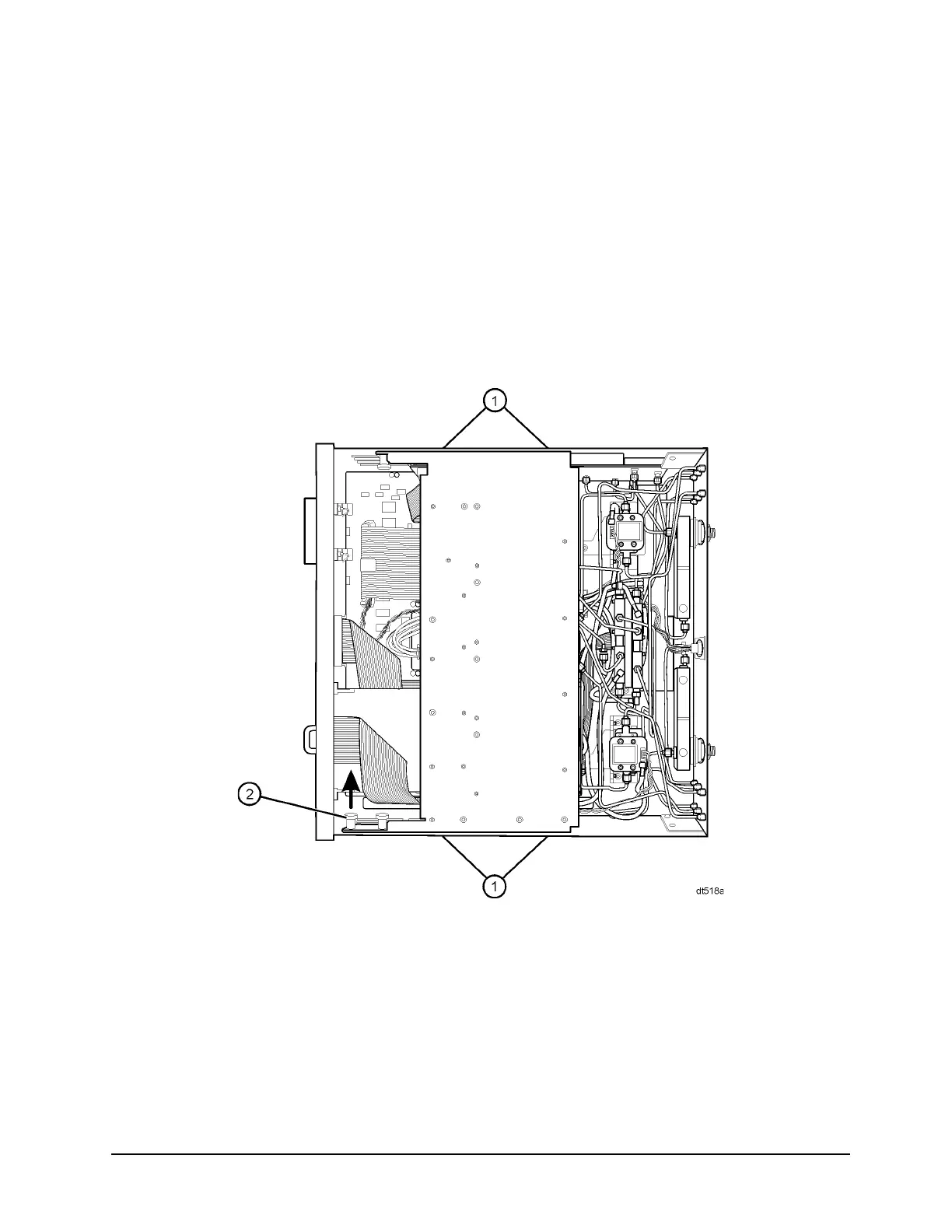

Figure 15 Receiver Deck Lowering
