Installation Note E8364-90024 9
Step 3. Raise the Receiver Deck
Refer to Figure 4 for this procedure.
1. Place the analyzer bottom-side up on a flat surface.
2. With a T-10 TORX driver, remove the four screws, (item
①), that secure the receiver deck.
3. Pull the latch pin (item
②) towards the other side of the analyzer to release the receiver
deck.
4. Lift the receiver deck to partially raise it, then release the latch pin (item
②). Lift the
receiver deck to its fully raised position and ensure that the latch pin latches in the raised
position.

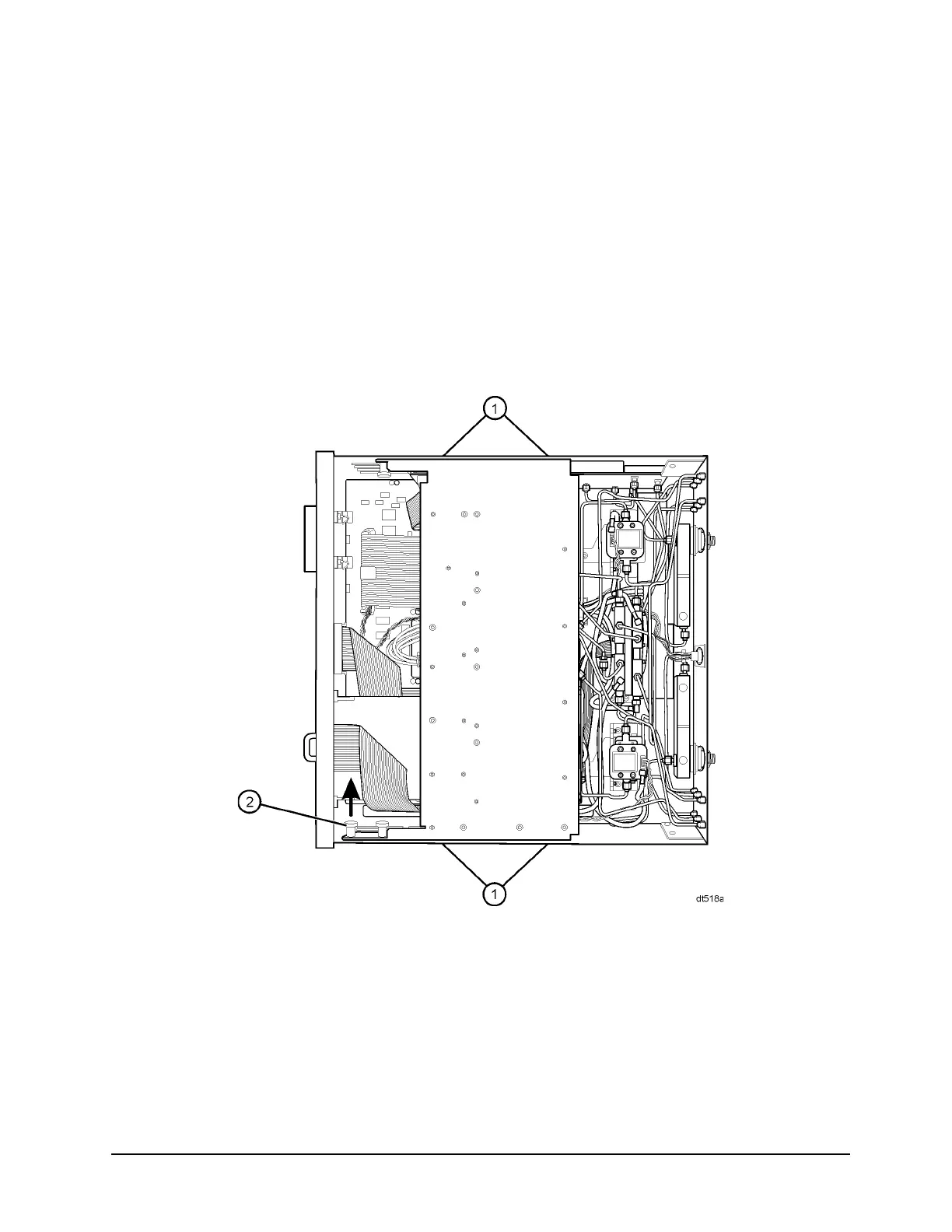

Figure 4 Receiver Deck Raising
