10 Installation Note E8364-90024
Step 4. Remove the Existing Cables
Analyzers with Hardware Options 014 and 080 Only
Refer to Figure 5 for this portion of the procedure.
Remove the following cables.
• W65 E8364-20047 A23 channel R1 detector to REFERENCE 1 SOURCE OUT
• W67 E8364-20043 A25 test port 1 coupler to PORT 1 CPLR ARM
• W68 E8364-20044 A26 test port 2 coupler to PORT 2 CPLR ARM
• W70 E8364-20075 REFERENCE 1 RCVR R1 IN to A28 channel R1 mixer
• W71 E8364-20076 REFERENCE 2 RCVR R2 IN to A29 channel R2 mixer

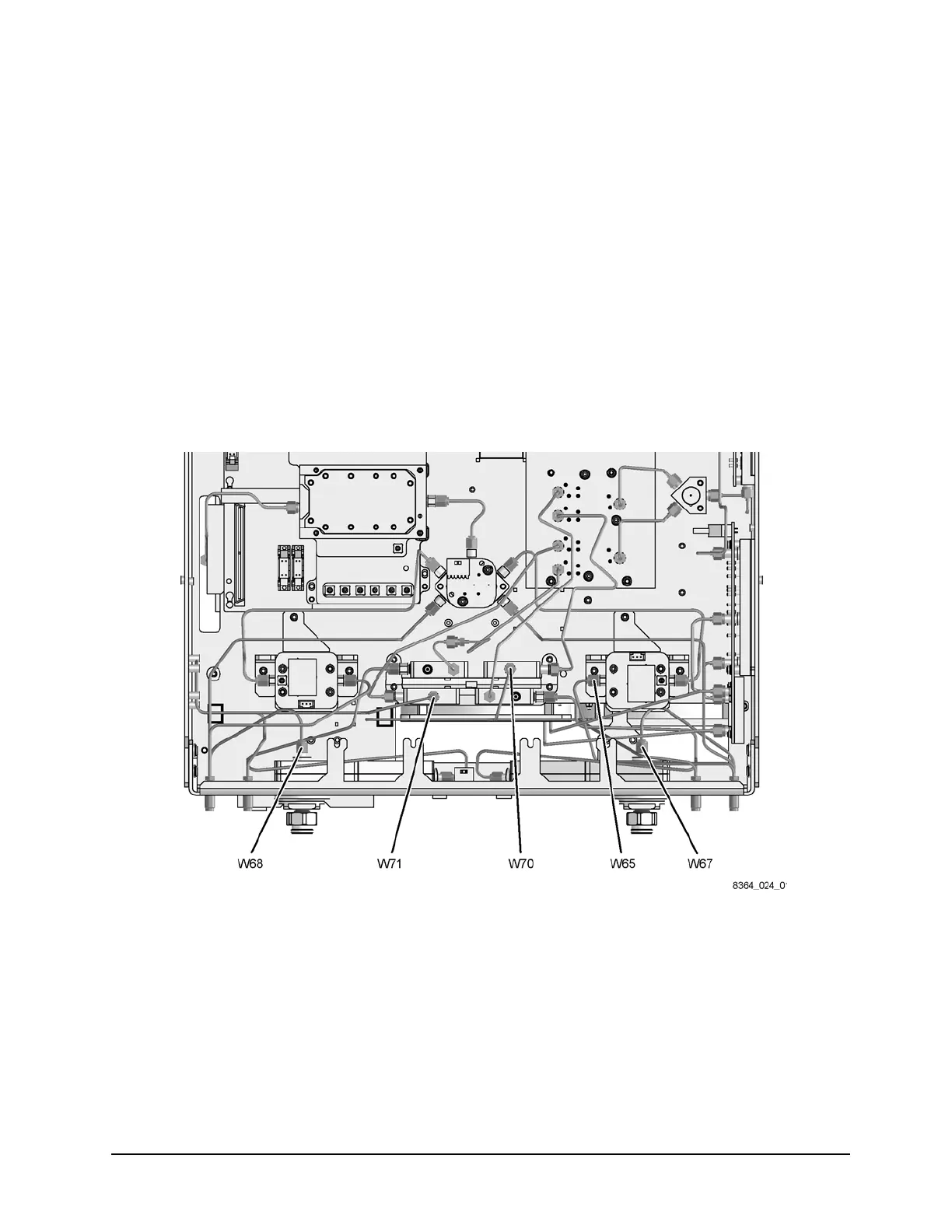

Figure 5 Cable Removal, Analyzers with Options 014 and 080
