Agilent Technologies PNA Series Installation Note

Installation Note E8364-90024 11
Analyzers with Hardware Options UNL, 014, and 080 Only
Refer to Figure 6 for this portion of the procedure.
Remove the following cables.
• W65 E8364-20047 A23 channel R1 detector to REFERENCE 1 SOURCE OUT
• W70 E8364-20176 REFERENCE 1 RCVR R1 IN to A28 channel R1 mixer
• W71 E8364-20177 REFEFENCE 2 RCVR R2 IN to A29 channel R2 mixer

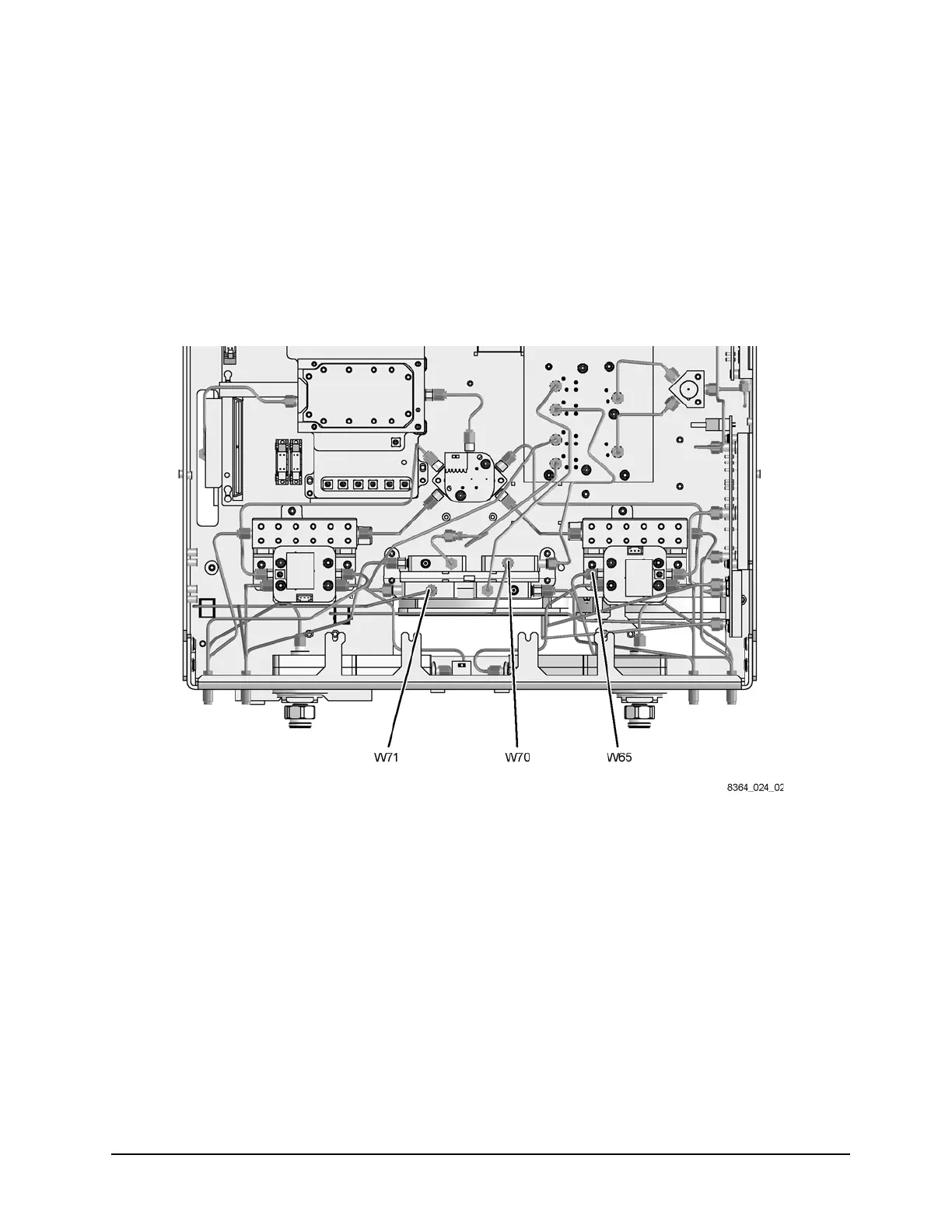

Figure 6 Cable Removal, Analyzers with Options UNL, 014, and 080
