FM Deviation Measurement
Filter Type
This parameter is used to determine the way that the high pass and low pass filters
are implemented. the option for this parameter are the following:
FIR (0dB) These filters have 0 dB of loss at the stop frequency. The
measurement speed with this type of filter is slow.
IIR (–3dB) These filters have 3 dB of loss at the stop frequency. The
measurement speed with this type of filter is faster than the FIR
filter.
Adjusting the View
Press Trace/View.
Numeric results is the default setting. Toggle the key to
Demod Waveform to view
the waveform.
Press
Span X scale and Amplitude Y scale to adjust the waveform display.
FM Deviation Measurement Example

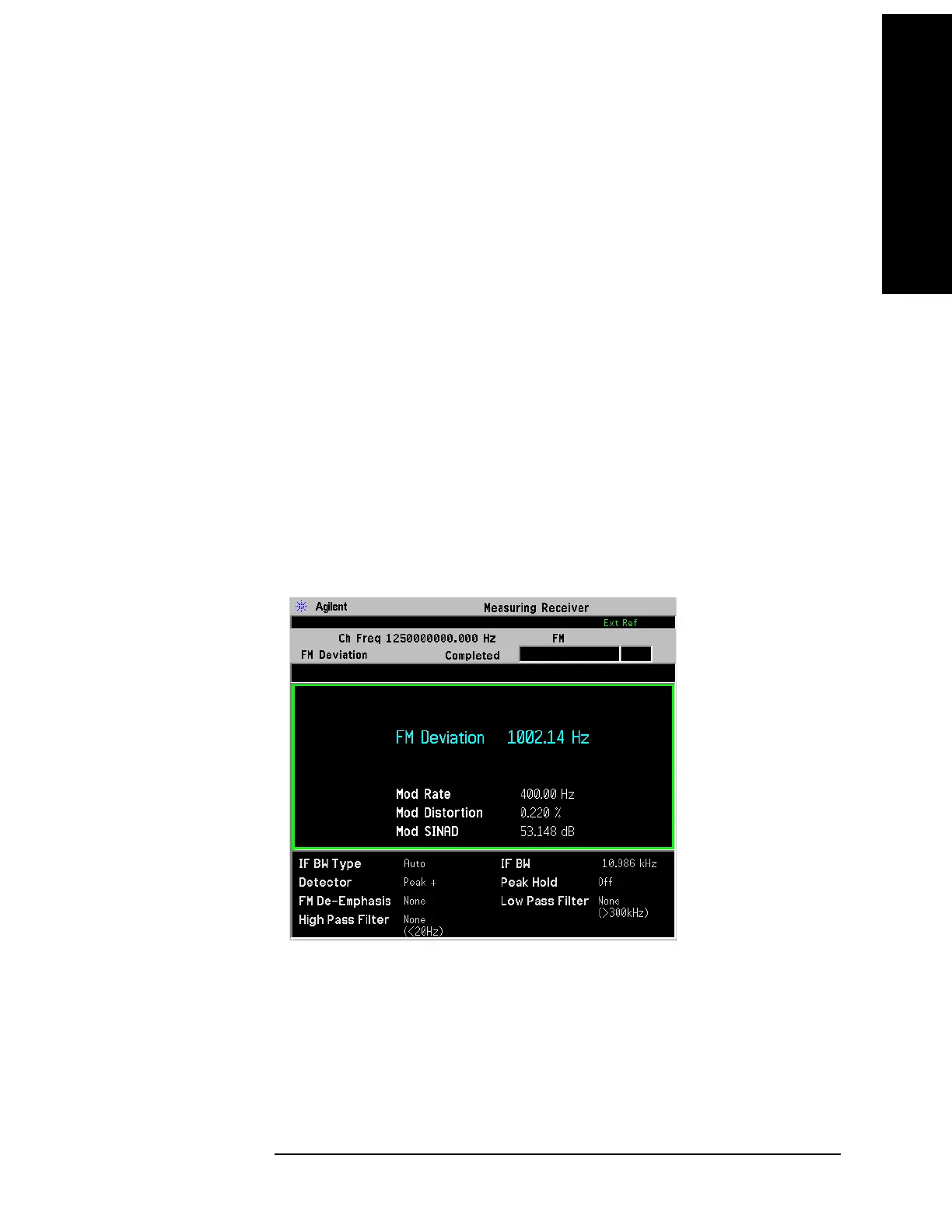

Figure 3-10 FM Deviation Measurement Result (Default)
