TriScroll 600 Series Vacuum Pump
DRA
FT 6/13/11

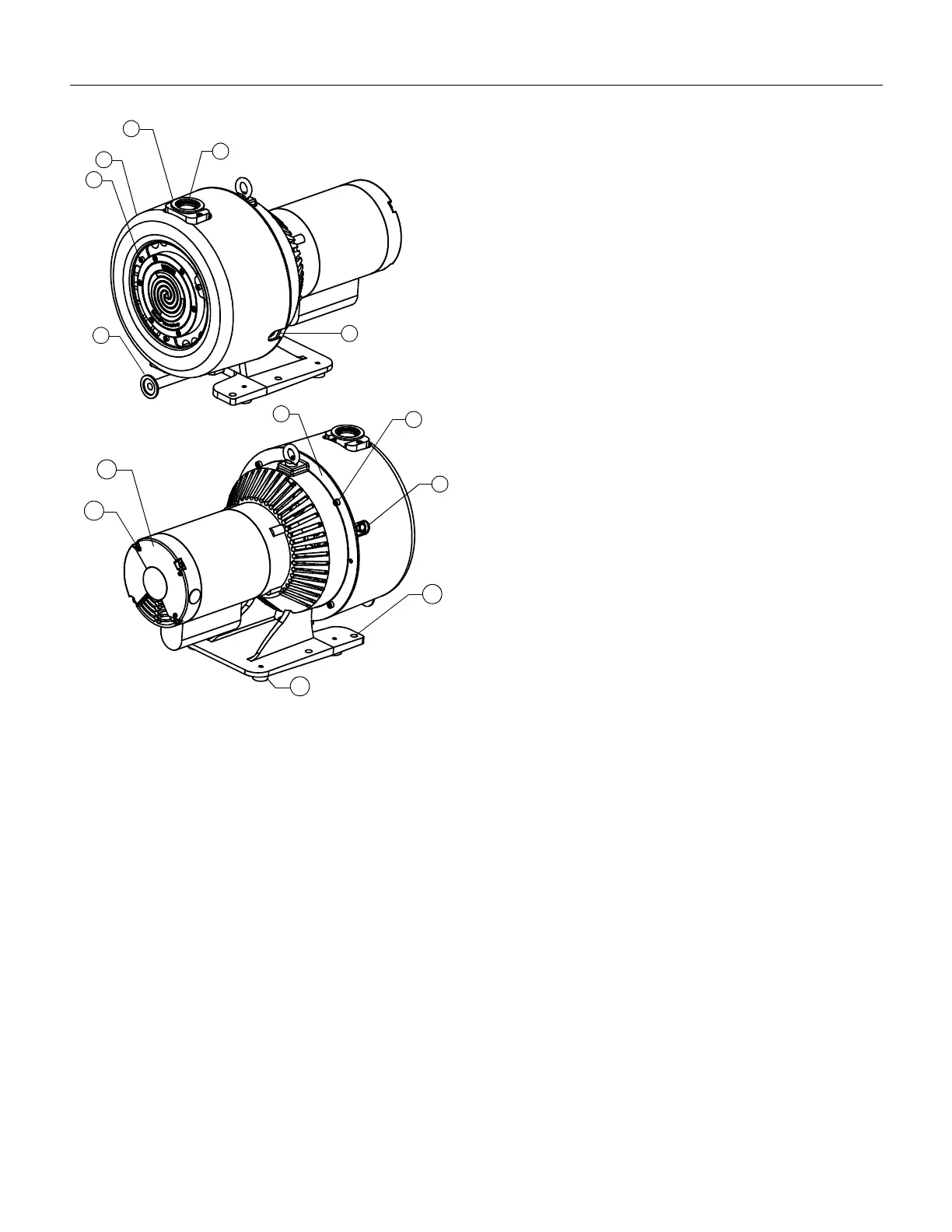

Figure 3 TriScroll 600 Series Vacuum Pump
(Single Phase Pump Shown)
1. Cowling Screws; M5 (3)
2. Cowling
3. Inlet (NW40)
4. Inlet Screen
5. NW25 Exhaust Adapter
6. Bearing Purge Port (1/4" National Pipe Thread)
7. Pump Frame
8. Frame Screws; M6 (4)
9. Gas Ballast Port (1/4" National Pipe Thread)
10. Mounting Holes; 11 mm diameter thru (8)
11. Rubber Feet (4)
12. Motor Cover Screws (3)
13. Motor Electrical Cover
1
2
3
4
5
6
8
9
7
10
11
12
13
