Agilent Technologies TwisTorr 74 FS AG - Controller Outline and Dimensions

Technical Information
Controller Outline
146/192 TwisTorr 74 FS AG On-board Controller User Manual / 87-901-054-01
Controller Outline
The outline dimensions for the TwisTorr 74 FS AG On-board
controllers are shown in the following figures.

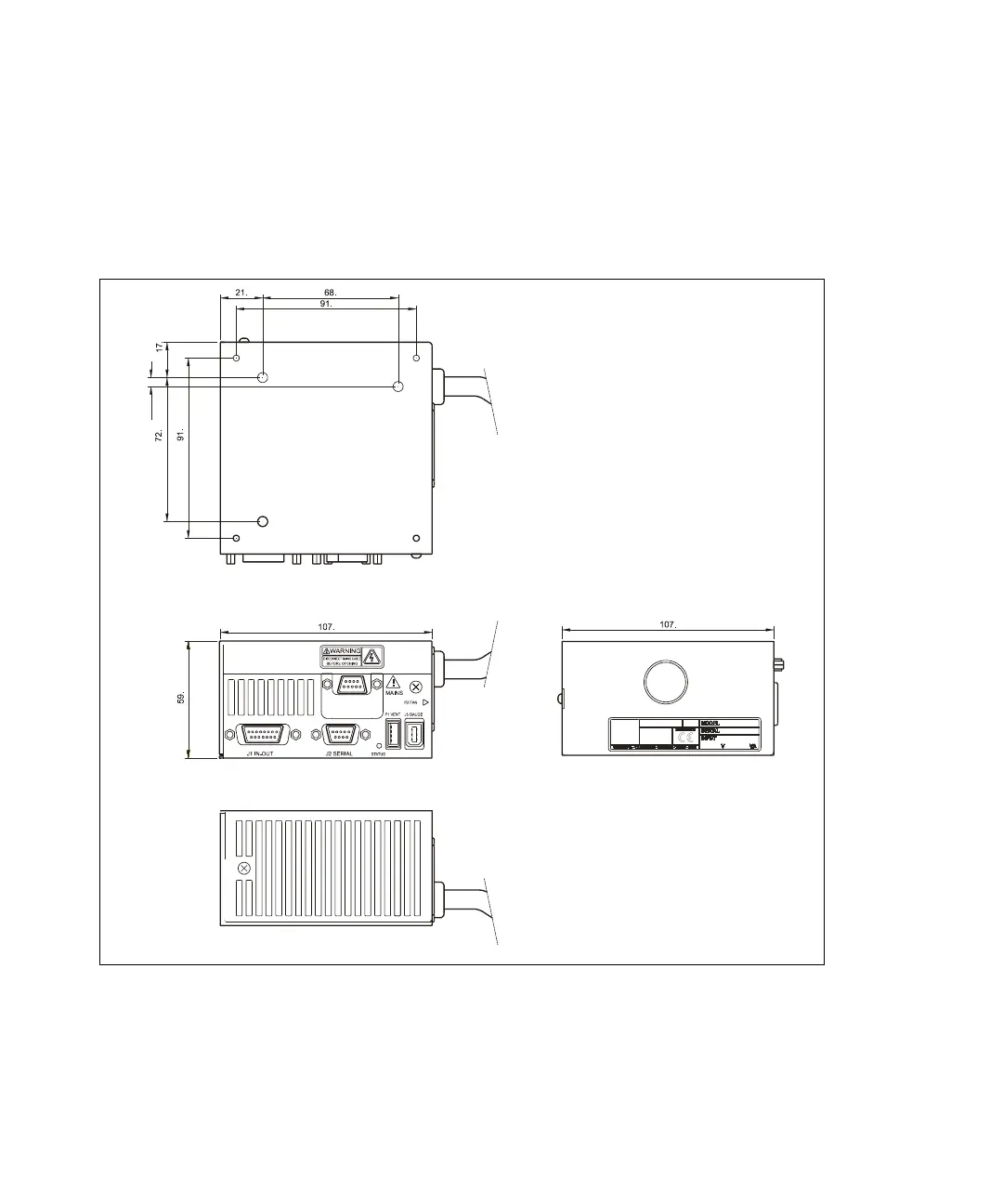

Figure 1 Outline X3509-64021
