Agilent Technologies TwisTorr 74 FS AG User Manual

Technical Information
J2 – Serial
17
J2 – Serial

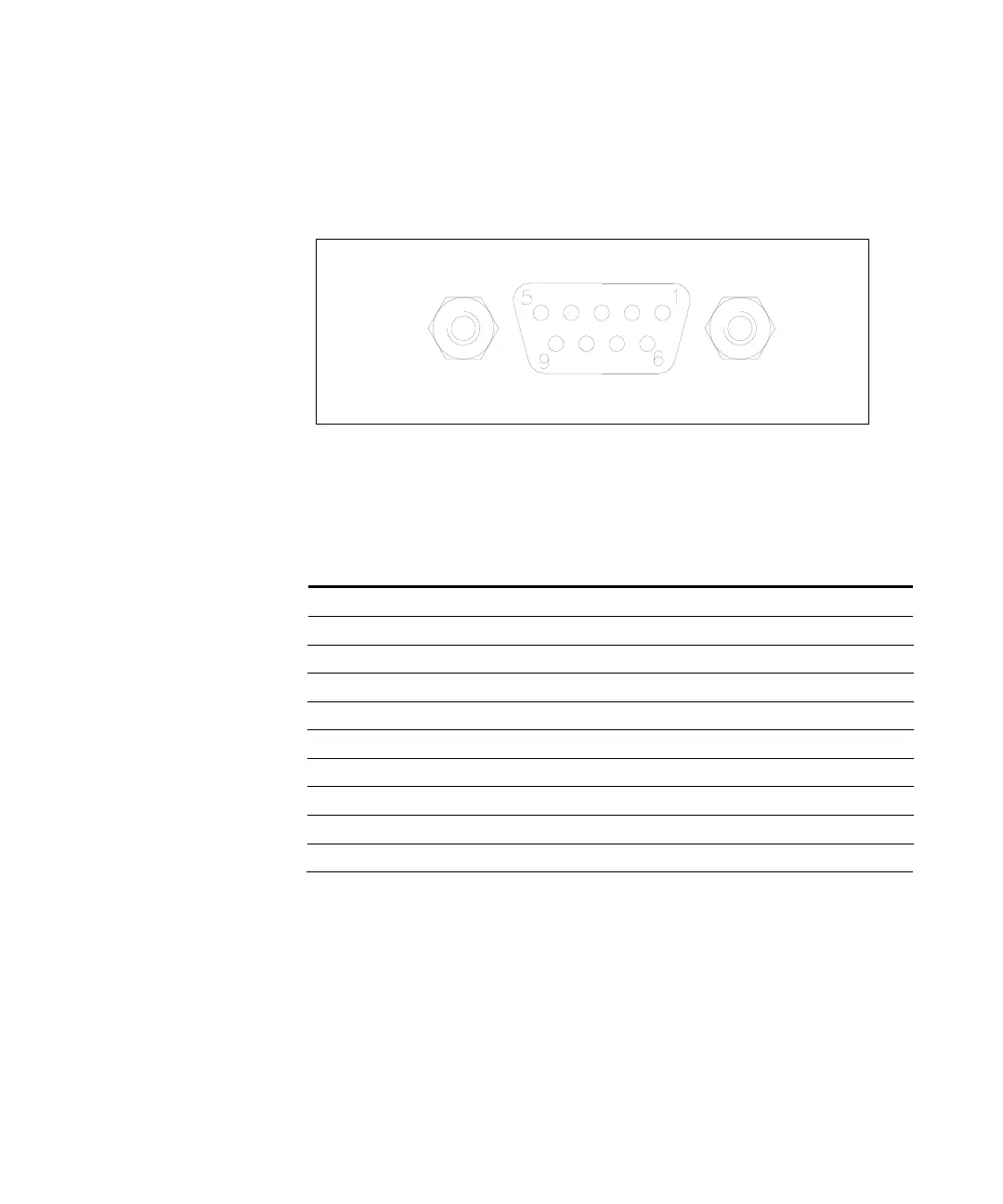

Figure 25
J2 – Serial
This is a 9 pin D-type serial input/output connector to control the
TwisTorr 74 FS AG Nav via an RS-232 or RS-485 connection.
Pin n. Signal name
1
+5 V (OUT)
2 TX (RS232)
3 RX (RS232)
4 Not used
5
GND
6 A + (RS485)
7 Not Used
8
B - (RS485)
9 Not Used
A serial communication kit (9699883) with a serial cable and the
A-PLUS software is available (optional).
TwisTorr 74 FS AG On-board Controller User Manual / 87-901-054-01 171/192
