J1 – IN-OUT
170/192 TwisTorr 74 FS AG On-board Controller User Manual / 87-901-054-01
How to connect the outputs of the controller

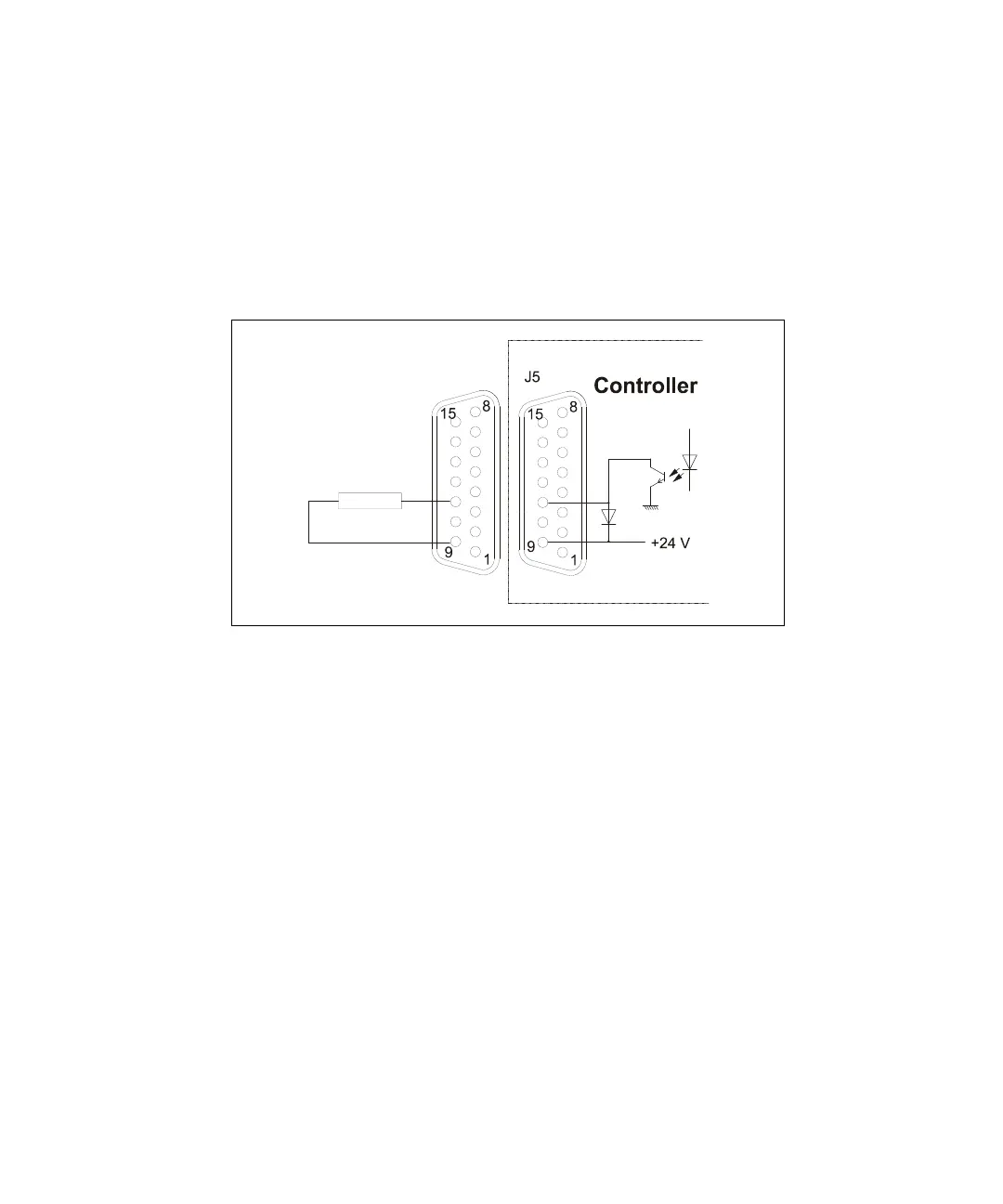

The following figure shows a typical logic output connection of a
relay coil (other devices may be connected in the same way, e.g. a
LED, a computer, etc.) and the related simplified circuit of the
controller. The example figure refers to the programmable set
point signal on pins 11 and 9.
Figure 24 Typical output connection
