Technical Information

Rear Panel

148/192 TwisTorr 74 FS AG On-board Controller User Manual / 87-901-054-01

Rear Panel

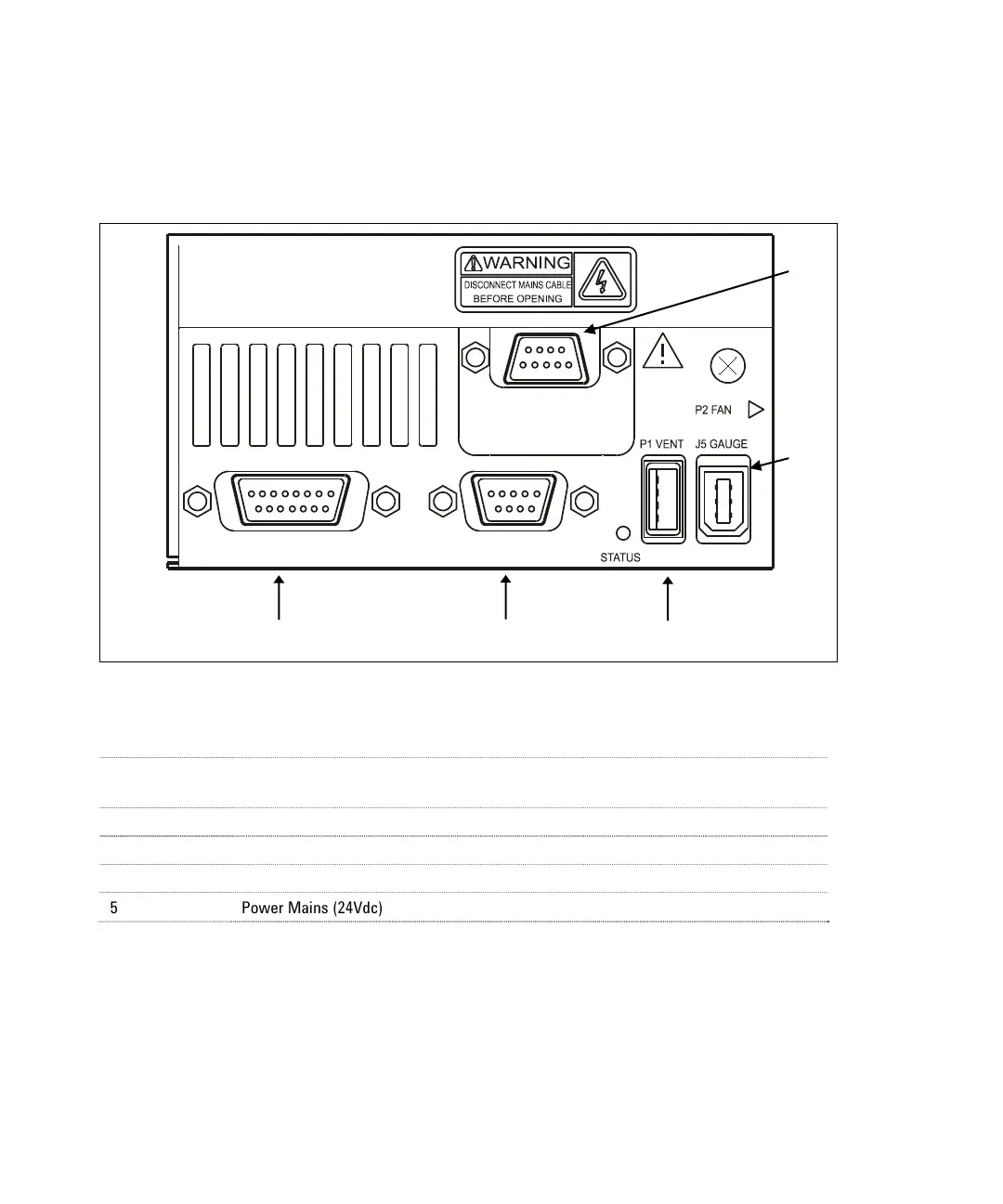

Figure 3 TwisTorr 74 FS AG On-board Controller Panel – X3509-64021

1 Remote I/O Connector (mating connectors supplied to start the pump with no

additional connections)

2 Remote Serial Connector for RS-232 and RS-485

3 Power output connector (24Vdc for Vent)

4 Power output connector (24Vdc for Gauge)

5 Power Mains (24Vdc)

J1 IN-OUT

J2 SERIAL

MAINS
