Testin g D iode s
NOTE
Press button to select measurement range from 1 k W to 100 M W .
CAUTION
Disconnect circuit power and discharge all high-voltage capacitors before testing diodes to
prevent possible damage to the meter.

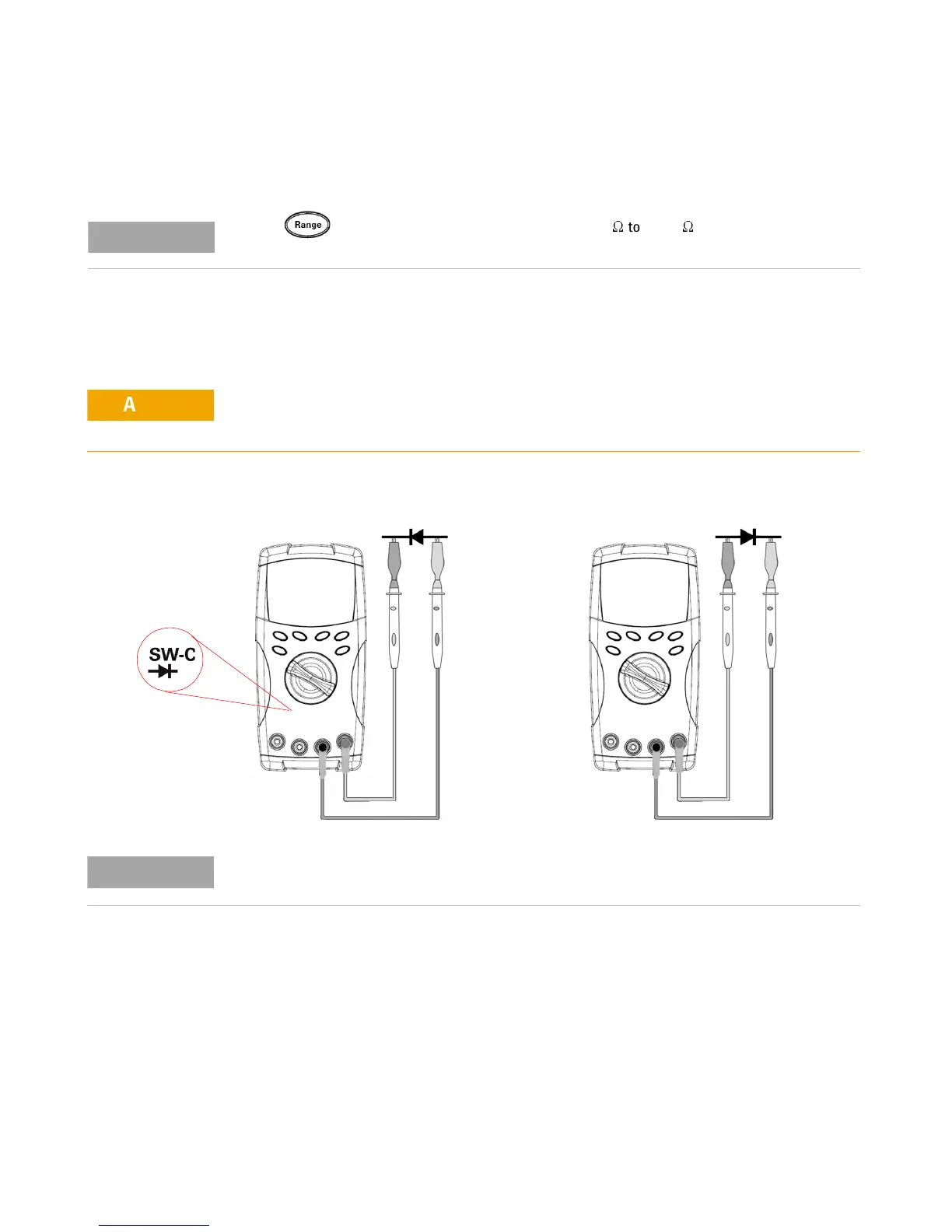

Reverse bias
Forward bias
NOTE
The meter can display diode forward bias of up to approximately 1.1 V. Typical diode forward
bias is between the range of 0.3 to 0.8 V range with audible beeper sound.
