9300015500 Rev. C 5 of 14 Pre-installation Instructions
212-LC and HTS PAL
Figure 2 shows a possible layout for the LC/MS with 212-LC pumps and CTC HTS PAL
autosampler.

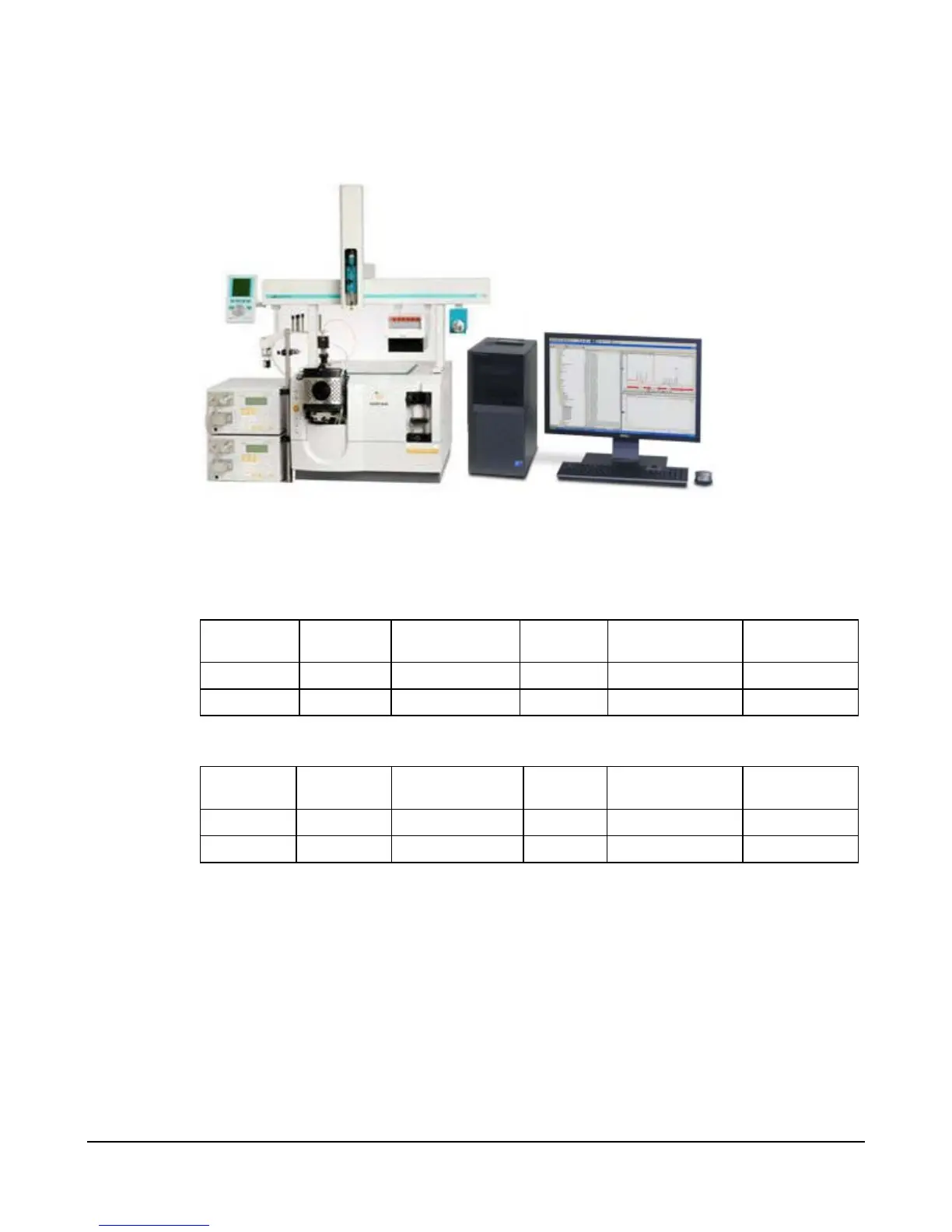

Figure 2 Suggested Layout with 212-LC and HTS PAL
Table 3 an
d Table 4 give the dimensions and weights of the modules in Figure 2.
Table 3 Bench Width with the HTS PAL
Bench
Width
212-LC 325-MS CPU
Monitor and
Keyboard
Total
cm 26 53.5 18.7 51 150 cm
in. 10.5 21 7.4 20 59 in.
Table 4 Bench Load with the HTS PAL
Bench
Load
212-LC
325-MS and HTS
PAL
CPU
Monitor and
Keyboard
Total
kg 14.5 71 11.5 5.5 102.5 kg
lb 32 162 25.3 11.5 231 lb
Additional Bench Considerations
The system requires a clean, flat bench. The bench must have enough space for the modules,
the mouse, solvent bottles, and such, see Table 5. The bench must be strong enough to
sup
port the weight of the modules. The area under the bench must be large enough for the
foreline pumps. If the bench is against a wall, drill a hole in the back of the bench large enough
for the vacuum tubing of the foreline pumps. See Table 8 for information about the length of the
power cord, serial cable, a
nd vacuum hoses for the MS40+ foreline pumps.
Plan to put the monitor and keyboard on the same bench as the LC/MS. If the plan is to use a
separate bench, position it within 3 m (10 ft) of the rear of the LC/MS. The CPU can go on or
under the bench.
