CP-8400/8410 CP-3800 Top Cover
To install the CP-8400/8410, follow the steps below:
WARNING:
SHOCK HAZARD
Dangerous voltage exposed. Turn the CP-3800 GC power off. Failure to do
so may result in accidental contact with dangerous voltage.
1. Power down the GC and any other attached devices. Remove
any old equipment or old autosamplers from the top of the GC.
Place the CP-8400/8410 near the GC, manually rotate the
Injector tower so that it does not obstruct the carrousel.
2. Remove the old CP-3800 top cover by lifting up and removing
the Detector cover; set it aside in a location that is out of the
way. Remove the left side top cover by lifting the rear of the
cover and sliding it towards the rear of the GC and up. Remove
the 4 screws holding the injector cover down on the top of the
GC. Retain the screws and set the old top cover aside.
3. Locate the CP-8400/8410 power/communication cable and the
CP-8400/ CP-3800 top cover. Route the single D-shell connector
through the hole from the bottom of the cover to the top so that
the single D-shell is available from the top of the cover. Route
the power cable and CP-3800 25 pin D-shell connector across
the top of the GC to the left side of the GC. Plug the power cable
into Aux 1 (J46) and the 25-pin D-shell into the S.I.D.
1 (J4)
connector.

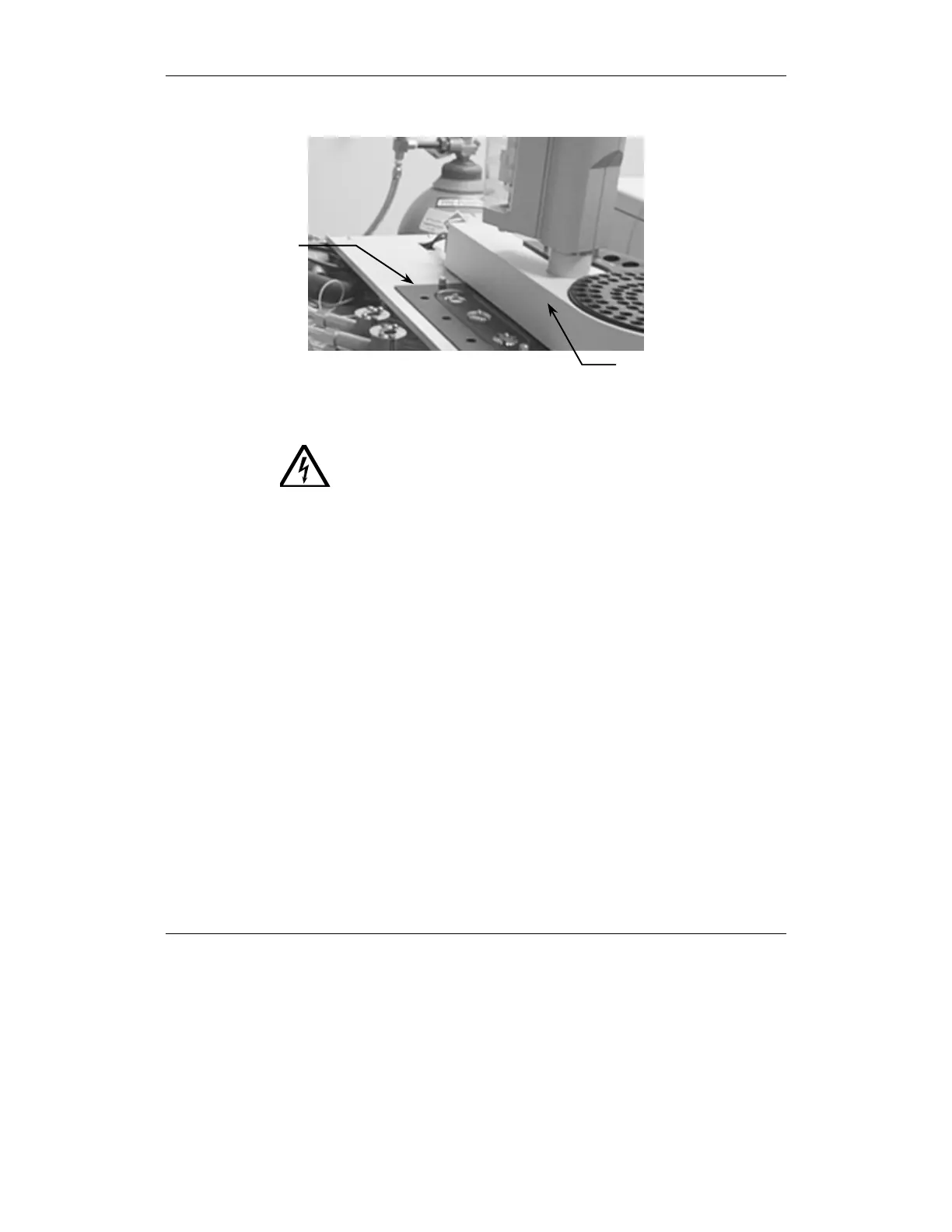

Injector Locato
Plate
CP-8400 in Front Position
To Next Page
