AGL GradeLight 3000 User Manual

11

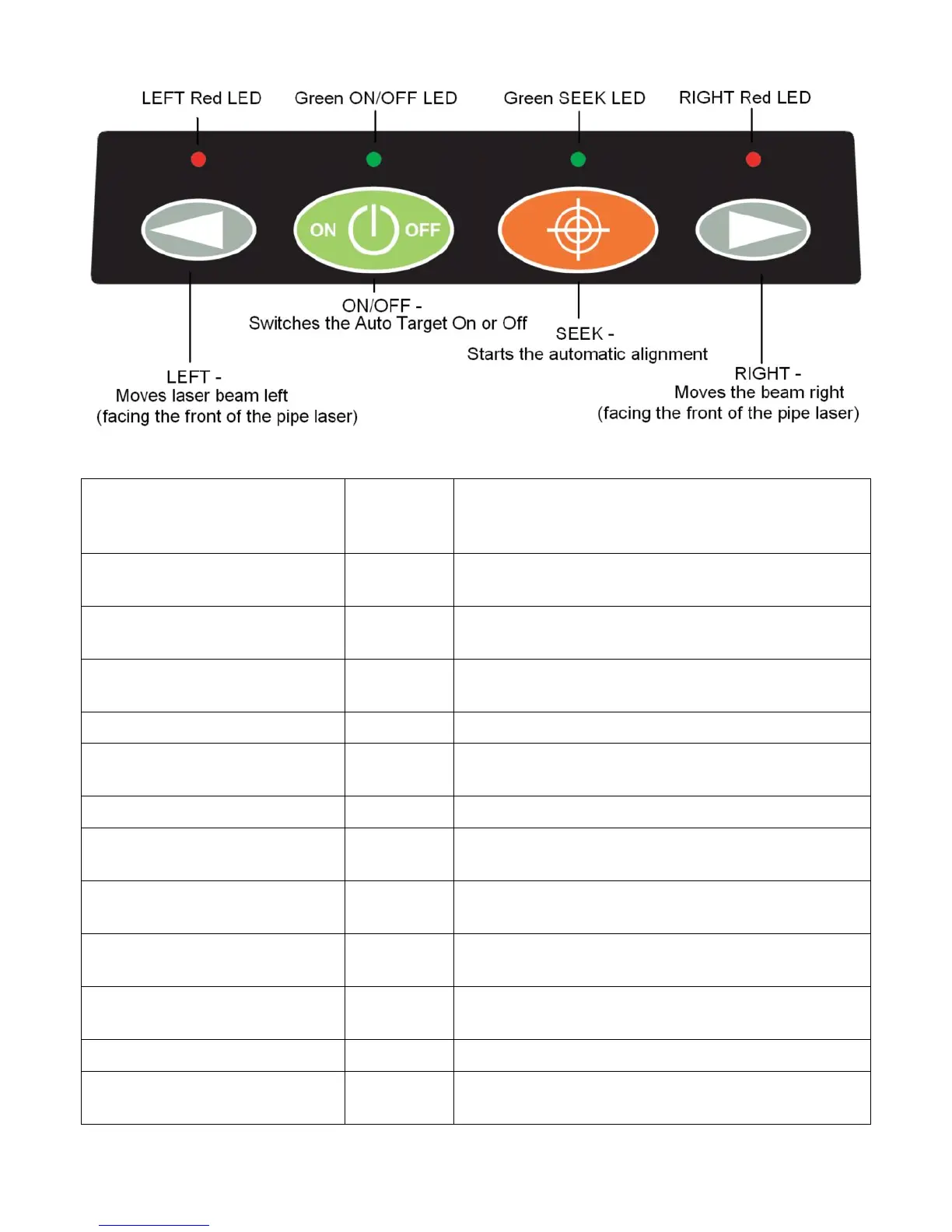

Keypad and LED Overview
LEFT Red LED
Blinking
AutoTarget has received the rotating laser beam
on the left side of the reception field, and the
fine auto alignment run is starting
Green ON/OFF LED
Solid
AutoTarget is on, auto alignment is not running
yet, or has just been successfully finished
Green SEEK LED
Blinking
Auto alignment is running and seeking the
AutoTarget in a coarse run
Solid
Auto alignment is running and seeking the
AutoTarget‘s center in a fine mode
RIGHT Red LED
Blinking
AutoTarget found
Both LEFT and RIGHT LED
Blinking
Target has timed out (see 16 for detailed
description)
Solid
Target is in wide seek mode
LEFT red LED and ON/OFF
LED
Solid
While in laser seek mode, shows rotating laser
beam is left off center
RIGHT red LED and ON/OFF
LED
Solid
While in laser seek mode, shows rotating laser
beam is right off center
LEFT and RIGHT red LED
and ON/OFF LED
Solid
While in laser seek mode, shows rotating laser
beam is in center
1 up to 4 LED's
Solid
lit for a second after ON/OFF button is pushed
to show the battery voltage:
if battery voltage is more than 5,7V, all LED's lit
if battery voltage is less than 5,2V, the left red,
the green ON/OFF LED and green auto LED lit
