8

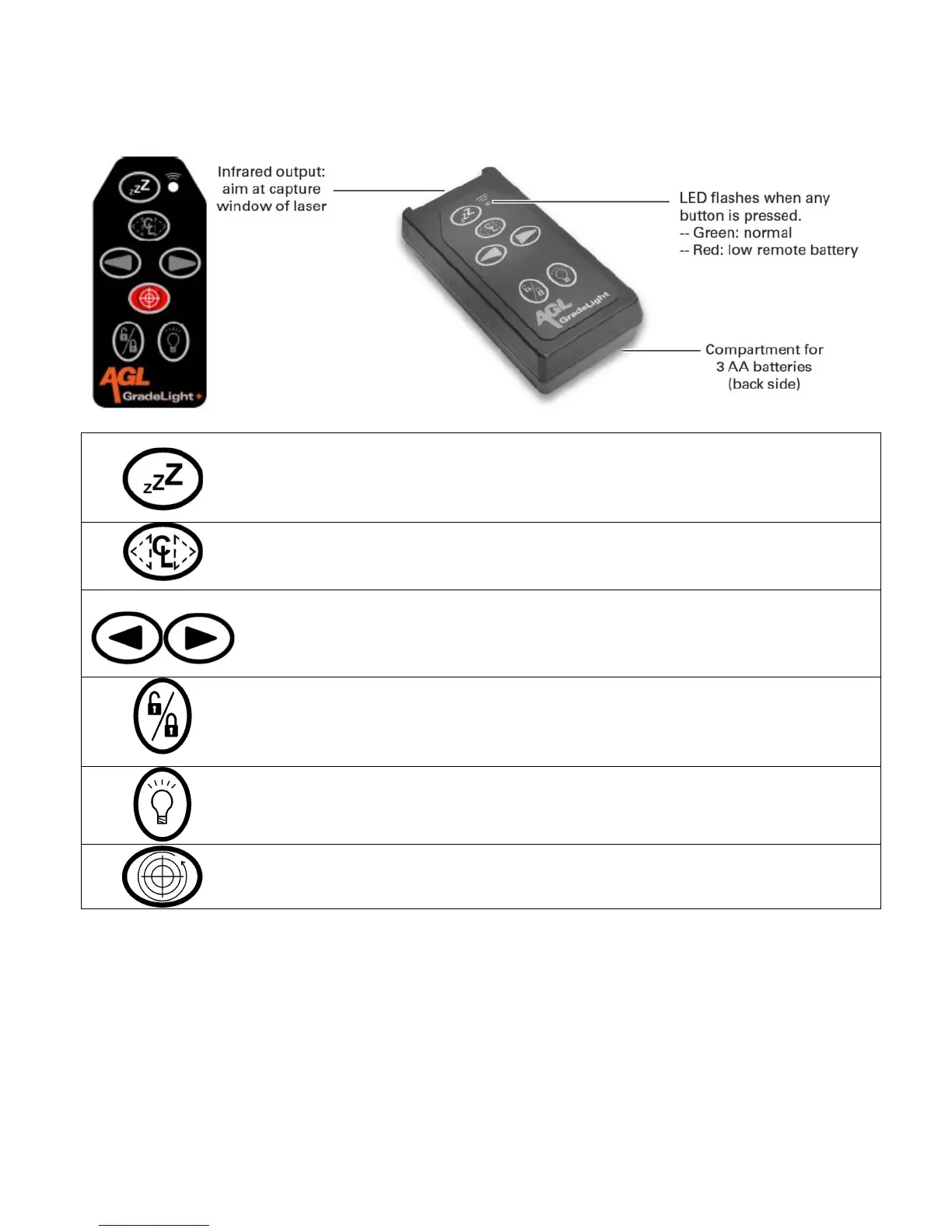

Remote Control Overview
The remote if used primarily to move the beam left or right, within the azimuth range, and to
put the laser in standby or locked mode. Since it’s an infrared line-of-site device, there
should be no obstructions between it and the laser. It can be pointed at either the front side
(through the pipe) or the back of the laser.
Remote Keypad Functions
Standby mode
· Press and hold for 2 second. This puts laser in standby mode to save
battery life during breaks. LCD on laser will show sleep symbol.
· Press again to return to normal operation. All settings are retained.
Reset line to center
Hold 2 seconds, and laser beam automatically moves back to center
azimuth position.
Line adjustment - (left and right azimuth control)
When using remote from the target side, beam moves in the direction of
the arrows. If using remote from laser keypad side, beam moves in the
opposite direction.
Activates lock function
All buttons on the remote and laser are blocked, preventing unintentional
changes when the laser is in use. LCD on laser shows a lock symbol.
To deactivate: Press the lock button again.
LED for line pivot point
Press to turn on LED on top of laser, which is used for alignment outside of
the manhole. Automatic shut-off after 1 minute.
Alignment Function
Turns on the Scan Beam for manual alignment using a detector.
Line Adjustment
The laser beam can be aligned to the target using the left and right line adjust. The azimuth
indicator on the LCD shows the beam position in the adjustment range. Before each set-up,
center the beam to allow maximum adjustment in each direction. The total range of
movement is 20’ at 100’ (6m at 30m)
To Move the Beam
Use arrows on the laser keypad or remote. Movement will start slow ad speed up as long as
the button is pressed.
