AGM 520 E - Assembly Instructions; Plastic Guard Shield Installation; Cutting Line Head Installation

10
AGM
520 E (GB)
WARNING
ATTENTION
INSTALLING THE CUTTING LINE
HEAD
Align the opening in the adapting
plate with the opening in the
shaft and mount the locking tool.
Screw the cutting line head onto
the shaft (turning it clockwise)
until it is tightened. Remove the
locking tool.
ASSEMBLY
INSTALLING THE PLASTIC
GUARD SHIELD
Mount the guard shield on the shaft
with a guard holder and the screws
supplied with the device.
After adjusting the guard shield holder
into proper position, tighten the
screws.

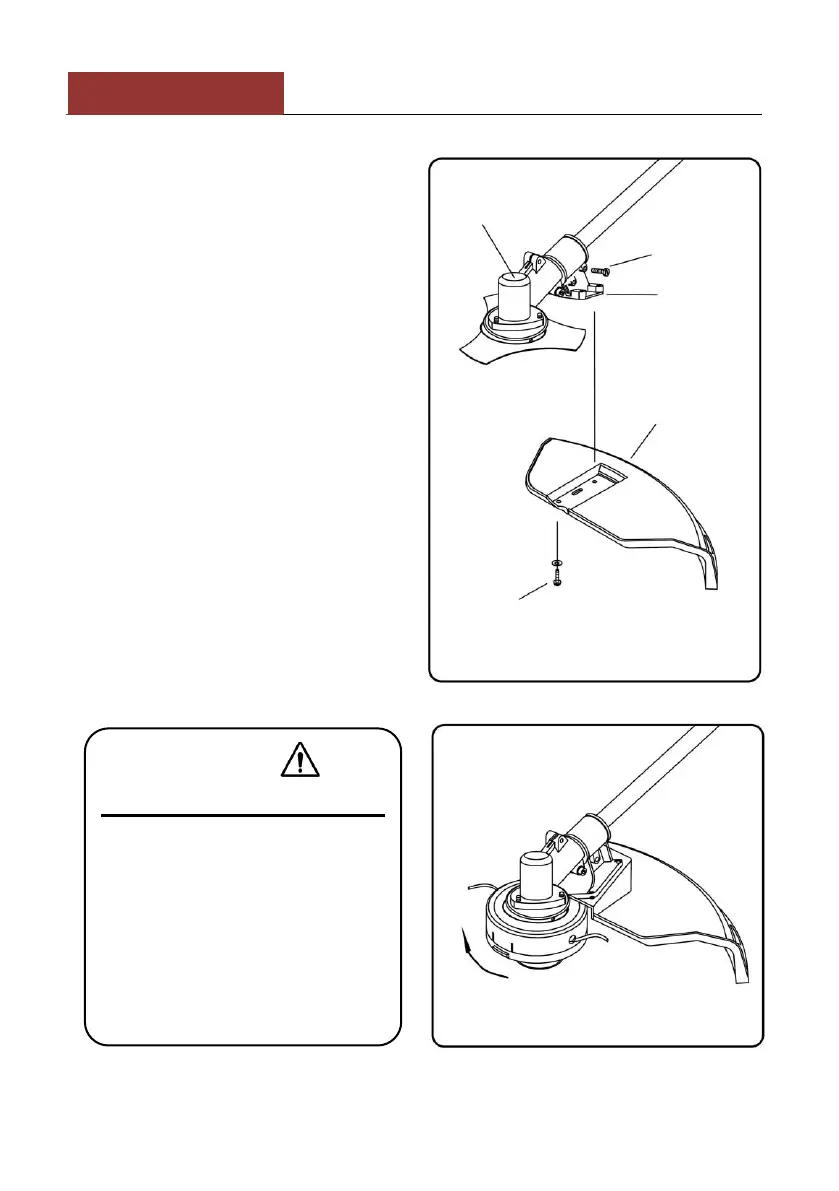

Gear shift
(gear box)
M5 x 30
screws
Holder
Guard
shield
Screws
M5 x 16
