AGM 520 E - Handle Installation; Blade Installation

11
AGM
520 E (GB)
WARNING ATTENTION
TOO MUCH VIBRATION - STOP THE
ENGINE IMMEDIATELY.
Too much blade vibration means
that it is not mounted properly.
Stop the engine immediately and
inspect the blade. Improperly
mounted blade will cause injury.
Use only original parts for the
device made in our company
when servicing or repairing the
device.

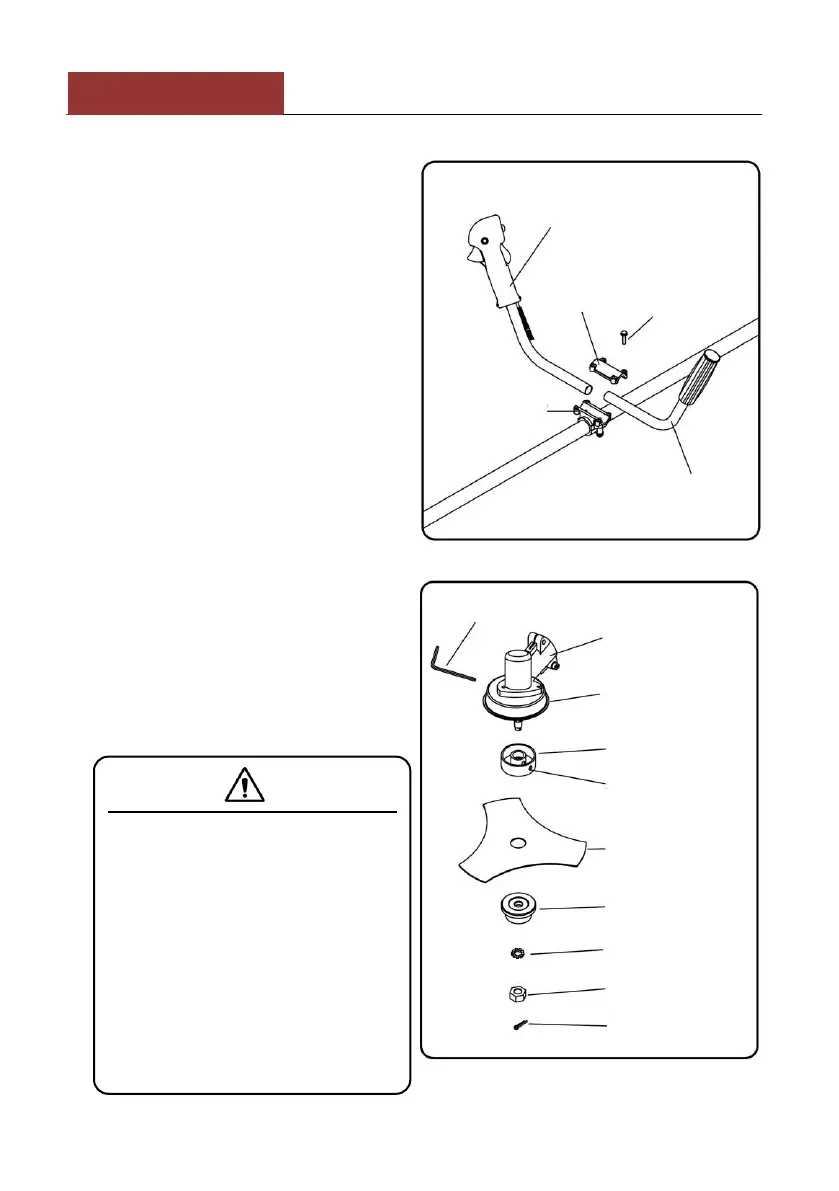

INSTALLING THE HANDLE
Install the handle into the holder. Put
the handle in a comfortable working
position and tighten the four M5x25
screws.
INSTALLING THE BLADE
 Position the holder A on top of the
gear shift with the opening towards
the gear head.
 Center the blade on the holder A
making sure that the blade lies flat.
Mount the holder B with the raised
center away from the blade.
 Put the star washer on the top.
 Position the left-hand thread nut by
turning it counter-clockwise. Position
the key through the gear head
opening and the opening in the
holder A. Tighten the left-hand
thread nut.
 Position the 2 x 16 split pin and split
it.
 Wear protective gloves and be
careful while handling the blade.
The right handle
assembly
Top cover
M5 x 25
screws
Holder
The left holder
assembly
Hex
key
Gear
shift
Guard
shield
Holder A
Openin
g
Three-tooth
blade
Holder B
Star washer
Left-hand
thread nut
2 x 16 Split
pin
