Agria 5300 - Mower Drive; Steering Bar

3
Devices and Operating Elements
22
Meadow mower agria 5300

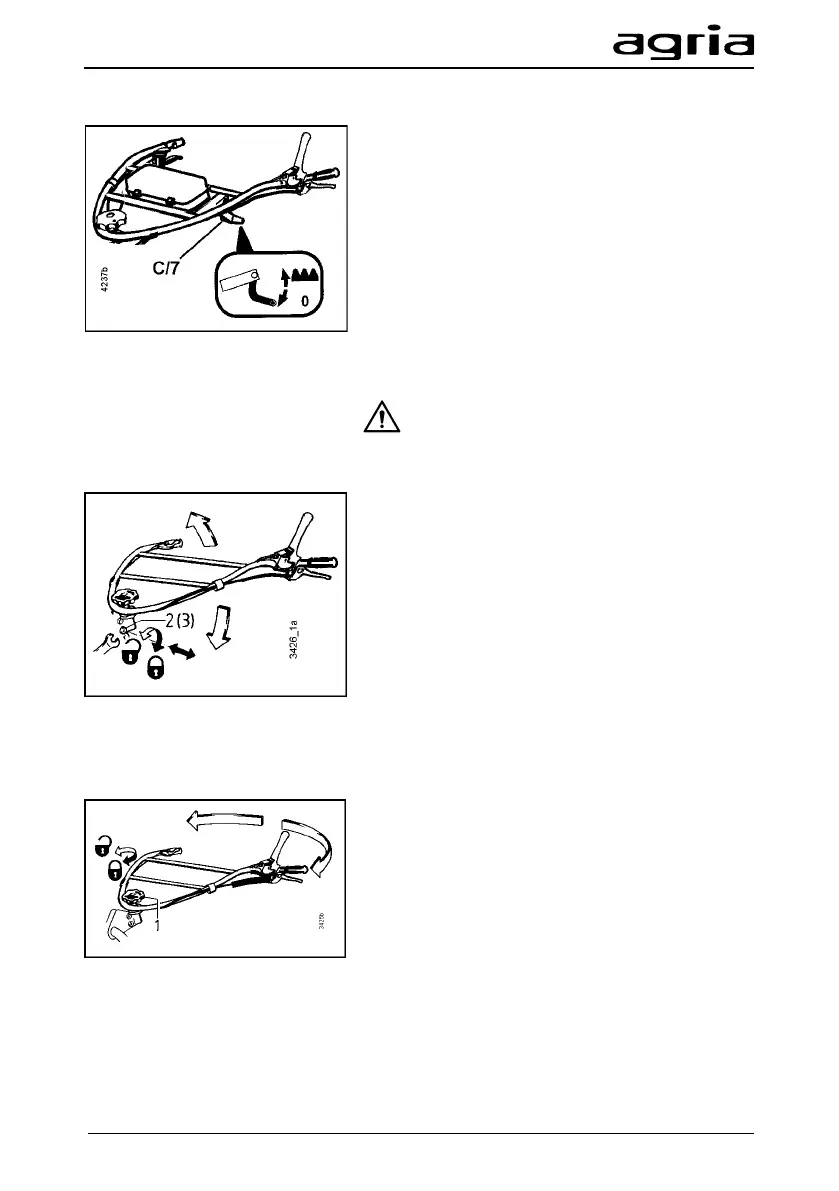

Mower drive
The mower knives are driven by a crank drive.
The mower drive is switched on/off at the shift
lever (C/7).
Switch the mower drive only when the clutch is
disengaged (neutral).
Steering bar
Adjust the steering bar only when trac-
tion drive and PTO drive are switched off
-
risk of accident!
Steering bar height adjustment
•
Unscrew the hexagon head screw (2) from
the square clamping piece (3) and pull it out
of the articulated bar element.
•
Adjust the handlebar to the desired level and
fit it into the matching hole in the articulated
bar element.
•
Insert the hexagon head screw. Screw it into
the square clamping piece (ensure that the
nose of the clamping piece is locked in th
e
oblong hole of the locating jaw of the articu-
lated bar element in the lower bar) and
tighten it.
Steering bar side adjustment
•
Release the grip screw (1) until the notches
are released.
•
Swing the steering bar to the required side,
and let it engage in the proper meshing.
• Tighten the grip screw.
