To enter C
2:
1. Turn CTW to 2 and then use DTW and Pb to enter the decimal and the number for each
digit in the same manner as you did for C
1.
4.4.4 Entering The Function Constant (C11)
1. Turn CTW to 11.
2. Turn DTW to 1 and enter the number of the function you have selected to send to Display
by pushing and holding the Pb until the number appears in the first Display digit.
3. Turn DTW to 2 and enter the number of the function you have selected to send to analog
output by pushing and holding the Pb until the number appears in the second Display digit.
4. Turn DTW to 3 enter the number of the function you have selected to send to setpoint 1
by pushing and holding the Pb until the number appears in the third Display digit.
5. Turn DTW to 4 enter the number of the function you have selected to send to setpoint 2
by pushing and holding the Pb until the number appears in the fourth Display digit.

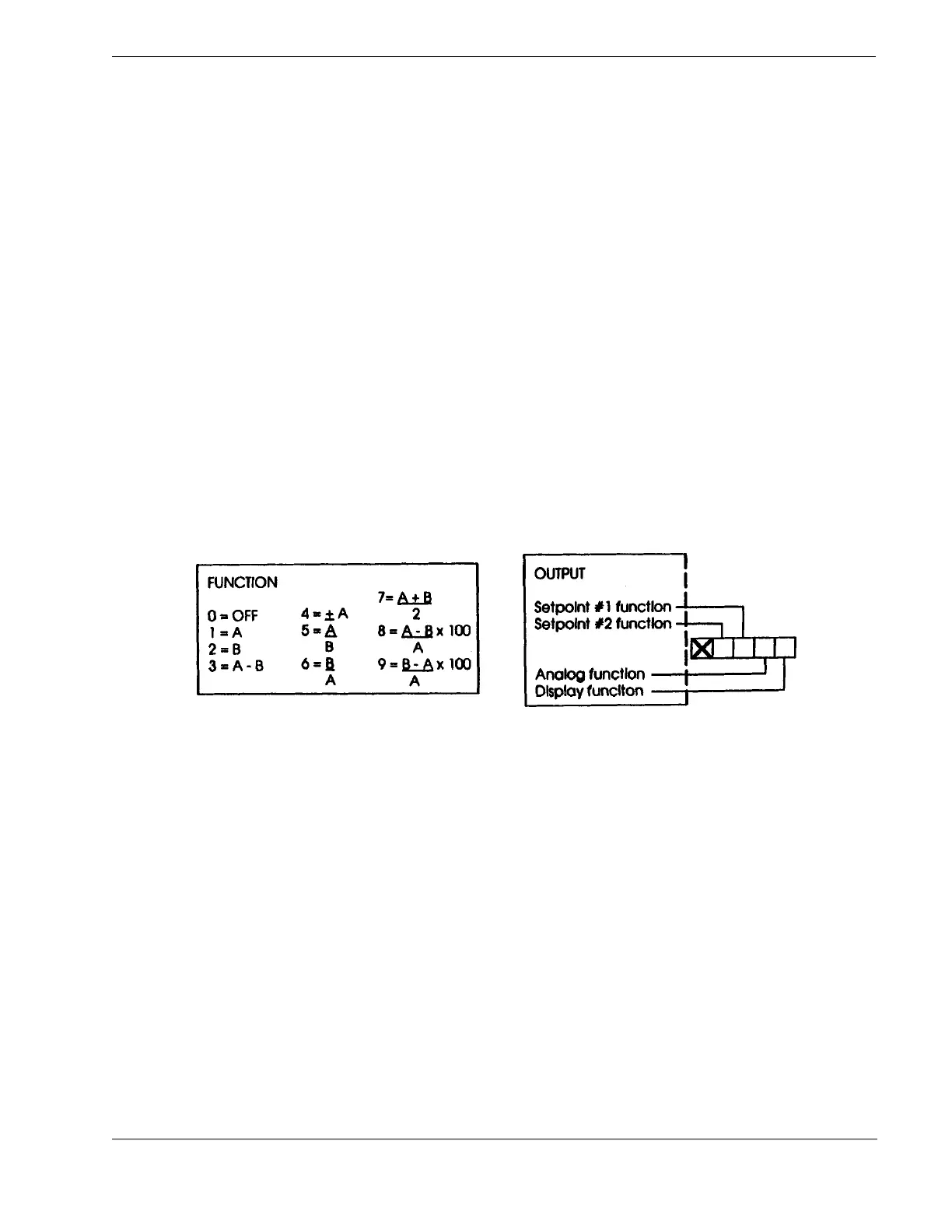

Select the number of the function from the
table on the left for each output.
Note: Set any unused output to “0” (off) for faster response.
4.4.5 Entering The Constants Which Define The Behavior Of The Outputs(C12)
Display Output
1. Constant
A. Turn CTW to 5.
B. Enter the constant by using the DTW and Pb in the same manner as you did for C1
thru C
4
2. Autoranging
A. Turn CTW to 12.
B. Turn DTW to 1.
15
C11
To Next Page
