C. Turn DTW to 1. Push and hold Pb until the value of the flrst digit appears in the first
Display digit.
D. Turn DTW to 2. Push and hold Pb until the value of the second digit appears in the
second Display digit.
C10
SPl
3. Relay Logic
A. Turn CTW to 12.
B. Turn DTW to 2.

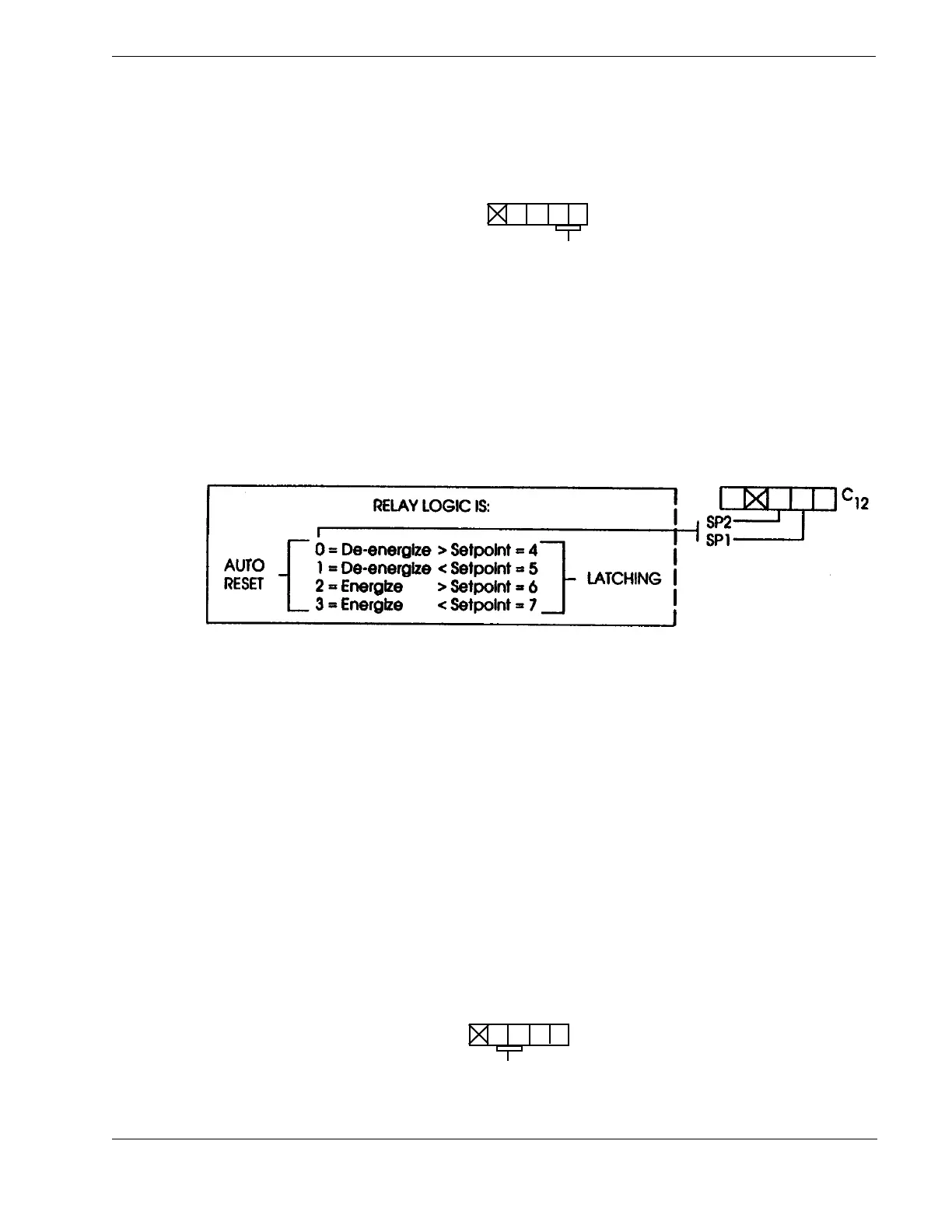

C. Select the Relay Logic from the chart below.
D. Push and hold the Pb until the number representing the logic you’ve selected appears
in the second Display digit.
Setpoint 2 Output
1. Setpoint Constant
A. Turn CTW to 9.
B. enter the constant using the DTW and Pb in the same manner as you did for C1 thru C8.
2. Hysteresis for Setpoint 2
A. Turn CTW to 10.
B. Enter the value of the hysteresis (given in percent) as a two digit number.
C. Turn DTW to 3. Push and hold Pb until the value of the first digit appears in the third
Display digit.
D. Turn DTW to 4. Push and hold Pb until the value of the second digit appears in the fourth
Display digit.
C10
SP2
17
