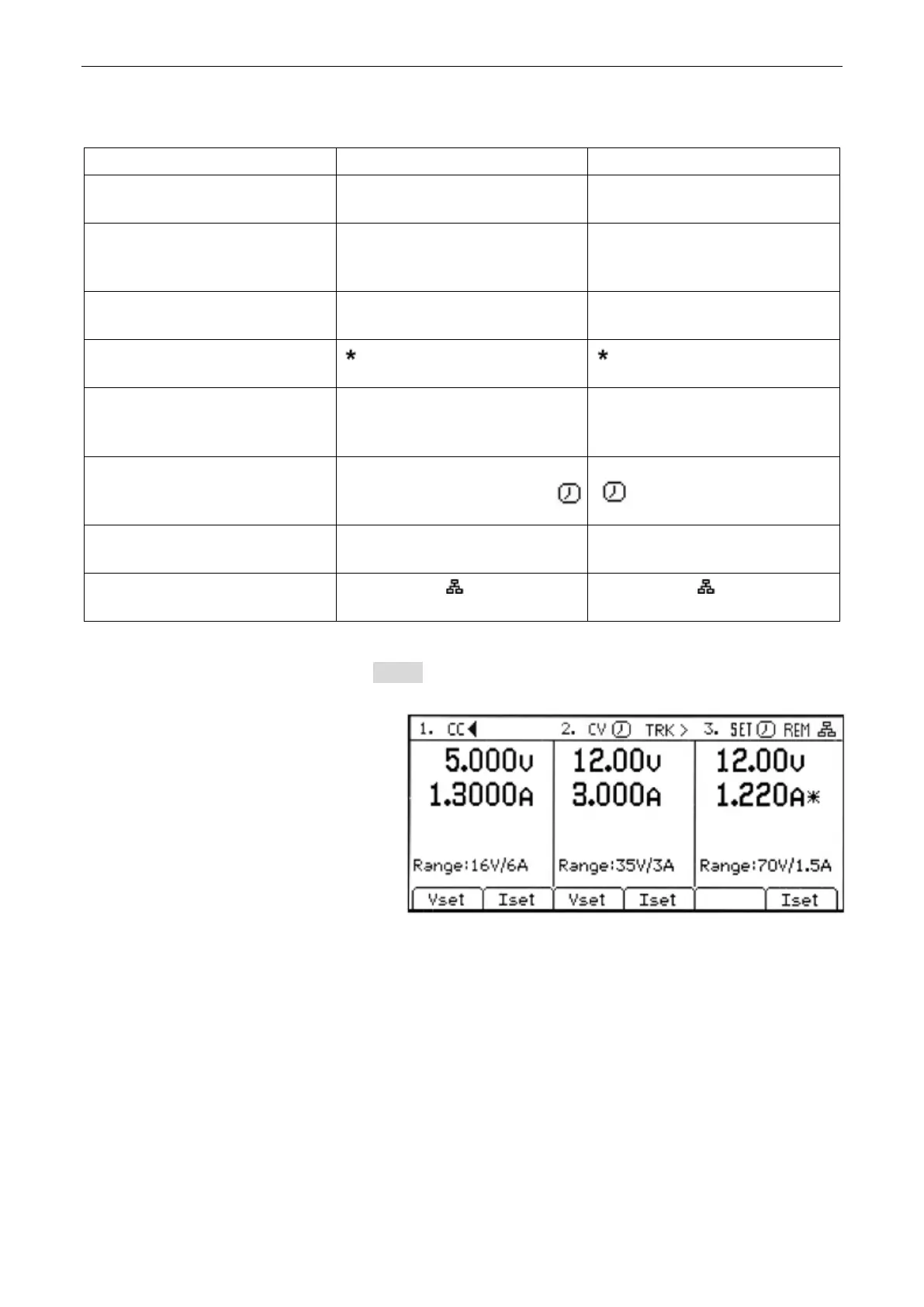

9 Display Symbols
Some functions are indicated by symbols or abbreviation on the display as follows:
Function
Home Screen
Individual Output Screen
Output on, constant voltage
mode
CV shown on the top line
next to the output number
CV shown on the top line
Output on, constant current
mode
CC shown plus flashing
arrow next to the output
number
CC shown plus flashing
arrow on the top line
Output off SET shown on the top line
next to the output number
SET shown on the top line
Current meter averaging on symbol after current meter symbol after current meter
(and Iavg ON in small font)
Voltage tracking TRK > shown on top line
between the Master and
Slave
V Track ON or OFF shown
on top line plus Master or
Slave
Multi-On/Multi-Off not set to
defaults (set to Delayed or
Never)
Clock symbol on top line next
to the mode indication
for the affected output
Clock symbol on top line
Power supply under remote
control (MX100TP only)
REM shown at top right hand
side
REM shown at top right hand
side
LAN connection status
(MX100TP only)
LAN symbol shown at top
right hand side. (see note)
LAN symbol shown at top
right hand side (see note)
Note that the LAN symbol changes to reflect the connection status. This is detailed within the
Remote Control pages - see section 12.2.4.
The example screen opposite shows
output 1 in constant current (CC)
mode, output 2 in constant voltage
(CV) mode and output 3 showing
settings (output off).
Output 3 is set to track output 2, and
outputs 2 and 3 have Multi-On/Multi-
Off not set to defaults.
Output 3 current meter has averaging
turned on.
