2 Product Description

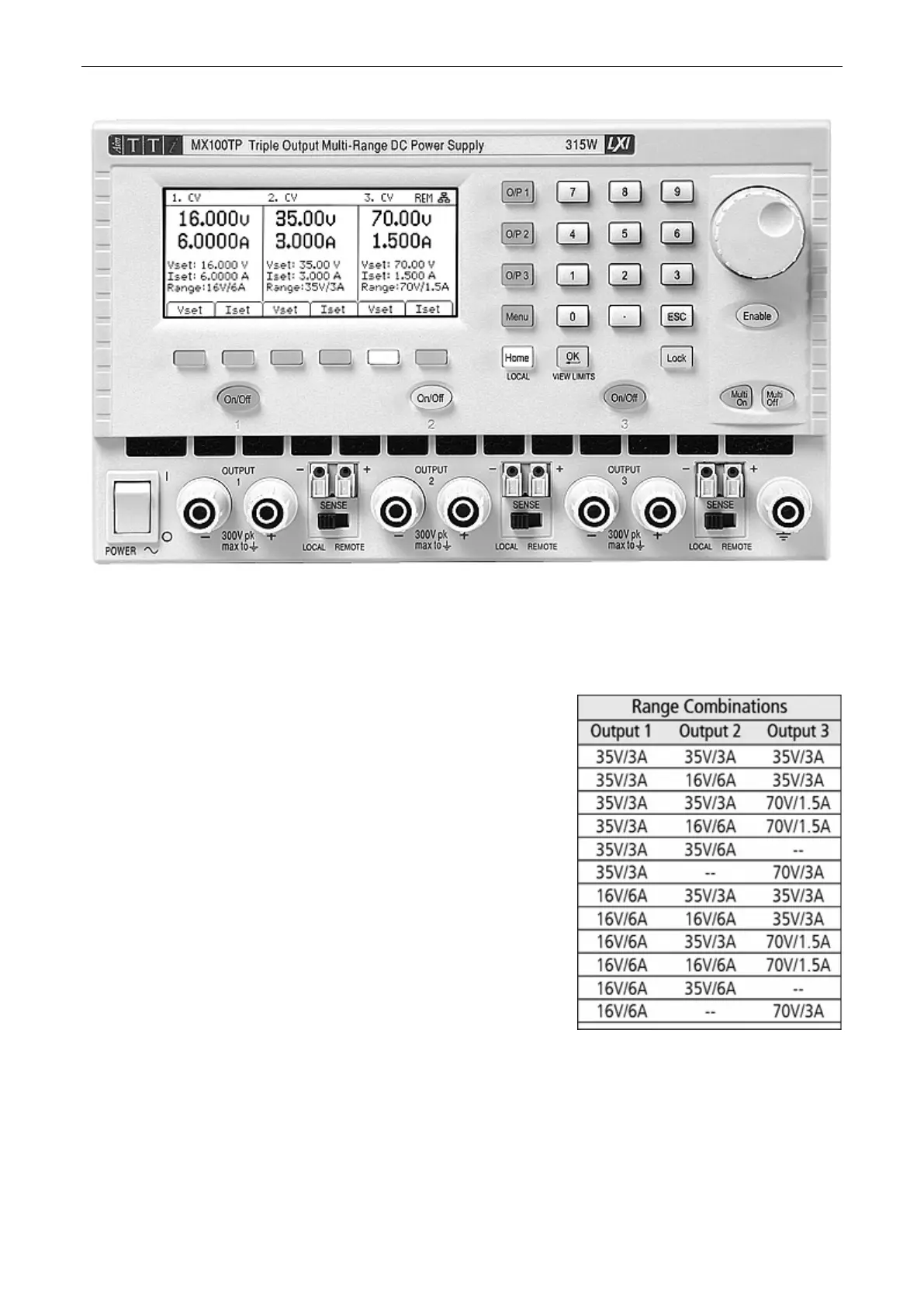

The MX100T is a triple output laboratory power supply incorporating three outputs of similar
power and features.
Each output can provide 0 to 35 volts at 0 to 3 amps (105 watts) with range switching extending
its capabilities to provide voltages up to 70V and currents up to 6A. Twelve range combinations
are available as shown in the chart.
Mixed-mode regulation is used which combines switch-
mode power conversion with linear final regulation to give
good noise and transient performance.
All information is displayed on a large backlit graphic LCD
and control is via soft keys together with a numeric keypad
and spin wheel.
Advanced features include 50 settings memories for each
output plus 50 further memories that record the settings for
all three outputs together.
Multi-On and Multi-Off keys supplement the individual output
On/Off keys and can be programmed to turn the outputs on
or off in a timed sequence.
The front panel can be locked to prevent accidental changes
to settings.
The power supply is housed in a compact half-rack width, 3U high case with front input
ventilation. An intelligent fan is used to minimise cooling noise.
The MX100TP has the same manual control features and adds USB, RS232, GPIB and LXI
compliant LAN interfaces together with duplicate power and sense terminals at the rear.
