14. EVO5 Pinout
Motorsport Connectors
PIN
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

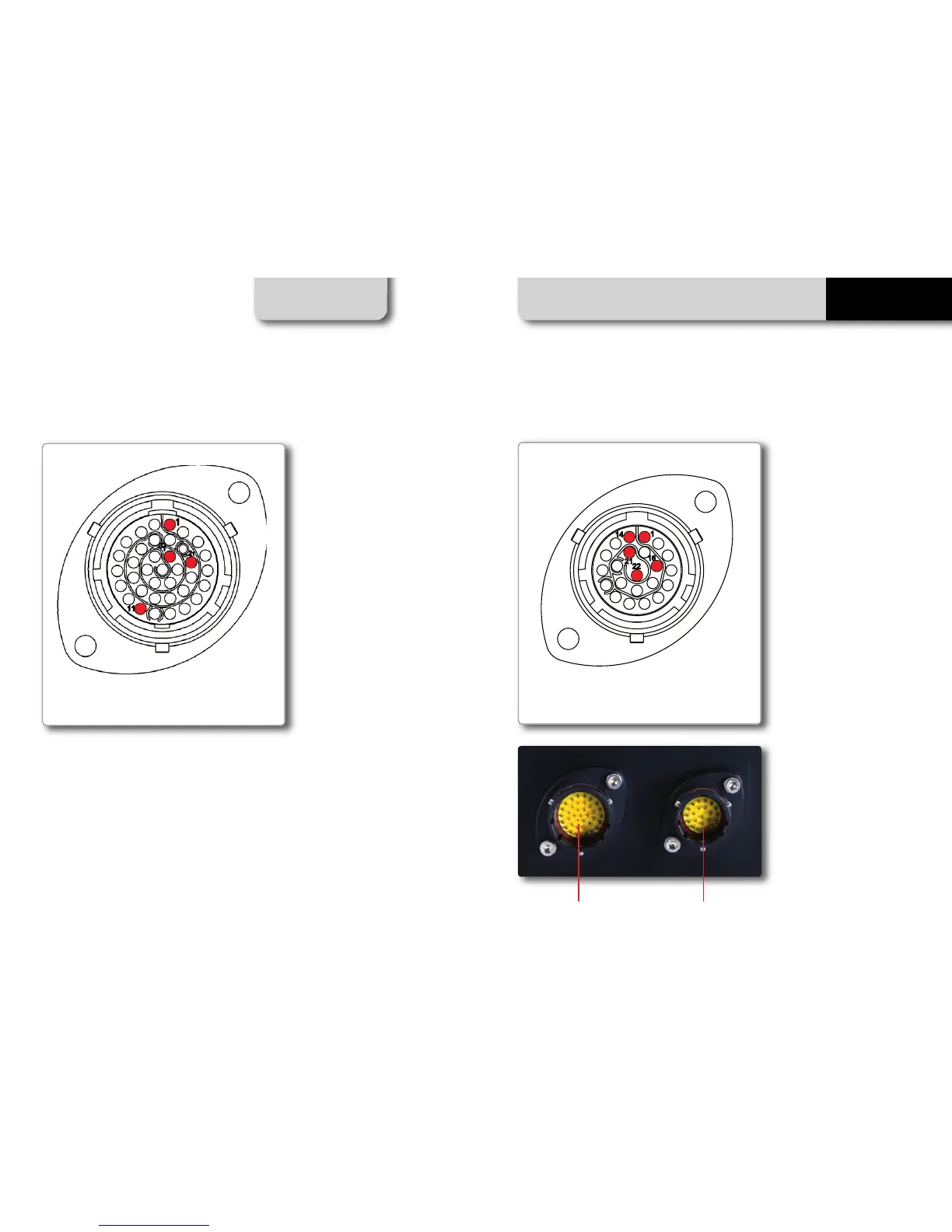

Deutsch 37pin
9-15V Power Input
Battery GND
CAN+ Exp
GND
+Vbattery CAN
CAN- Exp
+Vbext
CAN1+ ECU
CAN1- ECU
GND
K Line ECU
USB D+
USB D-
GND
RPM
GND
+Vbattery
Optical lap
Speed1
GND
+Vbattery
Analog Input 1
Analog GND
+Vbattery
+Vreference
Analog Input 2
Analog GND
+Vbattery
+Vreference
Analog Input 3
Analog GND
+Vbattery
+Vreference
Analog Input4
Analog GND
+
Vbattery
+Vreference
PIN
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
Deutsch 22pin
Analog Input 5
Analog GND
+Vbattery
+Vreference
Analog Input 6
Analog Input 7
Analog GND
+Vbattery
+Vreference
Analog Input 8
Speed2
GND
+Vbattery
Speed 3
Speed4
GND
CAN2+ ECU
CAN2- ECU
Digital output 1
Digital output 2
RS232TX ECU
RS232RX ECU
Deutsch 37pin Deutsch 22pin
