DIGITAL OUTPUT EVO5
You can configure them in order to turn
them on or off depending on the value of
the analog or digital inputs, ECU values, ex-
pansions values, GPS information or math
channels.
To each event you can associate an alarm
LED, a message and a digital output.
The system features two digital inputs on
the 22 pins connector.
Each of them can give an output of 1 amp
at 12 volts.
9. Digital output
Connecting examples
The digital output (Dout) is a LOW-SIDE
type with internal 10 Kohm weak pull-up
resistor.

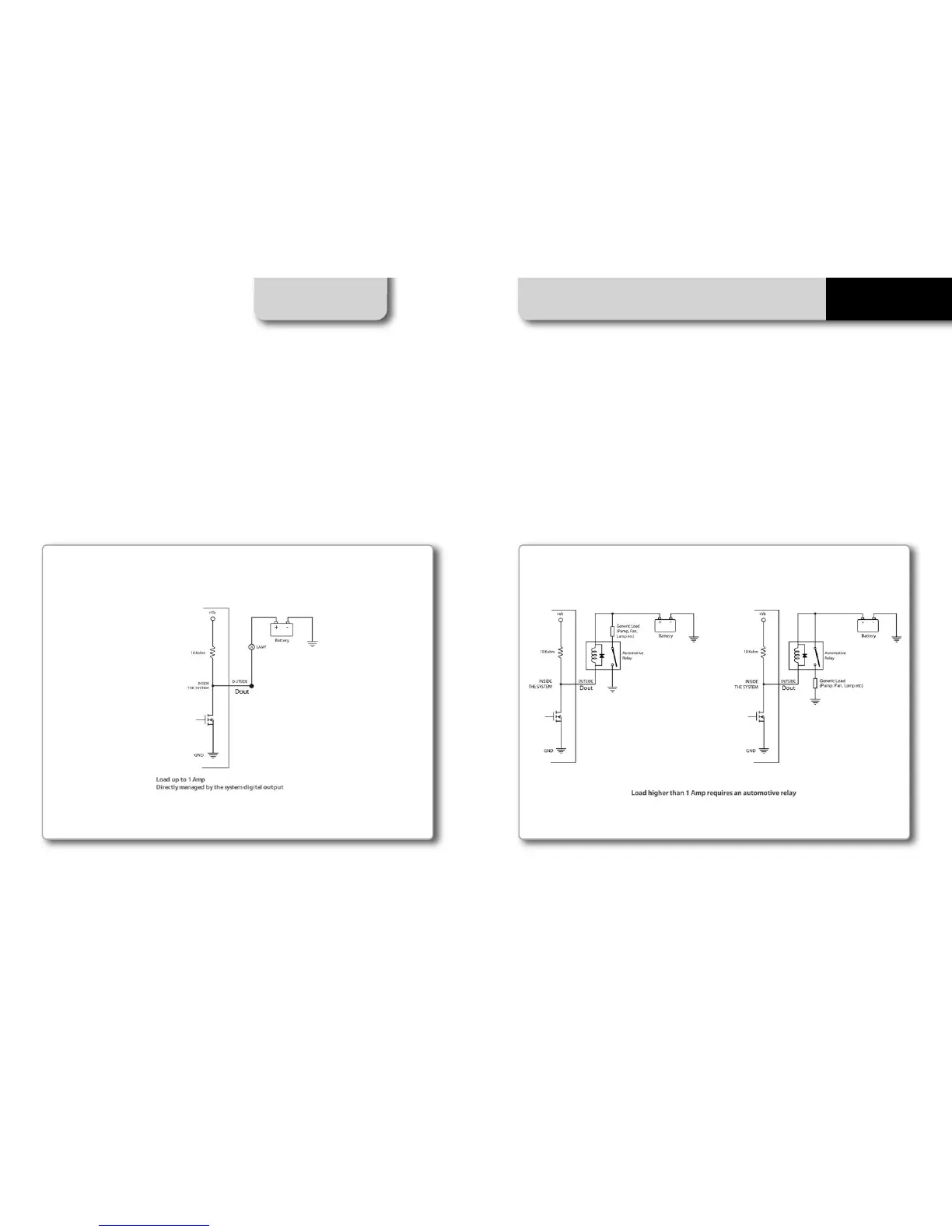

Here below are some connecting examples.
You can configure it in order to turn them
off when the condition disappears, when
you turn EVO5 off, when you push a
pushbutton or when the data are
downloaded. Please refer to the related
section in order to see how to use Race
Studio 3 to manage the Output Sign
als.
