Aiphone GH-1KD User Manual

- 14 -
3-5
3-6

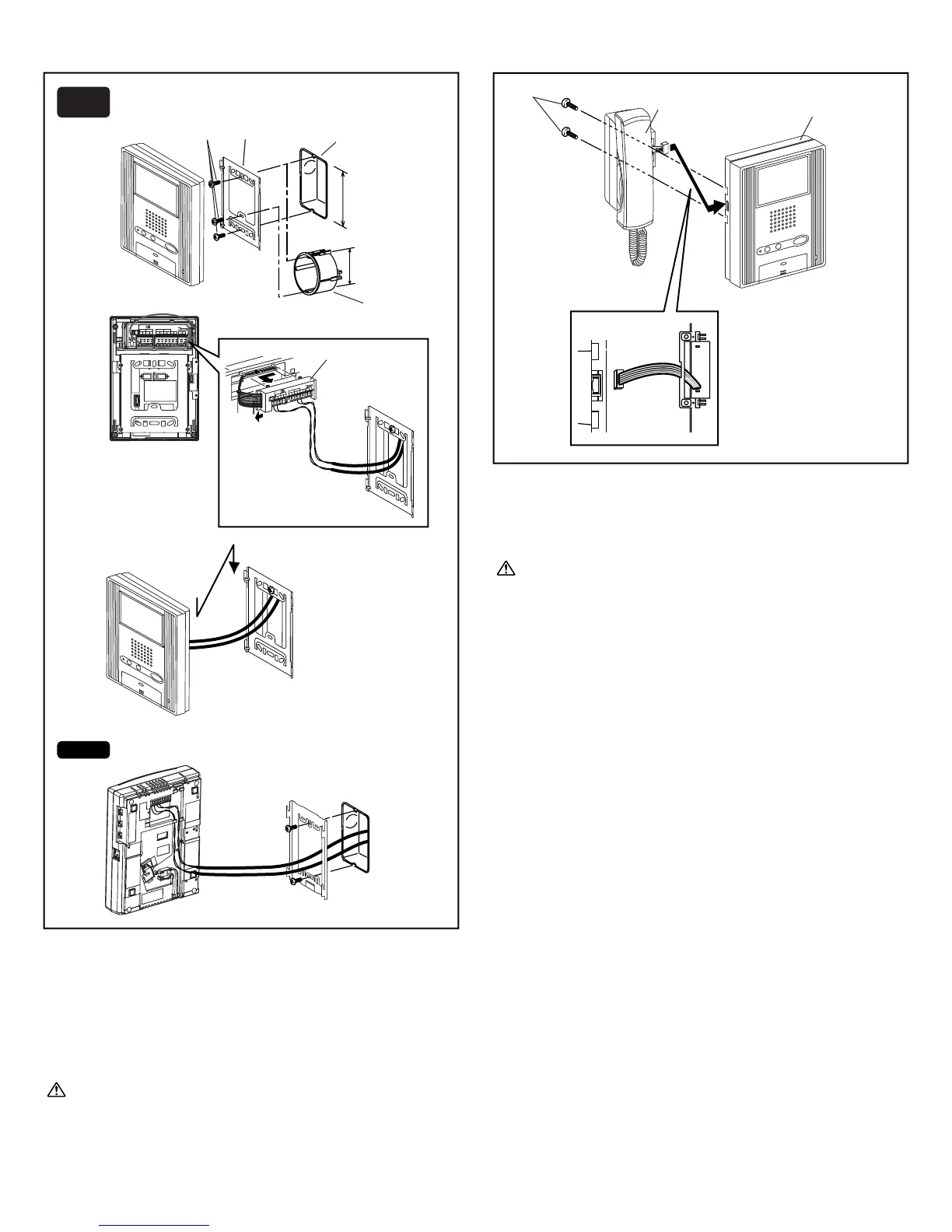

Residential Station
[1] Mounting screws (x2)
[2] Mounting bracket
[3] 1-gang box or round back box
[4] Terminal block (GH-1AD, GH-1KD)
1. Mount the mounting bracket on the 1-gang box.
2. Connect the wiring to the terminal block.
3. Mount the station unit to the mounting bracket.
Strip away the jacket of the cable and insert all wires into the
slots in an orderly fashion. Failure to do so could result in
pinching that may damage the wiring.
NOTE: To remove the terminal block, slide the terminal block
and pull it out. (GH-1AD, GH-1KD)
Optional Handset
[1] Chassis
[2] Handset (GH-HS)
[3] Screws (x2)
• Connect the station unit joint connector.
GH-HS can be installed only for the color monitor residential
station (GH-1KD).
SW1 A B
IN OUT
R1 R2 R1 R2 C
0.65 10 9
CE K KE
Do not remove the wires (For end users)
[3]
[3]
[2]
[1]
[4]
[1]
[2]
[3]
OR
60mm (2-3/8")
83.5mm (3-5/16")
1
2
3
SW
1
AB
IN
O
U
T
R
1R
2
R
1R
2
C
0
.
6
5
1
0
9
C
EK
K
E
D
o n
ot rem
ove the
w
ires (For end u
sers)
GH-1MD
GH-1AD
GH-1KD
