- 15 -

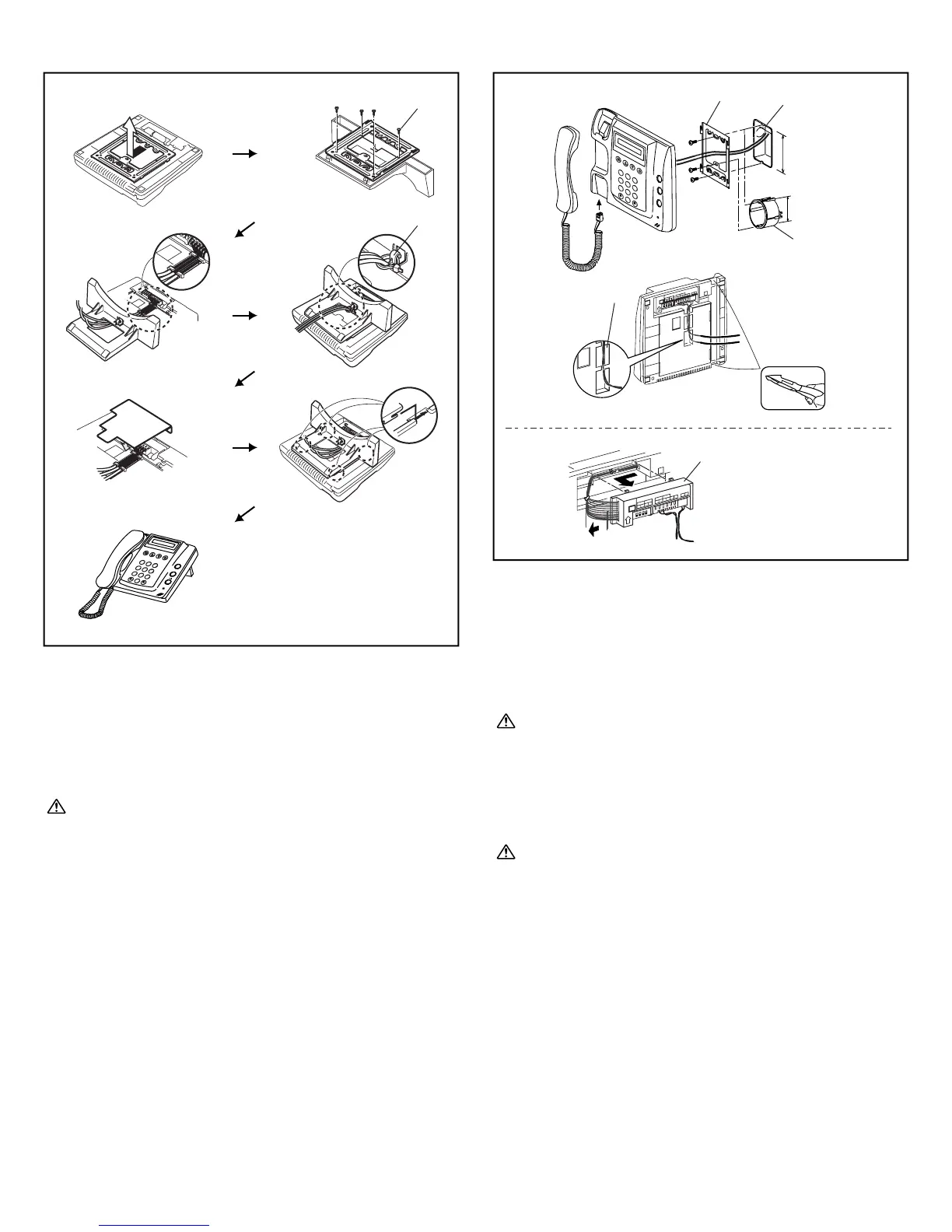

Security Guard Station (Desk-top Mounting Using GFW-S Stand)
[1] Screws included with GFW-S (x4)
[2] Cable tie included with GFW-S
1. Separate the mounting bracket and the protective cover from
the back of the unit.
2.
Mount the mounting bracket to GFW-S as shown in the drawing.
3. Connect the wiring to the terminal block, inserting the wires
into the slots in an orderly fashion.
Set the wiring in place with the cable tie to ensure that they
are not pulled out.
4. Cover the terminal section with the protective cover.
5.
Insert the mounting bracket latch and slide it upward until it locks.
Security Guard Station (Wall-mounting)
[1] 1-gang box or round back box
[2] Mounting bracket
[3] Wiring slot
[4] Terminal block
1. Mount the mounting bracket on the 1-gang box.
2. Connect the wiring to the terminal block.
3. Mount the station unit to the mounting bracket.
Strip away the jacket of the cable and insert all wires into the
slots in an orderly fashion. Failure to do so could result in
pinching that may damage the wiring.
NOTES: 1. To remove the terminal block, slide it to the left and
pull it out.
2. To wire along the main unit surface, use a nipper to
cut the section shown on the drawing.
Peel off protection film on display.
3-7 3-8
12
3
45
2
B
A
C
1
3
E
D
F
5
K
J
L
4
H
G
I
6
N
M
O
8
U
T
V
7
R
Q
P
S
Y
X
W
Z
9
0
OR
60mm (2-3/8")
83.5mm (3-5/16")
2
B
A
C
1
3
E
D
F
5
K
J
L
4
H
G
I
6
N
M
O
8
U
T
V
7
R
Q
P
S
Y
X
W
Z
9
0
[1]
[2]
[1]
[2]
[3]
[1]
[4]
