GUARD STATION
Button operations
1-4
Multi-function buttons
Functions shown by icons here can be performed by
pressing the buttons just below the icons. The icons vary
depending on the status of this station.
When the same icon as the icon above a button is
displayed, the button performs the function shown by the
button name.
Turns on the light at an entrance station.
Starts communication with the preset
entrance station, or displays video from a
surveillance camera.
Displays the setting screen.
Displays the search item list.
(e.g.)
Pressing
adjusts receive volume ( ).
(e.g.)
Pressing
restores the previous screen ( ).
Icon Function
1
Determines the choice.
Turns the entrance light on (when light is installed in
common area).
Adjusts brightness.
Turns off the emergency alarm.
2
Calls the selected unit.
Transfers a call from entrance station to residential/tenant
station.
Adjusts call tone volume.
Turns off overlay.
Calls the preset entrance station directly.
Deletes the selected item.
Icons and their functions
Icons and their functions for each multi-function button are as follows.
1
4
23
Icon Function
3
Changes the 10-key to the letter entry mode.
Changes the 10-key to the number entry mode.
Displays the search item list.
Adjusts receive volume.
4
Restores the previous screen.
Displays the setting screen.
Cancels the choice.

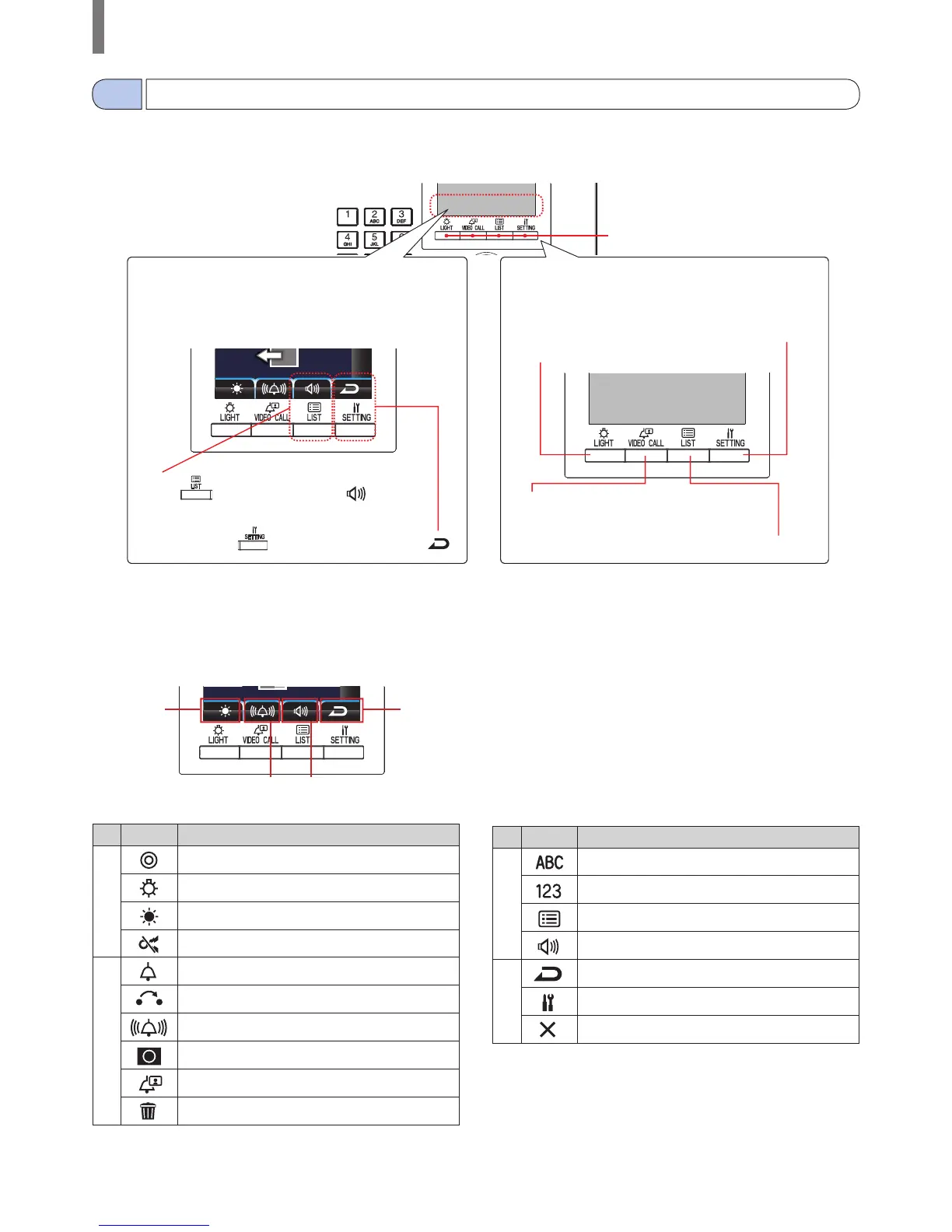

■ Multi-function buttons and icons
The functions to be performed by the multi-function buttons are displayed by icons just above the buttons.
