Aiphone IS SERIES Quik Start Programming Guide

HOW TO USE THIS GUIDE
This guide is intended to be used for a single site IS-IP system running on a IPV4 network that includes IS-IP door
stations, IS-IPMV master stations, and IS-SOFT PC master stations.
Note: Refer to the IS-IP Standard Setting Manual when using a IPV6 network, the IS-IPC, or when multiple
sites are required.
Terminology
Step 1: System Layout
Area AnAreadenesalocationdescriptiontoacommongroupofstations.Example:“HighSchool,”
“FrontOfce,”or“Warehouse.”
Site ASiteinanISsystemisaLANwhichcontainsasingleHostandupto31Clients.Whilethe
ISsystemcanhaveupto32Sites,thisguideonlycoversasingleSitesystem.
Host AHostistheunitinanISSitecontainingacongurationleusedtocontrolhoweachdeviceinthe
Sitebehaves.AnyIS-IPDV,IS-IPDVF,IS-IPMV,orIS-IPC(notcoveredinthisguide)canbeaHost.
Client AClientisaunitinanISSitethatdoesnotcontainacompletecongurationle,andreliesontheHost
for operational instructions. Any IS-IPDV, IS-IPDVF, IS-IPMV, IS-SOFT, or IS-IPC can be a Client.
DHCP
DHCP(DynamicHostCongurationProtocol)allowsallDHCPcongureddevicestoaskforanIPaddress
whenitpowerson.InthecontextofanISsystem,ClientsmaybeDHCP,butaHostshouldalwaysbe
Static.DHCPwithareservationconguredbytheDHCPserverispossible,butnotrecommended.
LAN ALAN(LocalAreaNetwork)istypicallymanagedbyaDHCPenabledrouter.Anythingconnectedtothe
WANportoftherouterisconsideredoutsidetheLocalAreaNetwork.Whiletherearenumerouswaysof
connecting multiple LANs together, the only supported network layout for this guide is a LAN or a VPN.
VPN A VPN (Virtual Private Network) is a method of allowing two isolated LANs to communicate with each
other through a public network without losing privacy. For the purposes of the IS system, it can be
considered a single LAN.
IGMP IGMP (Internet Group Management Protocol) is the protocol used by Multicasting systems, including
the IS system. This protocol must be supported by and enabled on the networking hardware.
Multicast Multicasting is a method of communicating a single stream of information, such as video or paging
announcements, from a single host to many hosts. This saves bandwidth compared with sending the same
packets to each recipient one at a time. The IS system uses Multicast for video during the call-in, but not
when a master monitors the door (since it is the single recipient when the MONITOR button is used).
Choose an IS-IPDV, IS-IPDVF, or IS-IPMV to be the Host. All other devices will be set as Clients.Thenalnetwork
needs to be a LAN or a VPN that supports Multicast. To program, use a network switch and CAT-5e cable to connect
thePCtoeachdeviceoneatatime.WhenusingaPoEswitch,an802.3afcompliantPoEClass0switchisrequired.
2 | IS Series IP Direct System Programming Guide
IMPORTANT:
Whenchangesaremadewhileprogramming,click
Temporarily stored
to save data prior to leaving each screen.
The saved data will be applied to the system when the system is updated.
General Precautions
PoESwitch

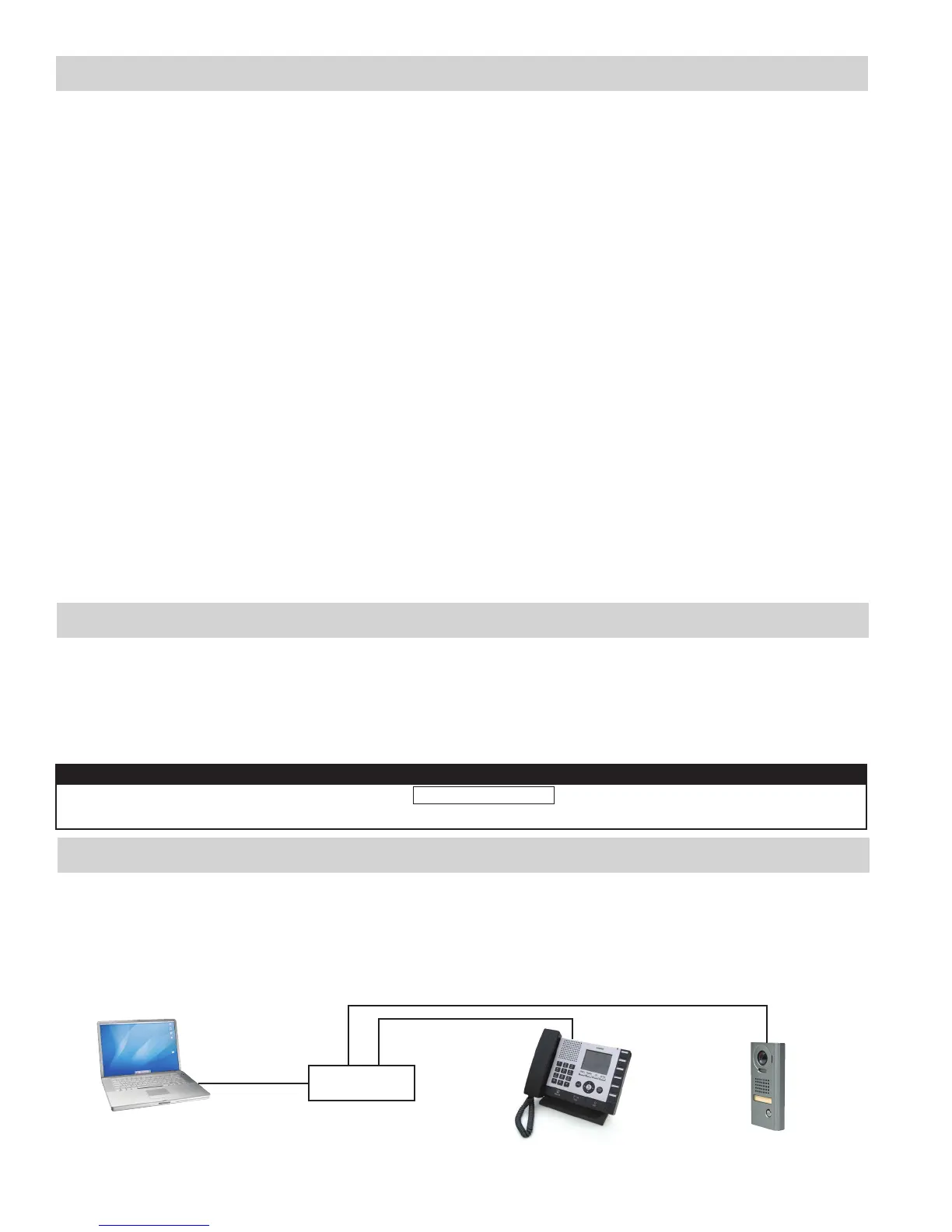

Wiring Example:
Programming PC
IS-IPMV-Host IS-IPDV - Client
802.3afcompliant
Class 0
