Aiphone IS SERIES Quik Start Programming Guide

Step 8: Registering Stations
Step 9: Advanced Station Settings
D. Click
Port number auto-setting
toassigntherequiredportstoallstationsthatneedtocommunicate
(see Figure 7.3).

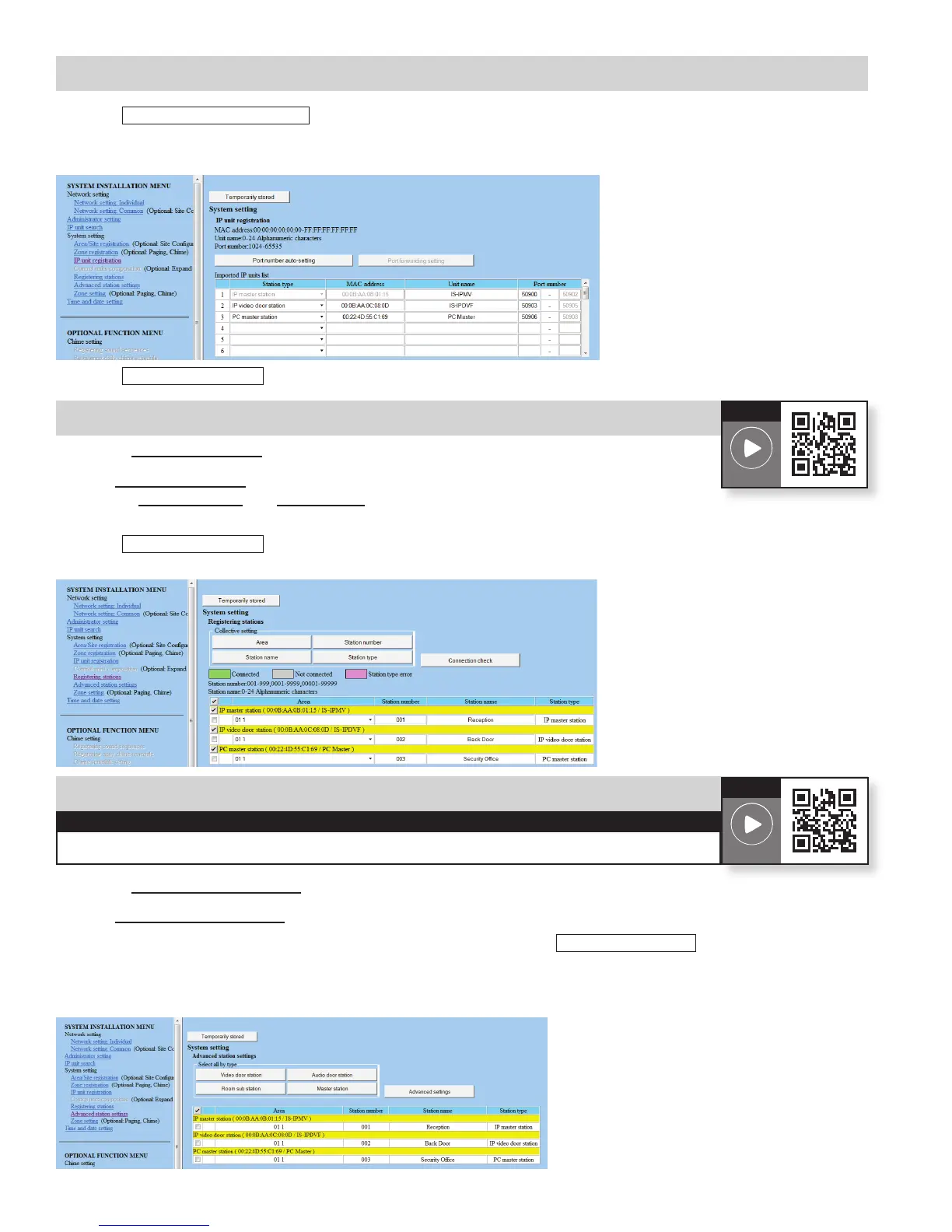

Figure 7.3: Port Number Auto-setting
Figure 8.1: Registering Stations
Figure 9.1: Advanced Station Settings
A. Select Registering stations from the menu on the left.
B. The Registering stations table will be populated based on the settings made in Step 7.
 EnteraStation number and Station nameforeachdoor/masterunit(seeFigure 8.1).
(Stationnumbermustbebetween3and5digitsandisrequired)
C. Click
Temporarily stored
to save changes.
A. Select Advanced station settings from the menu on the left.
B. The Advanced station settings table is populated based on the stations registered in Step 8 (see Figure 9.1).
C. Toprogramadoorstation(s),checkthecorrespondingboxandclick
Advanced settings
.
A new window will open.
6|ISSeriesIPDirectSystemProgrammingGuide
How-To
Video Link
How-To
Video Link
IMPORTANT:
Advancedstationsettingsisarequiredsteptocompletetheprogrammingprocess.
E. Click
Temporarily stored
to save changes.
Step 7: IP Unit Registration - Host (cont.)
