- 16 -
■ IXGW-LC

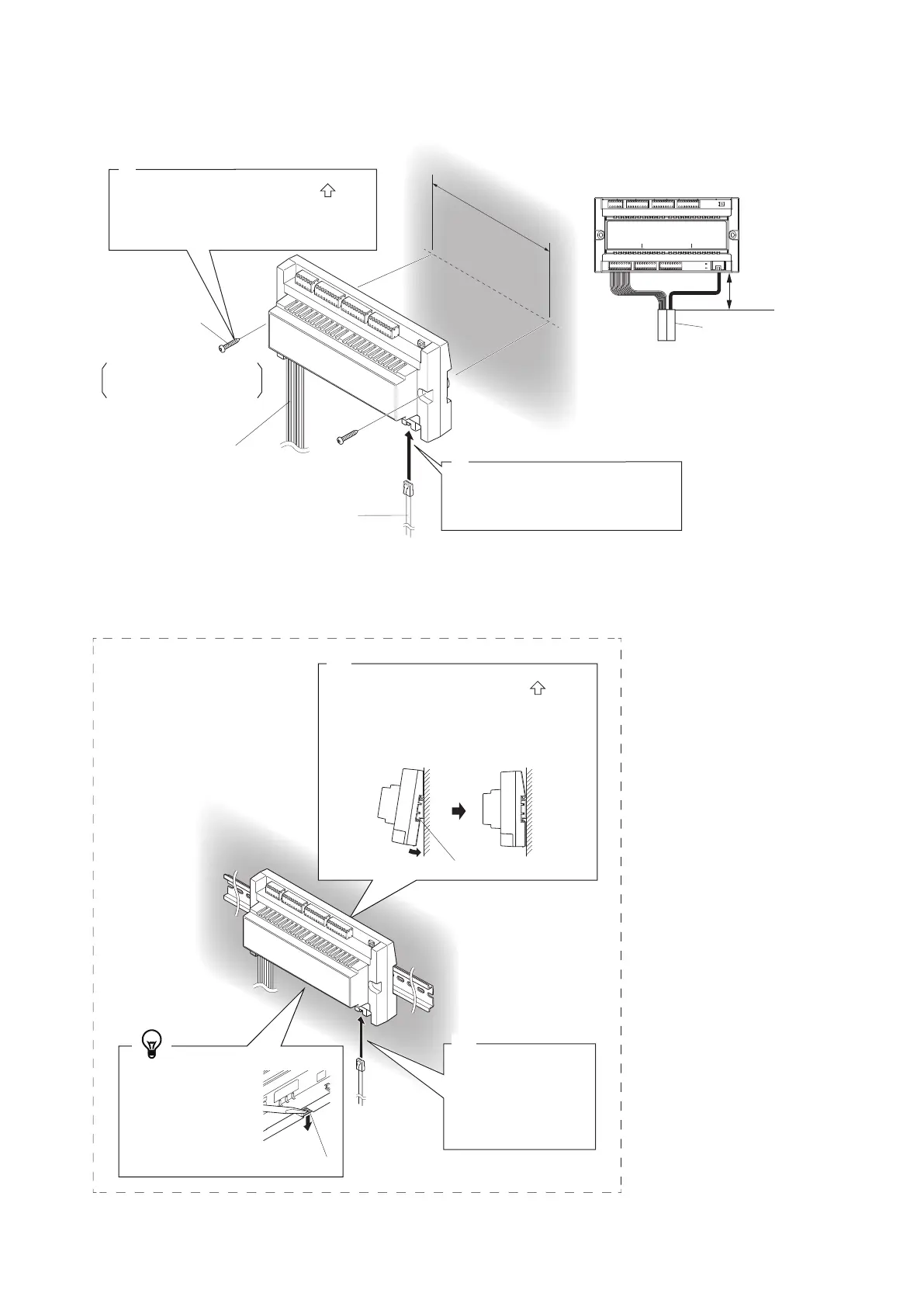

● Mounting the adaptor directly to a wall
2
1
Position the adaptor with "UP "
facing up, and attach the adaptor to
the wall.
Insert the Cat-5e/6 cable and the
low-voltage lines to the adaptor.
Wall-mounting wood
screws × 2 (not included)
191.5mm (7-9/16”)
Screw shaft: φ4.1 or less
Slotted head: φ8.2 or less
Cat-5e/6 cable
Low-voltage lines
Wire mold
Use a covering duct for Cat-5e/6 cable
and low-voltage lines, and leave a
space (exposed portion) of no more
than 80mm (3-1/8'') between the
adaptor and the covering duct.
80mm (3-1/8'')
or less
2
1
Position the adaptor with "UP "
facing up, and mount the adaptor on
the DIN rail and then click the adaptor
into place.
DIN rail is not included.
When removing
the adaptor, pull
the lock release
lever down.
Insert the Cat-5e/6
cable and the low-
voltage lines to the
adaptor.
DIN rail
Mounting the adaptor on the DIN rail
Lock release lever
To Next Page
