■ IXG-DM7, IXG-DM7-HID
● Mounting positions and image view area
• Follow the applicable laws and regulations for mounting location.

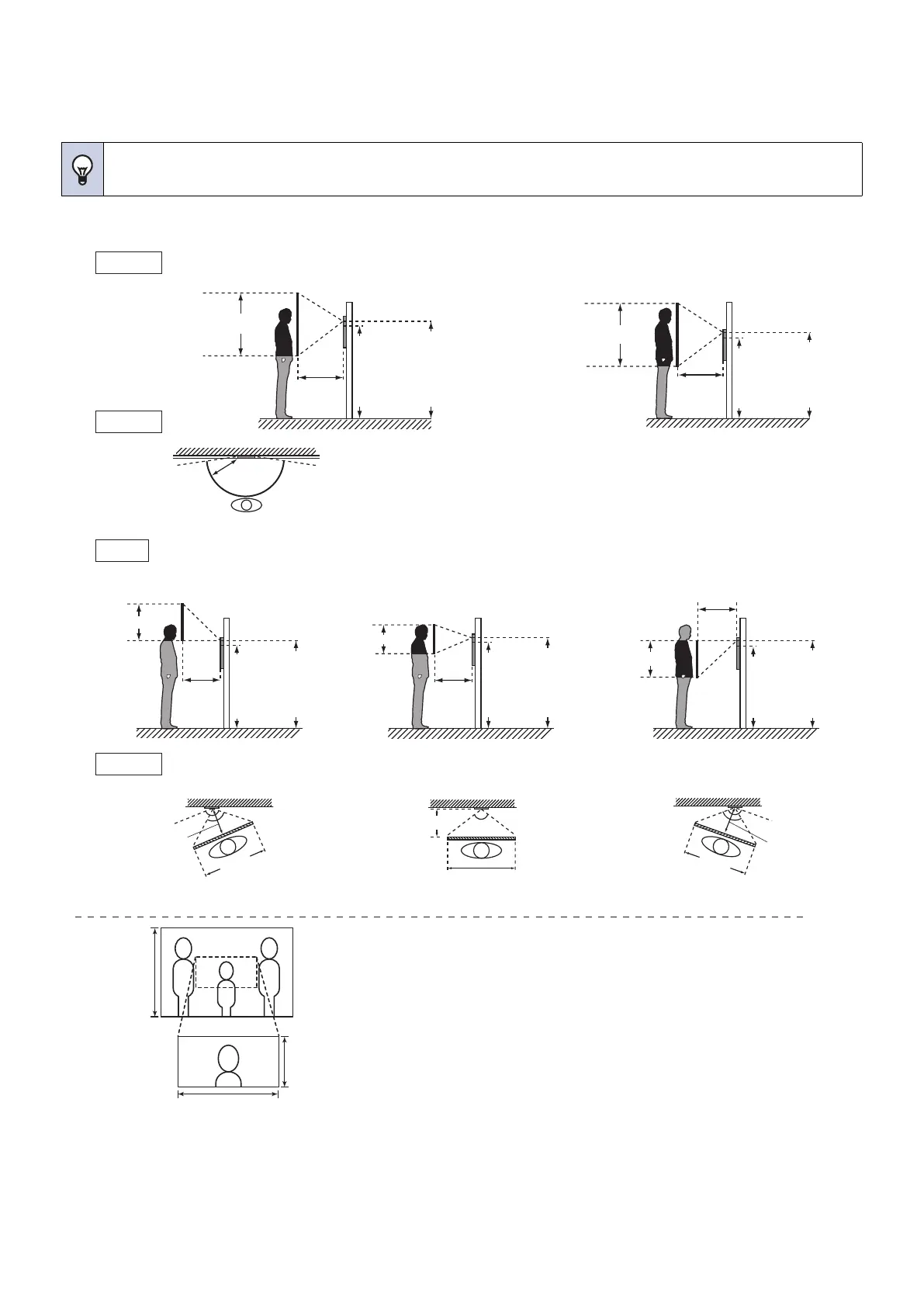

Wide view
When light enters the camera, the monitor screen may flicker brightly or the subject may become dark. Try to prevent strong lighting from entering
the camera directly.
Wide view
Vertical
Mounting position 1,500 mm (4' 11")
Camera
position
1,500 mm
(4' 11")
Center of
device
1,380.5 mm
(4' 6")
500 mm
(1' 7")
900 mm (2' 11")
1,150 mm (3' 9")
2,050 mm (6' 8")
Mounting position 1,300 mm (4' 3")
Camera
position
1,300 mm
(4' 3")
Center of
device
1,180.5 mm
(3' 10")
500 mm
(1' 7")
700 mm (2' 3")
1,150 mm (3' 9")
Horizontal
170°
500 mm
(1' 7")
An area over a range of approx. 170° in a 500 mm (1' 7") radius from the camera
displays. (The display range is a rough estimation and may change due to the
installation environment and the specification of the monitor.)
Zoom view
Vertical (with mounting position of 1,500 mm (4' 11"))
Up
Center
Down
Center of
device
1,380.5 mm
(4' 6")
Center of
device
1,380.5 mm
(4' 6")
Camera
position
1,500 mm
(4' 11")
500 mm
(1' 7")
1,400 mm
(4' 7")
750 mm (2' 5")
2,150 mm
(7' 0")
Camera
position
1,500 mm
(4' 11")
Center of
device
1,380.5 mm
(4' 6")
500 mm
(1' 7")
1,150 mm
(3' 9")
650 mm (2' 1")
1,800 mm
(5' 10")
500 mm (1' 7")
Camera
position
1,500 mm
(4' 11")
800 mm
(2' 8")
750 mm (2' 5")
1,550 mm
(5' 1")
Horizontal
Left Center
Right
1,200 mm (3' 11")
500 mm (1' 7")
140°
(※1)
100°
500 mm (1' 7")
105°
1,300 mm (4' 3")
100°
1,200 mm (3' 11")
500 mm (1' 7")
140°
(※1)
(※1): Zoom view range is approx. 140° at 500 mm (1' 7") distance from the camera.
1,150 mm
(3' 9")
[Vertical center]
650 mm (2' 1")
1,300 mm (4' 3")
Wide View
The default is "Wide View".
Zoom View
The zoom position can be changed.
The dimensions are approximate in this page.
1,850 mm (6' 0")
